SLC Typed Write - Set Receive Produced Sequence Number Message - SLC PLC
5.4.6.5. SLC Typed Write - Set Receive Produced Sequence Number Message - SLC PLC

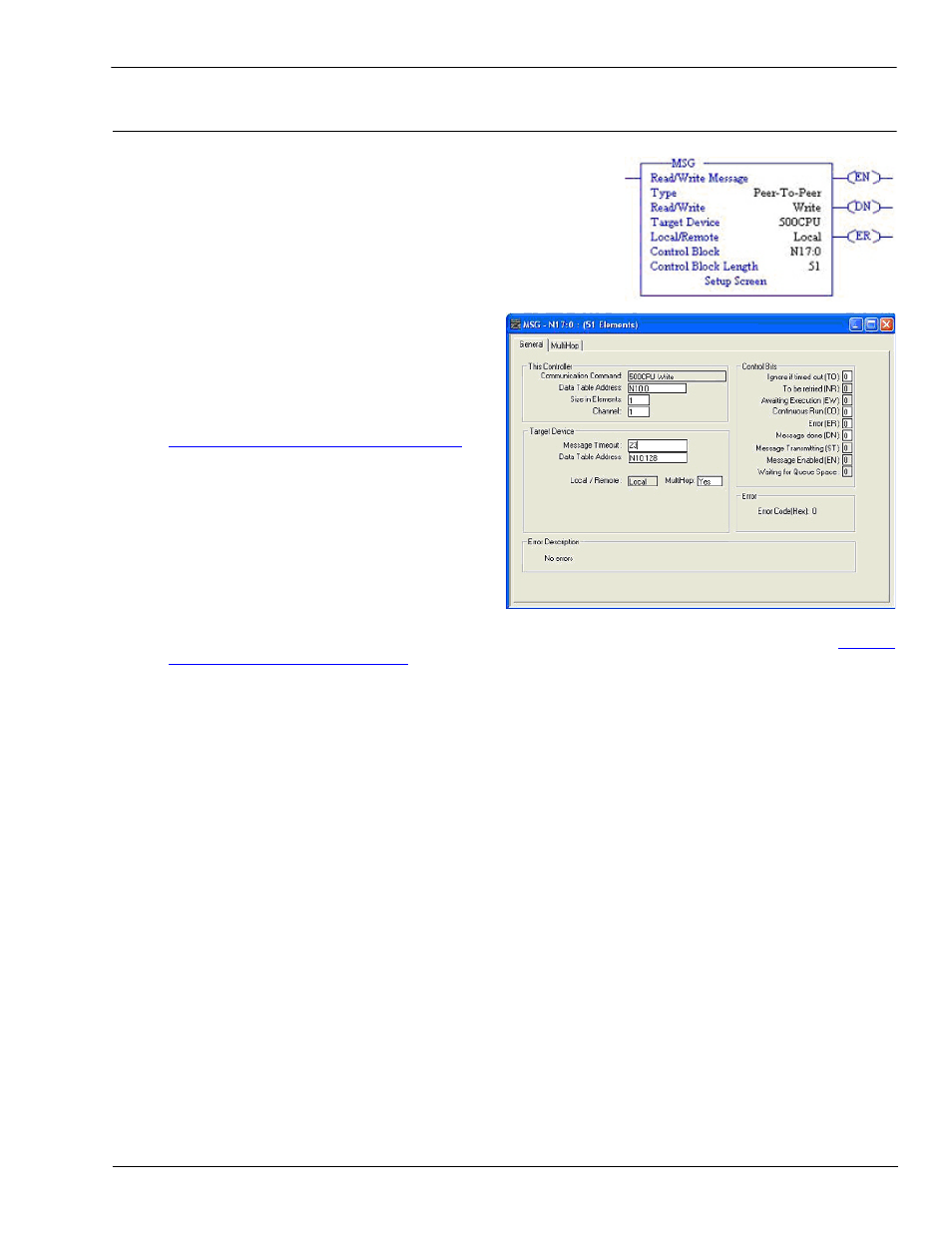

The following screen depicts an SLC Typed Write - Set Receive
Produced Sequence Number message in ladder logic.
Make the following changes to the ladder logic.
1.
Select the Write option.
2.
Select the 500CPU option.
3.
Select Local.
4.
Assign a dedicated integer file of 51 integers to the Control block.
5.
In the ladder logic, double-click the Setup Screen
in the MSG instruction.
6.
Make the following changes.
a.
Specify the file address where the receive
sequence number resides in the Data Table
Address box on This Controller panel. For
more information on file addresses, see
2.4.2.1. DeviceMaster UP File Addressing
b.
Type 1 in the Size of Elements box.
c.
Set the Channel parameter to 1 to use the
Ethernet port.
The Message Timeout parameter is not
actually configurable. RSLogix 500 sets the
value in this box based on the Ethernet
timeout settings.
d.
Specify the port-specific receive sequence
file address for the DeviceMaster UP in the
Data Table Address box on the Target Device panel. For more information on file addresses, see
DeviceMaster UP File Addressing
e.
Set the MultiHop option to Yes.
