Chapter 5. Programming the PLC
DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L
Configure and Run the RSLogix 500 Example Program - SLC PLC
7.
Click Submit.
5.4.5. Configure and Run the RSLogix 500 Example Program - SLC PLC
You can configure and run the RSLogix 500 example programs through RSLogix 500. For additional
information on the RSLogix 500, see
5.4.6. RSLogix 500 Screen Examples - SLC PLC
Note: Configure the DeviceMaster UP before you configure and download the RSLogix 500 example program.
For instructions on configuring DeviceMaster UP, see
5.4.4. Configure the DeviceMaster UP for the
RSLogix 500 Example Program - SLC PLC
, earlier in this chapter.
1.
Select the appropriate message type example programs (SLC or PLC-5 typed messages) and copy the files
(.SLC, .SY5 and .SY6) to the desired directory.
2.
Start RSLogix 500 and open the .SLC file through RSLogix 500.
3.

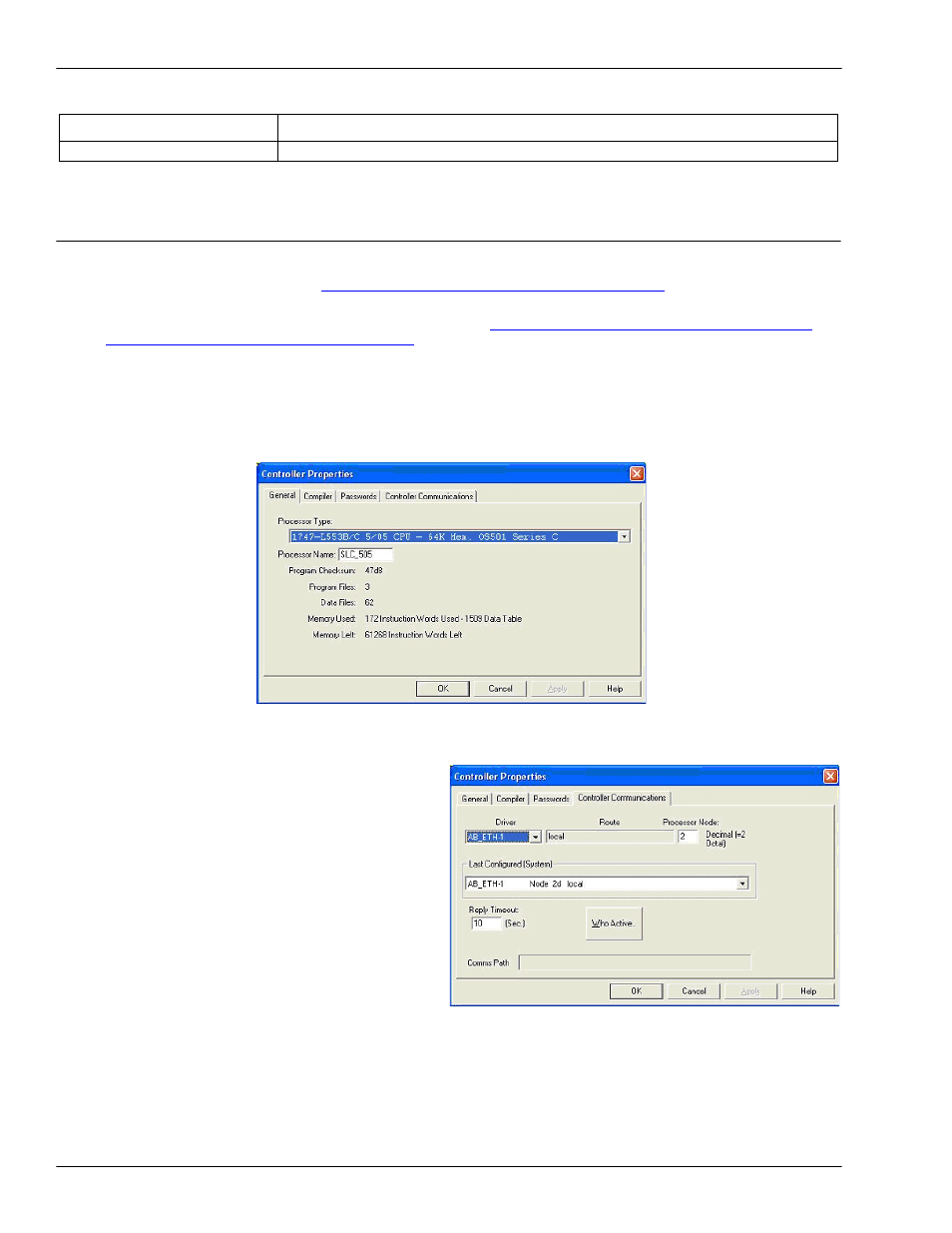

To modify the PLC program for your system, double-click Controller Properties.
4.
In the General tab, select your SLC processor type under Processor Type and provide a Processor Name.
5.
Select the Controller Communications tab and select the following options:
a.
Set Driver to the appropriate type to allow RSLogix 500 to communicate with the SLC processor.
b.
Type the processor node number in the
Processor Node box. (You may reference the
Last Configured (System) node or select Who
Active.)
6.
Click OK to apply your changes and close the
Controller Properties dialog.
7.
Double-click Processor Status, select the Chan 1
tab on the Data File S2 -- STATUS dialog and
verify the following:
a.
DH485 Gateway Disable Bit S:34/0 option is
set to 1.
b.
DF1 Gateway Enable Bit S:34/5 option is set to
0 (zero).
c.
Comms Servicing Sel S:2/15 option is set to 1.
d.
Msg Servicing Sel S:33/7 option is set to 1.
8.
Close the Data File S2 -- Status dialog.
9.
Double-click I/O Configuration and select your chassis type in the Racks panel.
10. Close the I/O Configuration dialog.
Save in Flash
Select.
Field
Selection
