PLC-5 Typed Read - Receive Data Message
5.5.10.8. PLC-5 Typed Read - Receive Data Message

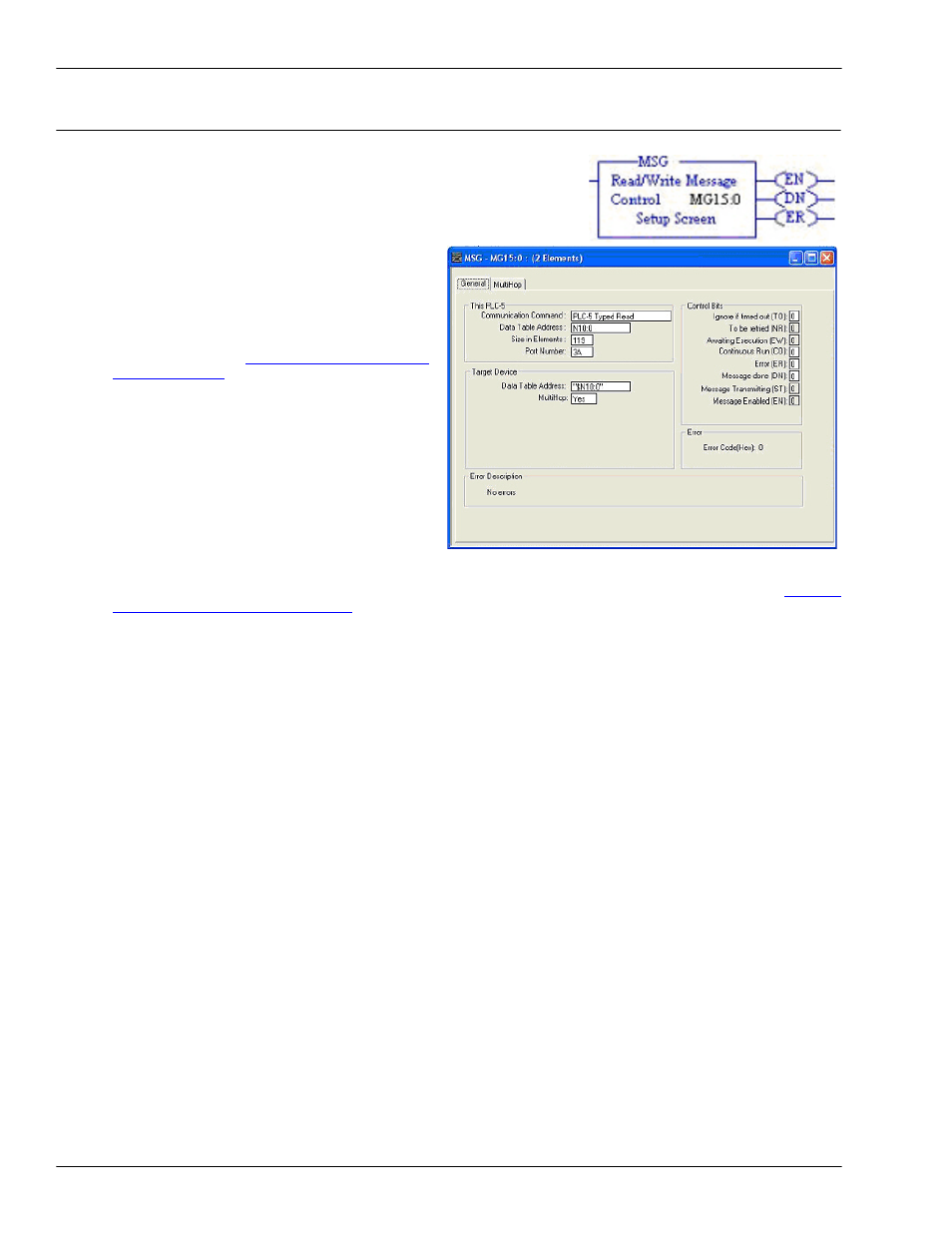

The following screen depicts a PLC-5 Typed Read - Receive Data
message in ladder logic.
1.
Assign a dedicated message file to the Control block in the ladder
logic (as shown above).
2.
In the ladder logic, double-click the Setup Screen
in the MSG instruction.
3.
Make the following changes:
a.
Specify the file address to receive data
information in the Data Table Address box on
This PLC-5 panel. For more information on
file addresses, see
b.
Specify a size in the Size of Elements box that
is large enough to receive the entire data
message including the sequence number
and length fields.
c.
Set the Port Number parameter to 3A to use
the Ethernet port.
Note: The port number for the Ethernet
channel may be different on your
PLC-5.
d.
Specify the port-specific receive file address
for the DeviceMaster UP in the Data Table Address box on the Target Device panel. The receive file
address must be specified in logical ASCII format. For more information on file addresses, see
DeviceMaster UP File Addressing
e.
Set the MultiHop option to Yes.
