DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L Chapter 5. Programming the PLC - 137
Configuring and Running the MicroLogix RSLogix 500 Example Program

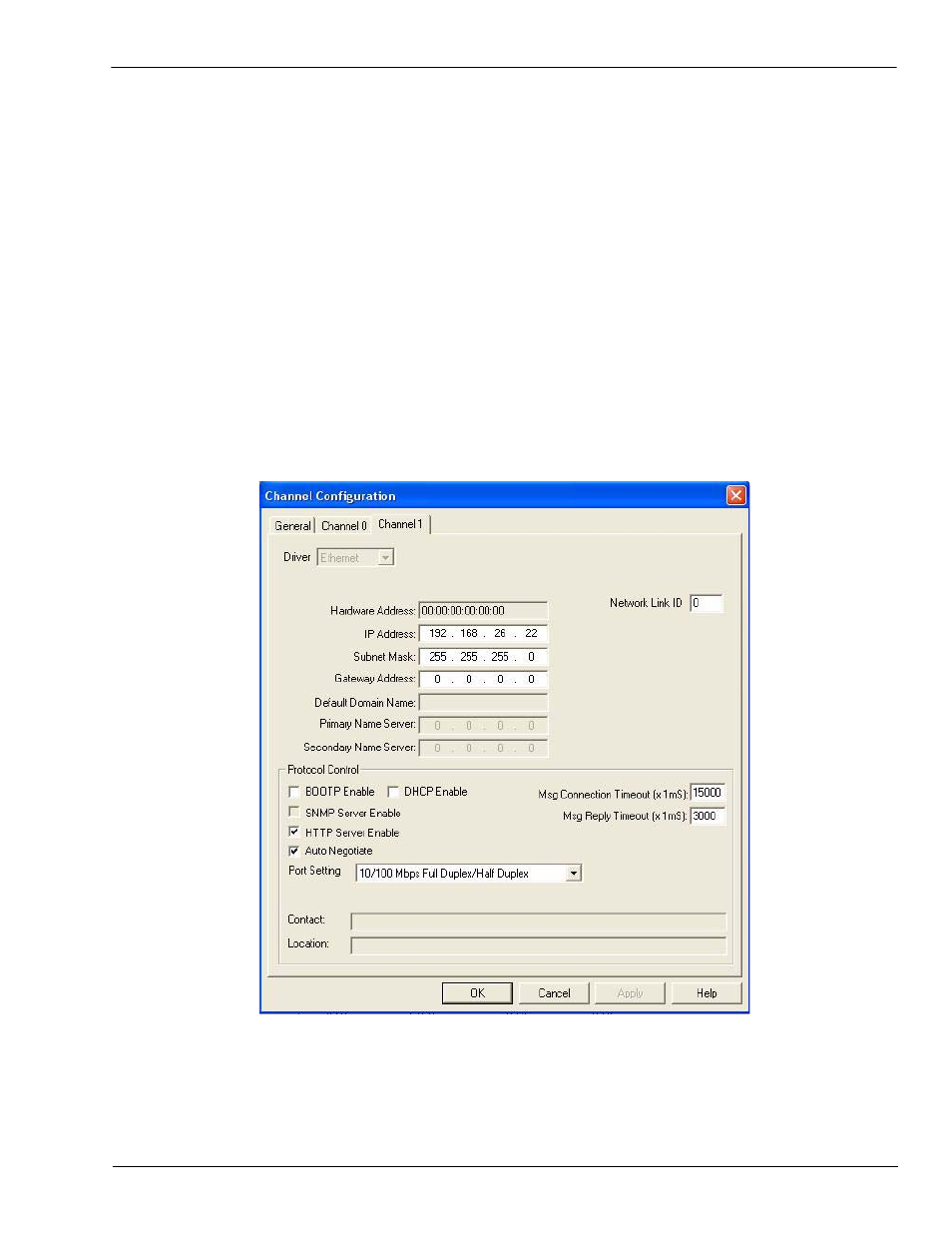

6. Double-click Processor Status, select the Chan. 1 System tab on the Channel Configuration dialog and select
the following options.
a. Type the IP address for your PLC in the IP Address box if you are not using Bootp.
b. Type the subnet mask for your PLC in the Subnet Mask box.
c. Type the gateway address for your PLC in the Gateway Address box.
d. Select Bootp Enable if you are using Bootp to initialize your network settings.
e. Select HTTP Server Enable.
f. Select Auto Negotiate if your network is capable of Ethernet auto-negotiation. If you select Auto
Negotiate, set the Port Setting to 10/100 Mbps Full Duplex/Half Duplex. If you do not select Auto Negotiate,
select the speed and duplex for your network connection.
g. Click OK to apply your changes and close the Channel Configuration dialog.
7. In the ladder logic, double-click Setup Screen in an MSG instruction.
8. Select the MultiHop tab and make the following changes.
9. On the first line, type the IP address for the DeviceMaster UP in the To Address box.
10. Close the MSG dialog.
11. Repeat steps 14 through 17 for each MSG instruction in the ladder logic.
12. Download the PLC program to your PLC and run the program.
