Chapter 5. Programming the PLC
DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L
PLC-5 Typed Read - Retrieve Statistics Message
5.5.10.10. PLC-5 Typed Read - Retrieve Statistics Message

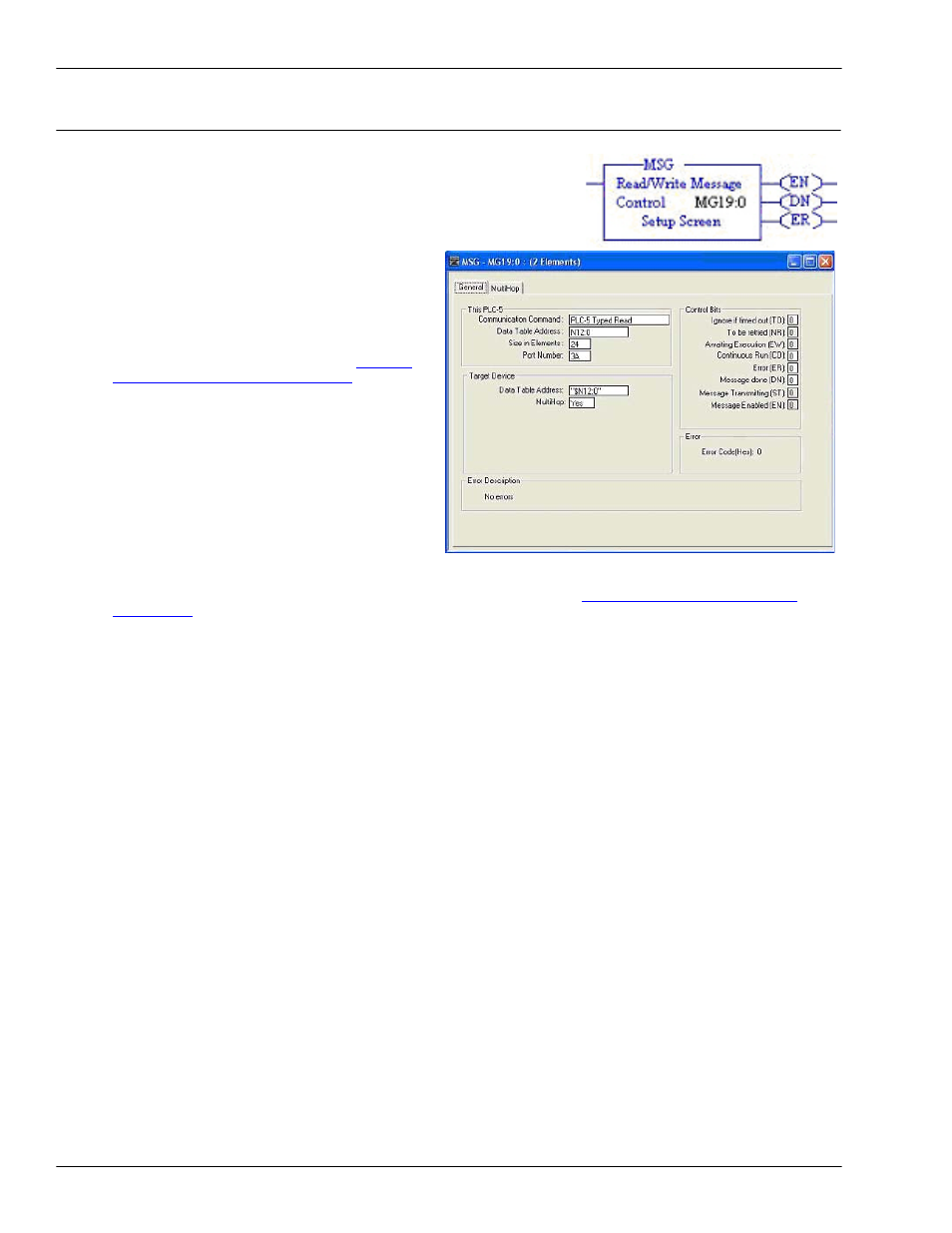

The following screen depicts an PLC-5 Typed Read - Retrieve Statistics
message in ladder logic.
1.
Assign a dedicated message file to the Control block in the ladder
logic (as shown above).
2.
In the ladder logic, double-click the Setup Screen
in the MSG instruction.
3.
Make the following changes:
a.
Specify the file address to receive statistics
data information in the Data Table Address
box on This PLC-5 panel. For more
information on file addresses, see
DeviceMaster UP File Addressing
b.
Type 24 (twelve 32-bit integers) in the Size
of Elements box.
c.
Set the Port Number parameter to 3A to use
the Ethernet port.
Note: The port number for the Ethernet
channel may be different on your
PLC-5.
d.
Specify the port-specific statistics file
address for the DeviceMaster UP in the
Data Table Address box on the Target Device panel. The statistics file address must be specified in
logical ASCII format. For more information on file addresses, see
e.
Set the MultiHop option to Yes.
