DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L
Chapter 5. Programming the PLC - 133
PLC-5 Typed Read - Retrieve Statistics Message - SLC PLC
5.4.6.9. PLC-5 Typed Read - Retrieve Statistics Message - SLC PLC

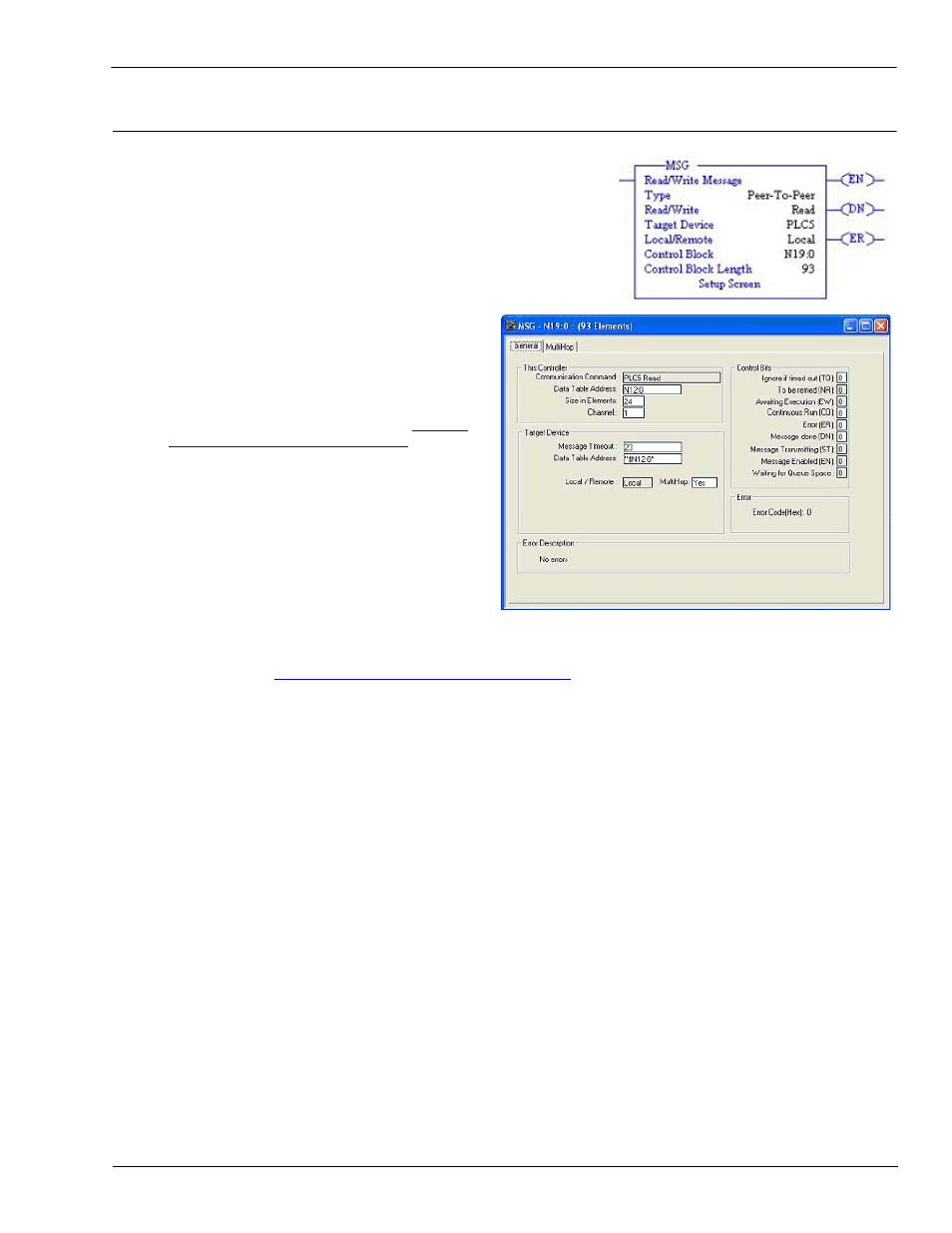

The following screen depicts an PLC-5 Typed Read - Retrieve
Statistics message in ladder logic.
Make the following changes to the ladder logic.
1.
Select the Read option.
2.
Select the PLC5 option.
3.
Select Local.
4.
Assign a dedicated integer file of 93 integers to the Control block.
5.
In the ladder logic, double-click the Setup Screen
in the MSG instruction.
6.
Make the following changes:
a.
Specify the file address to receive statistics
data information in the Data Table Address
box on This Controller panel. For more
information on file addresses, see
DeviceMaster UP File Addressing
58.
b.
Type 24 (twelve 32-bit integers) in the Size
of Elements box.
c.
Set the Channel parameter to 1 to use the
Ethernet port.
The Message Timeout parameter is not
actually configurable. RSLogix 500 sets the
value in this box based on the Ethernet
timeout settings.
d.
Specify the port-specific statistics file
address for the DeviceMaster UP in the Data Table Address box on the Target Device panel. The
statistics file address must be specified in logical ASCII format. For more information on file
addresses, see
2.4.2.1. DeviceMaster UP File Addressing
e.
Set the MultiHop option to Yes.
