DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L

Chapter 5. Programming the PLC - 125

Setting up Processor and Ethernet (Channel 1)

8.

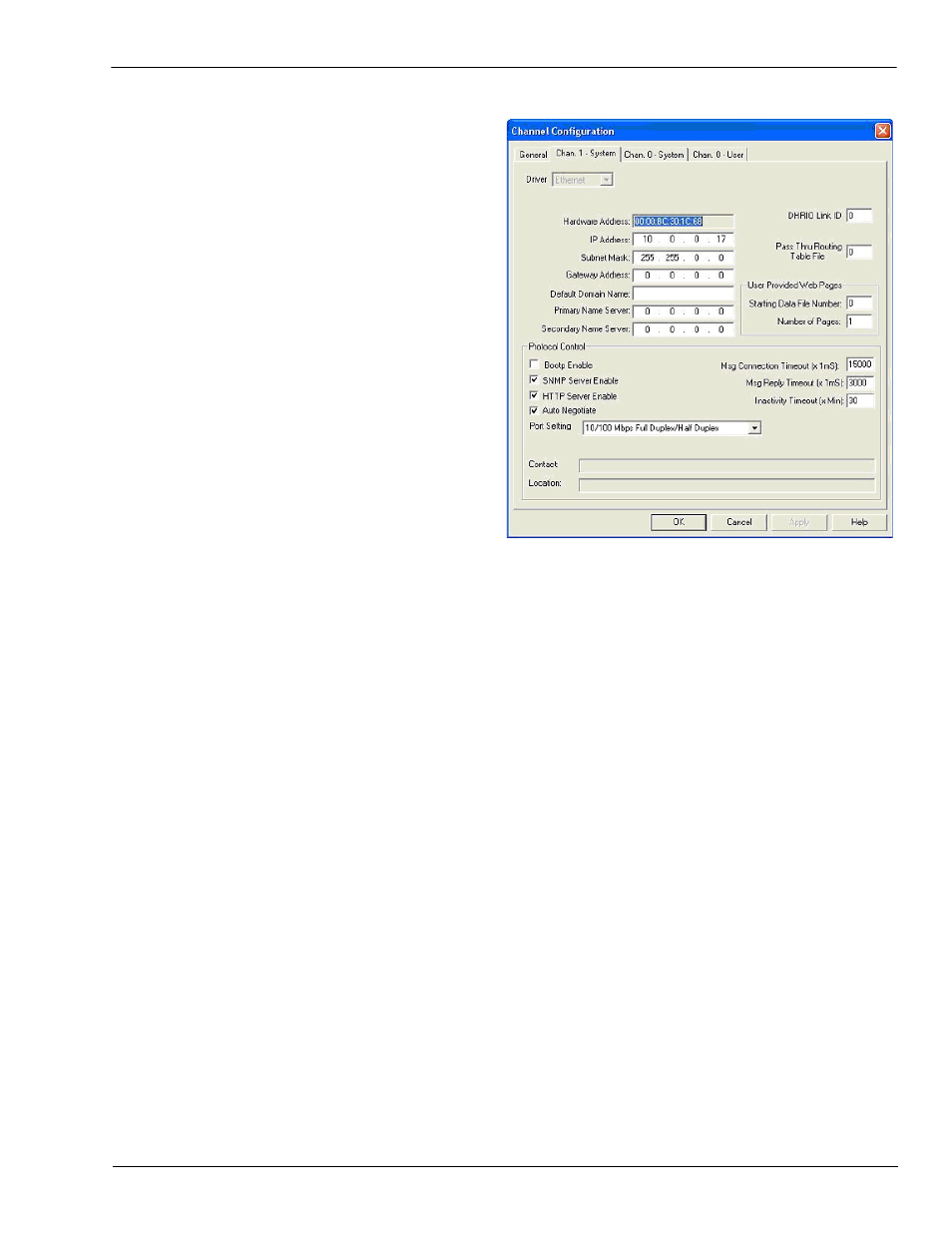

Select the Chan. 1 System tab on the Channel
Configuration dialog.

9.

Make the following recommended changes.

a.

Select the SNMP server Enable option.
(EtherNet/IP may not function without this
setting.)

b.

Select the HTTP Server Enable option.
(EtherNet/IP may not function without this
setting.)

c.

To automatically select the proper Ethernet
speed and duplex settings:

•

Select the Auto Negotiate option.

•

Select the 10/100 Mbps Full Duplex/Half
Duplex option.

10. Click OK to apply your changes and close the

Channel Configuration dialog.
