66 - Chapter 3. Embedded Configuration Pages

DeviceMaster UP Modbus/TCP User Guide: 2000447 Rev. I

Embedded Web Pages Overview

4.

Use the appropriate procedure for your environment to complete the DeviceMaster UP installation.

ControlLogix PLC:

5.3. ControlLogix PLC Programming Example Instructions

on Page 103 describes

how to use RSLogix 5000 to configure and run the DeviceMaster UP.

SLC or MicroLogix PLC:

5.4. SLC or MicroLogix PLC Programming Example Instructions

on Page

116 describes how to use RSLogix 500 to configure and run the DeviceMaster UP.

PLC-5 PLC:

5.5. PLC-5 PLC Programming Example Instructions

on Page 143 describes how to use

RSLogix 5 to configure and run the DeviceMaster UP.

3.2. Embedded Web Pages Overview

The embedded web pages are the easiest way to configure serial and Ethernet device port settings for a
DeviceMaster UP.

Access the main DeviceMaster UP web page (Server Configuration) from PortVision DX or enter the IP
address of the DeviceMaster UP in the Address box of your web browser.

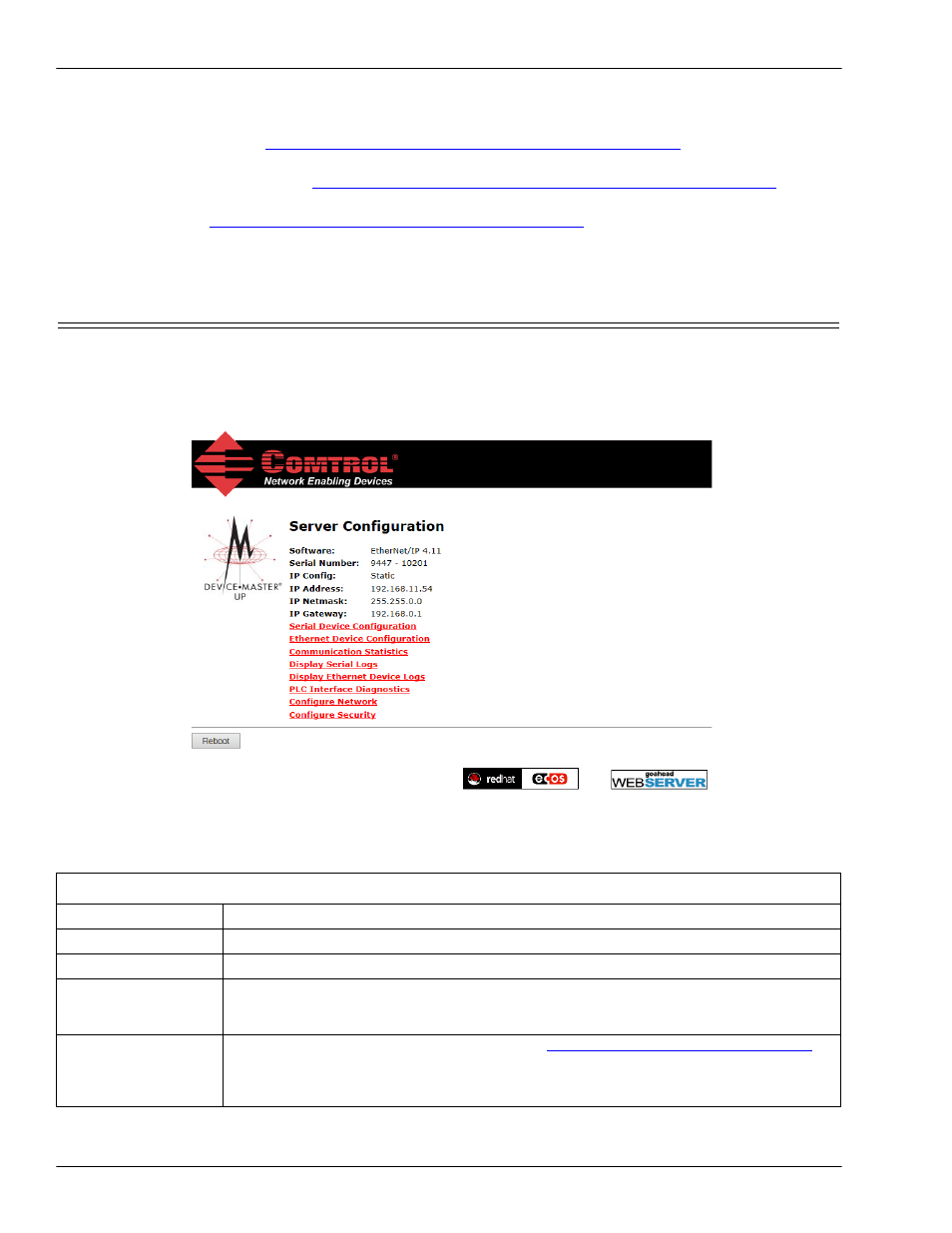

The Server Configuration page displays the software version and current network configuration for the
DeviceMaster UP. In addition, the Server Configuration page links to the configuration, statistics, and
diagnostics pages, which are discussed in the table below.

Server Configuration Page

Software

EtherNet/IP firmware version currently running on the DeviceMaster UP.

Serial Number

DeviceMaster UP serial number.

IP Config

Type of IP configuration currently in use (static or DHCP).

IP Address, IP
Netmask, and IP
Gateway

IP address, netmask, and gateway configured in the DeviceMaster UP.

Serial Device
Configuration

Opens the Serial Device Configuration page (

3.3. Serial Device Configuration Page

on

Page 67), which provides an overview of the serial device interface settings and access
to the Edit Serial Port Configuration
page for serial port configuration on the selected
port.
