154 - Chapter 5. Programming the PLC DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L
SLC Typed Write - Set Receive Produced Sequence Number Message
5.5.10.6. SLC Typed Write - Set Receive Produced Sequence Number Message

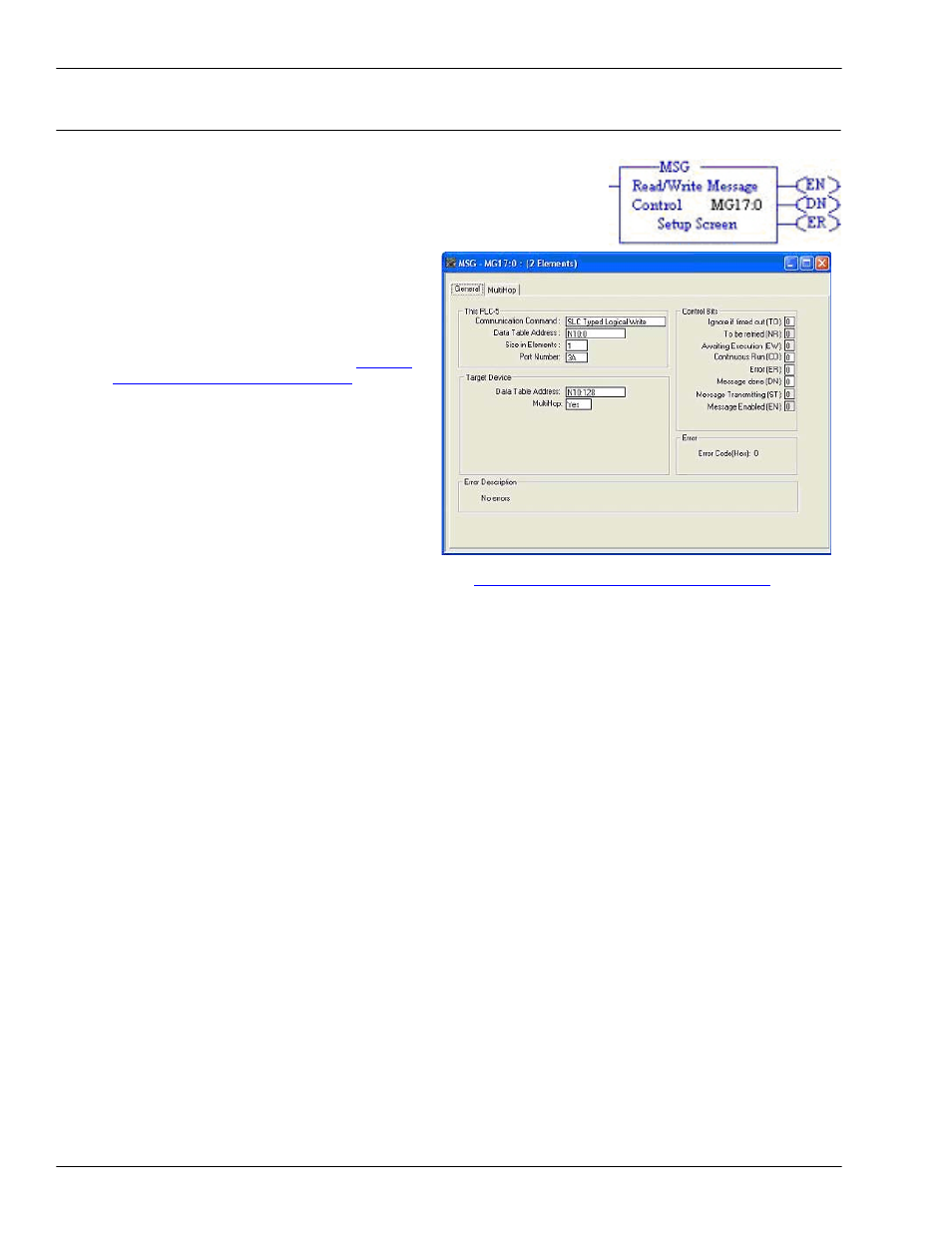

The following screen depicts an SLC Typed Write - Set Receive Produced
Sequence Number message in ladder logic.
1. Assign a dedicated message file to the Control block in the ladder logic
(as shown above).
2. In the ladder logic, double-click the Setup
Screen in the MSG instruction.
3. Make the following changes:
a. Specify the file address where the receive
sequence number resides in the Data Table
Address box on This PLC-5 panel. For more
information on file addresses, see
2.4.2.1.
DeviceMaster UP File Addressing on Page
58.
b. Type 1 in the Size of Elements box.
c. Set the Port Number parameter to 3A to use
the Ethernet port.
Note: The port number for the Ethernet
channel may be different on your
PLC-5.
d. Specify the port-specific receive sequence
file address for the DeviceMaster UP in the
Data Table Address box on the Target Device
panel. For more information on file addresses, see
2.4.2.1. DeviceMaster UP File Addressing on Page
58.
e. Set the MultiHop option to Yes.
