130 -

Chapter 5. Programming the PLC

DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L

SLC Typed Write - Set Transmit Produced Sequence Number Message - SLC PLC

5.4.6.6. SLC Typed Write - Set Transmit Produced Sequence Number Message - SLC PLC

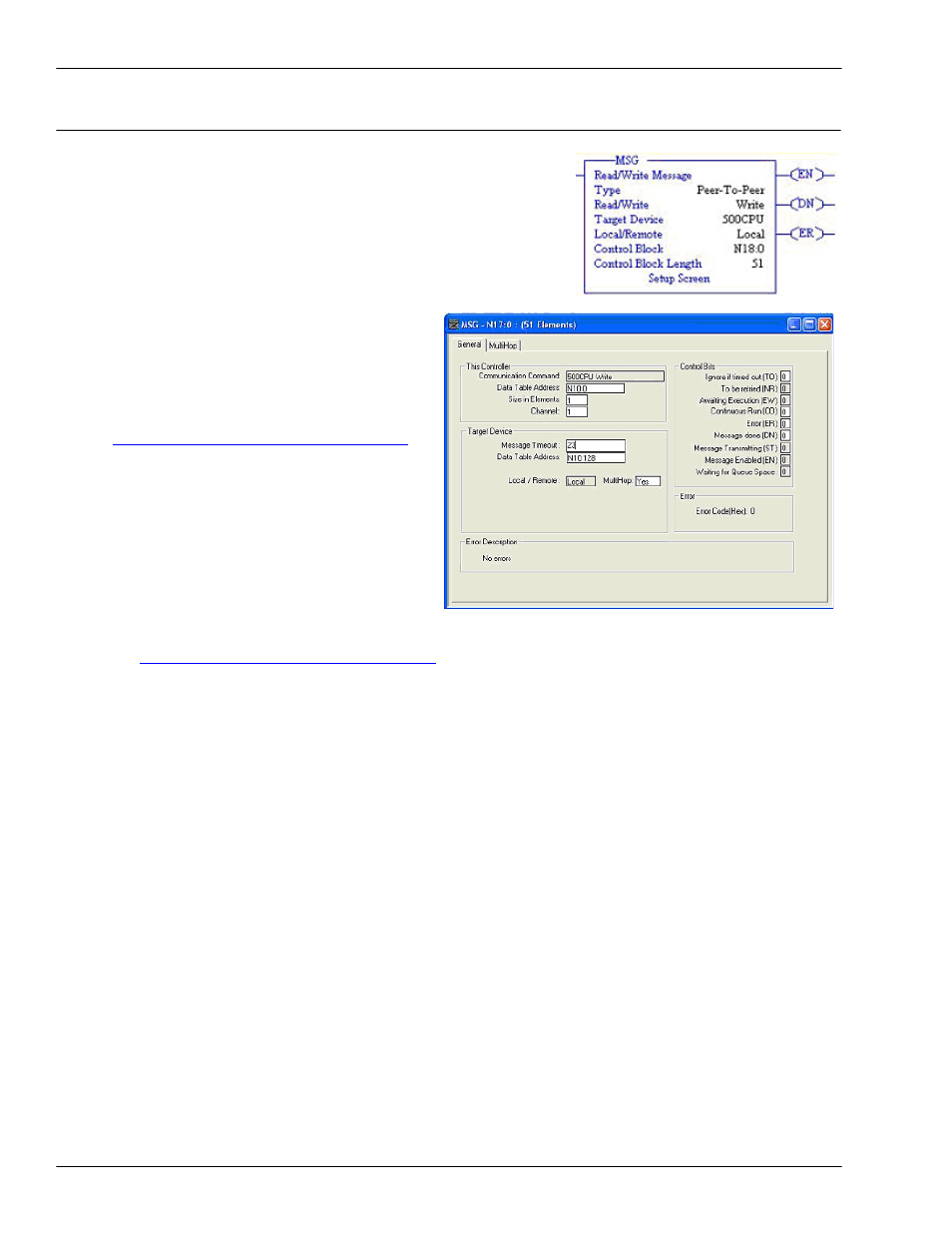

The following screen depicts an SLC Typed Write - Set Transmit
Produced Sequence Number
message in ladder logic.

Make the following changes to the ladder logic.

1.

Select the Write option.

2.

Select the 500CPU option.

3.

Select Local.

4.

Assign a dedicated integer file of 51 integers to the Control block.

5.

In the ladder logic, double-click the Setup Screen
in the MSG instruction.

6.

Make the following changes:

a.

Specify the file address where the transmit
sequence number resides in the Data Table
Address
box on This Controller panel. For
more information on file addresses, see

2.4.2.1. DeviceMaster UP File Addressing

on Page 58.

b.

Type 1 in the Size of Elements box.

c.

Set the Channel parameter to 1 to use the
Ethernet port.

The Message Timeout parameter is not
actually configurable. RSLogix 500 sets the
value in this box based on the Ethernet
timeout settings.

d.

Specify the port-specific transmit sequence
number file address for the DeviceMaster
UP in the Data Table Address box on the Target Device panel. For more information on file addresses,
see

2.4.2.1. DeviceMaster UP File Addressing

on Page 58.

e.

Set the MultiHop option to Yes.
