112 -

Chapter 5. Programming the PLC

DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L

Send Consumed Sequence Number to DeviceMaster UP

5.3.7.4. Send Consumed Sequence Number to DeviceMaster UP

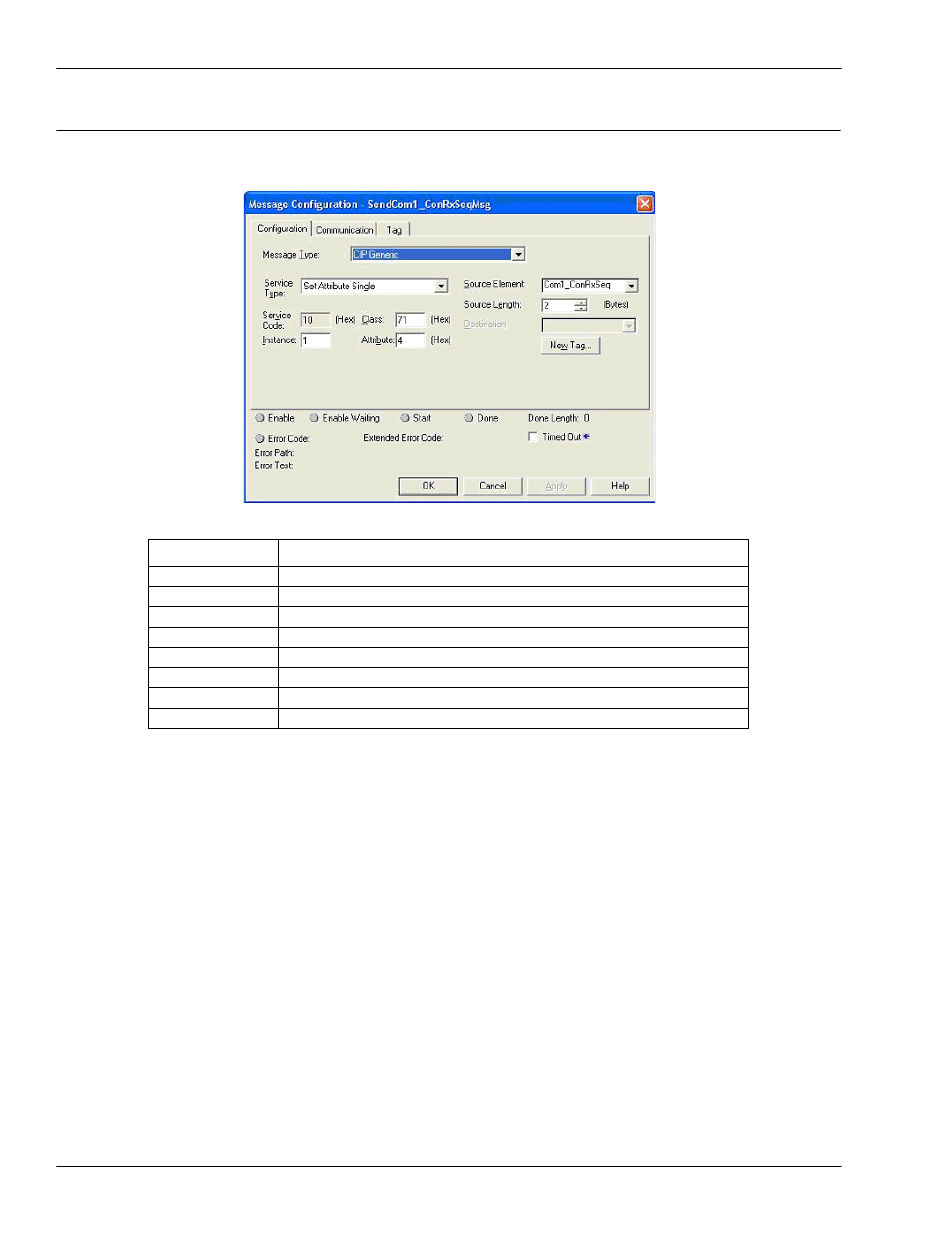

Use the Configuration tab on the Message Configuration dialog to update the consumed sequence number for a
specified port on the DeviceMaster UP. Only the Write-to-Tag-Synced receive method uses this feature.

Provide the following information:

Field

Selection

Message Type

CIP Generic

Service Type

Set Attribute Single

Service Code

10 Hex (Set Attribute Single)

Class

71 Hex (Serial Port Data Transfer object)

Instance

1 (Port 1)

Attribute

4 (Receive consumed sequence number attribute)

Source Element Com1_ConRxSeq (one INT)
Source Length

2 (one INT)
