Send Configuration to DeviceMaster UP
5.3.7.2. Send Configuration to DeviceMaster UP

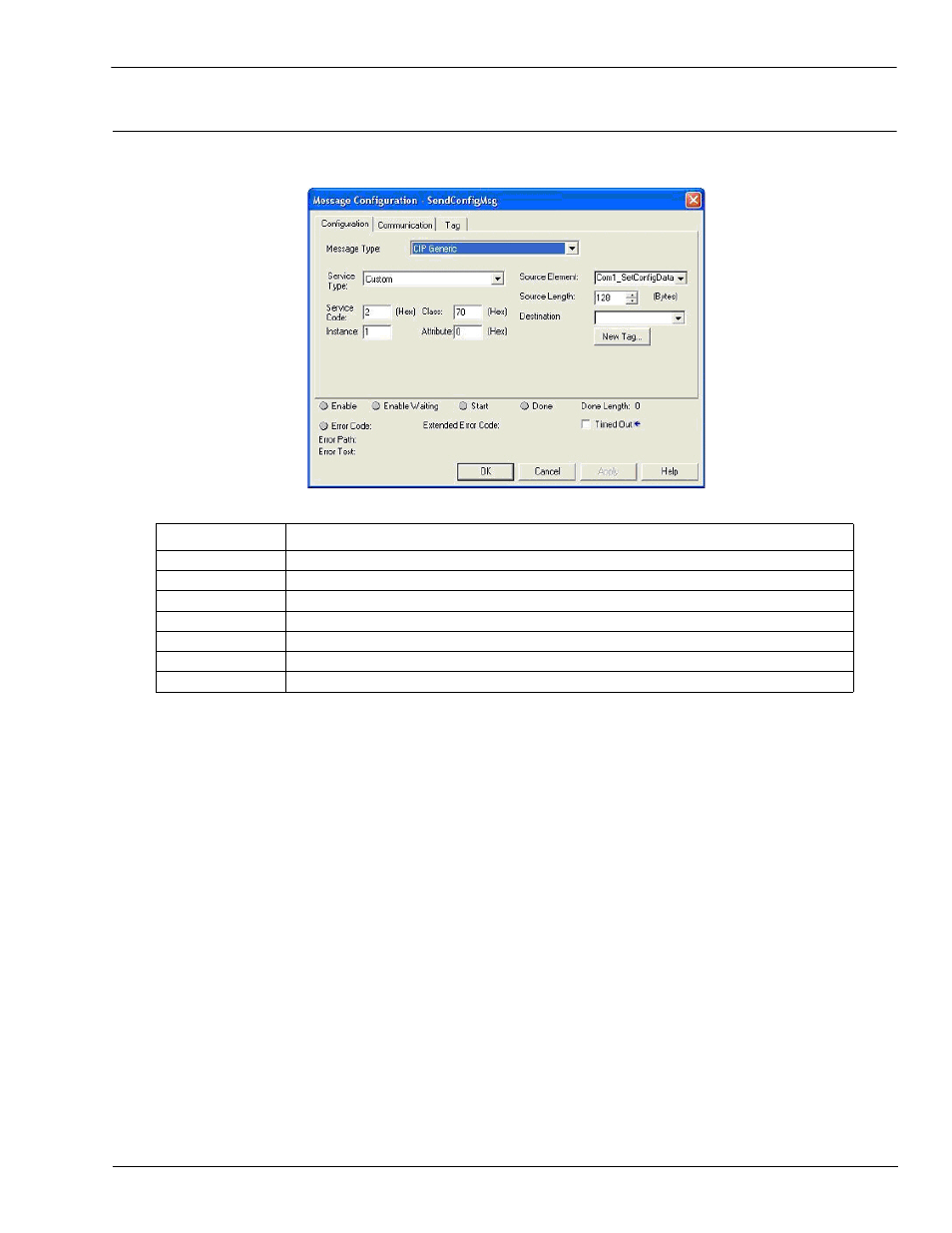

Use the Configuration tab on the Message Configuration dialog for sending a serial port configuration to the
DeviceMaster UP.
Provide the following information.
Field Selection
Message Type CIP Generic
Service Type Custom
Service Code 2 Hex (Set Attribute All)
Class 70 Hex (Serial Port Configuration object)
Instance 1 (Port 1)
Attribute 0 (Unused)
Source Element Com1_SetConfigData (Configuration data structure.)
