Communication Statistics

4.1. Communication Statistics

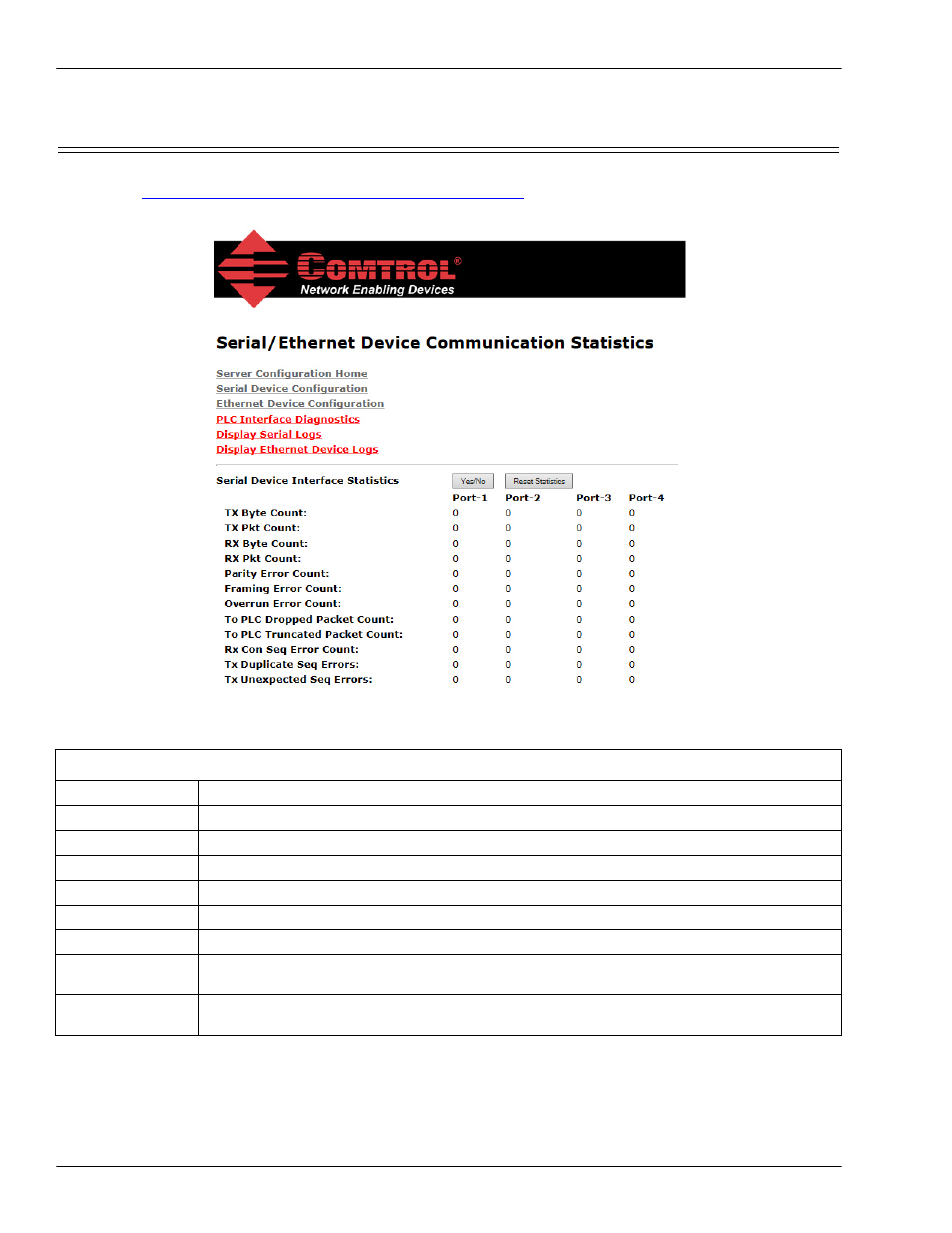

The top portion of this page provides links to other pages. The displayed counters are the same as those
specified in

on Page 31. Refer to the following table for

definitions of the fields.

Note: The refresh rate on this page is set to 20 seconds. To stop the page refresh, select Refresh in your browser.

To restart refreshing the page display; exit and return to this page.

Serial Device Interfaces Statistics

Yes/No

Toggles to display or not to display serial statistics.

Reset Statistics

Clears the serial port statistics, which sets the value to 0 for all ports.

TX Byte Count

Displays the number of bytes sent out of the serial port.

TX Pkt Count

Displays the number of serial packets sent out of the serial port.

RX Byte Count

Displays the number of bytes received over the serial port.

RX Pkt Count

Displays the number of packets received over the serial port.

Parity Error Count Displays the number of received serial packets dropped due to parity errors.

Framing Error
Count

Displays the number of received serial packets dropped due to framing errors.

Overrun Error
Count

Displays the number of received serial packets dropped due to overrun error incidents.
