Chapter 5. Programming the PLC
DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L
Configuring and Running the MicroLogix RSLogix 500 Example Program
5.4.7. Configuring and Running the MicroLogix RSLogix 500 Example Program
1.
Select the appropriate message type example programs (_MICROLGX) and copy the files (.RSS) to the
desired directory.
2.
Start RSLogix 500 and open the .RSS file through RSLogix 500.
3.

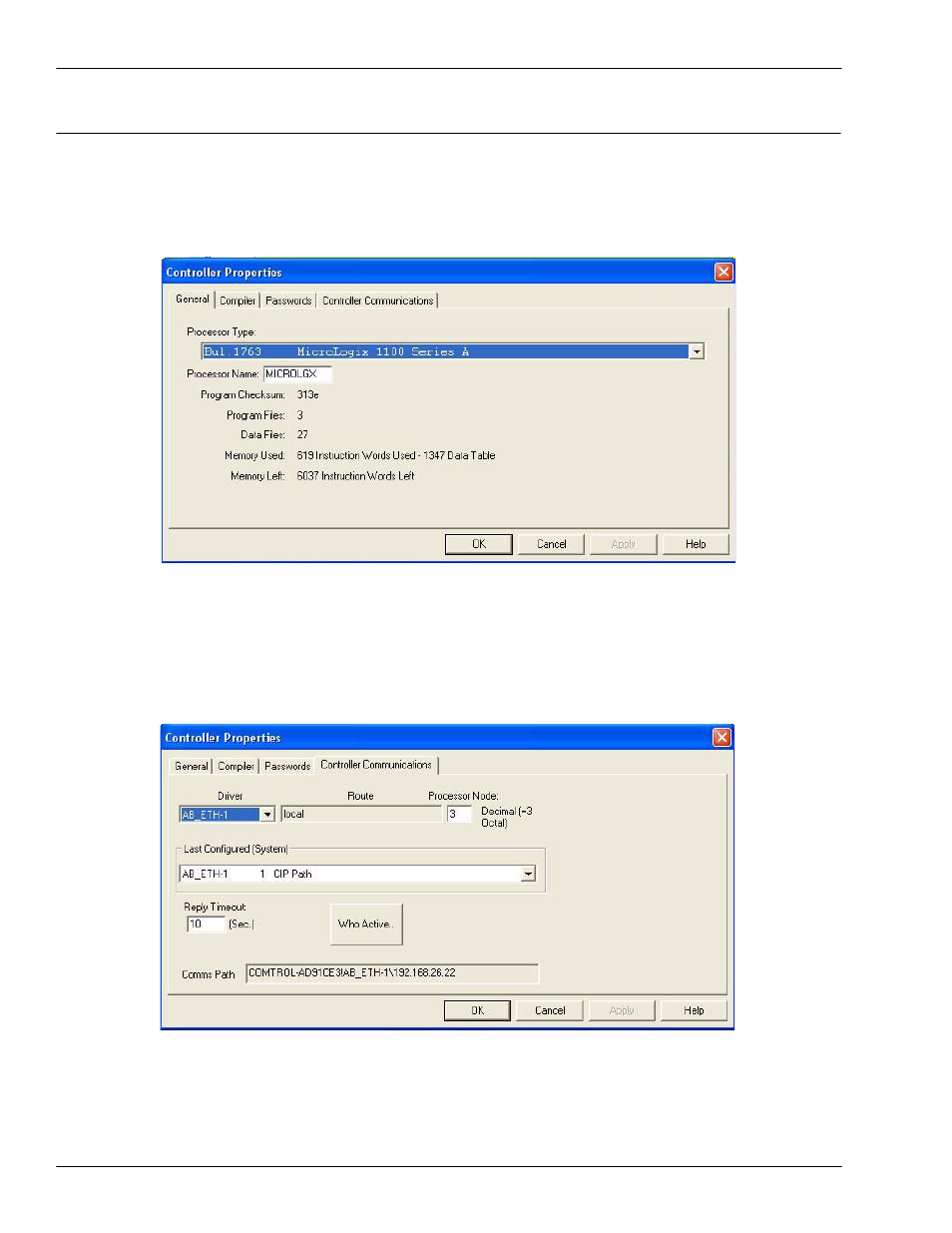

To modify the PLC program for your system, double-click Controller Properties.
In the General tab, select your MicroLogix processor type under Processor Type and provide a Processor Name.
4.
Select the Controller Communications tab and select the following options:
a.
Set Driver to the appropriate type to allow RSLogix 500 to communicate with the MicroLogix
processor.
b.
Type the processor node number in the Processor Node box. (You may reference the Last Configured
(System) node or select Who Active.).
5.
Click OK to apply your changes and close the Controller Properties dialog.
