Setting up Processor and Ethernet Channel

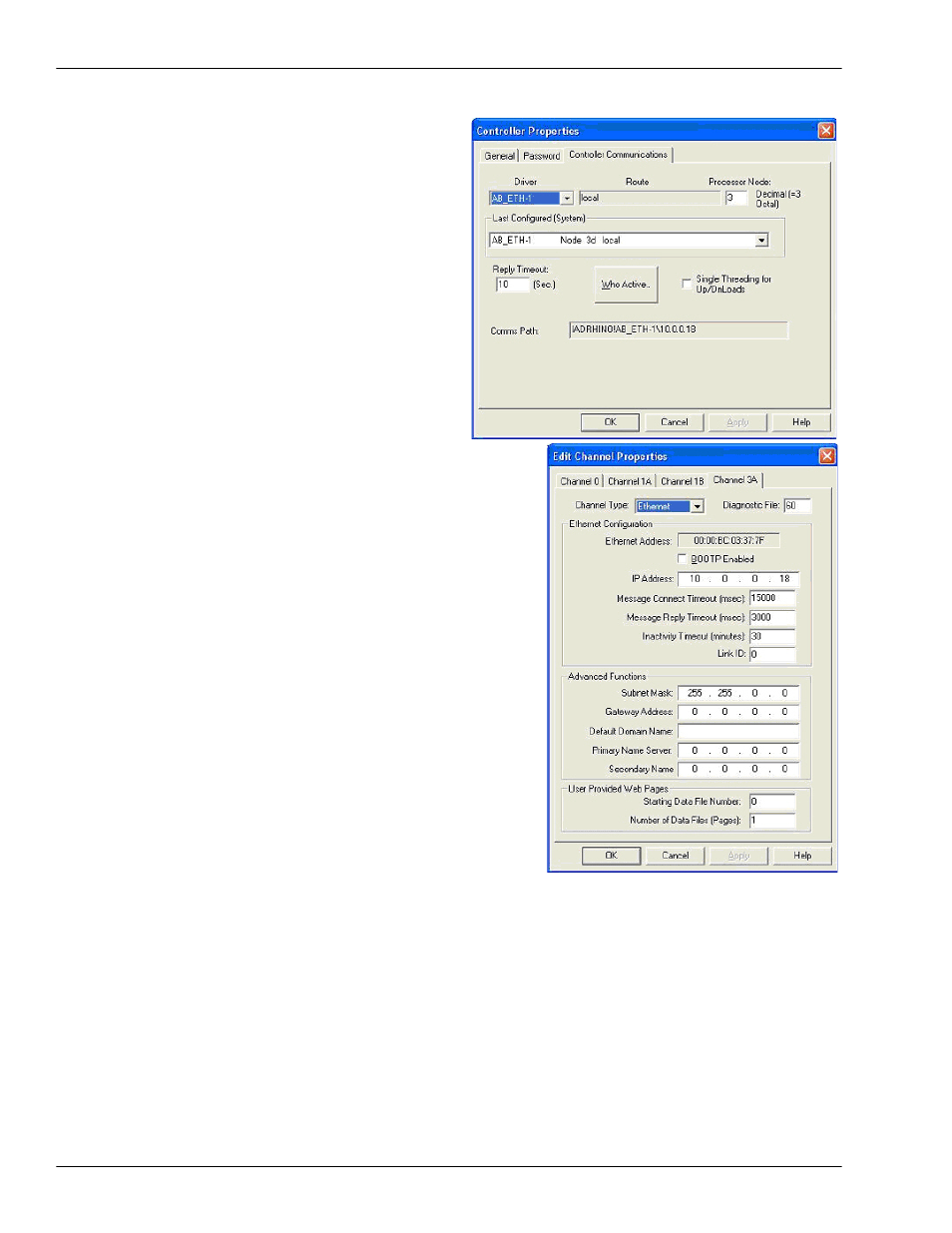

3. Select the Controller Communications tab and select
the proper driver for RSLogix 5.
4. Click OK to apply your changes and close the
Controller Properties dialog.
5. Double-click Channel Configuration, click the
Channel 3A tab and make the following changes.
a. Type a value (between 0 and 256) in the Diagnostic File box
for an integer diagnostic file. (This example uses
Diagnostic file 60.) You can use the diagnostic file to help
solve any network-related problems.
b. Type the IP address in the IP address box.
c. Type the subnet mask in the Subnet Mask box.
d. Type the gateway address in the Gateway Address box.
Note: The Ethernet channel may be different on your
PLC-5.
6. Click OK to apply your changes and close the Edit Channel
Properties dialog.
