DeviceMaster UP EtherNet/IP User Guide: 2000424 Rev. L Chapter 5. Programming the PLC - 153
SLC Typed Read - Retrieve Statistics Message
5.5.10.5. SLC Typed Read - Retrieve Statistics Message

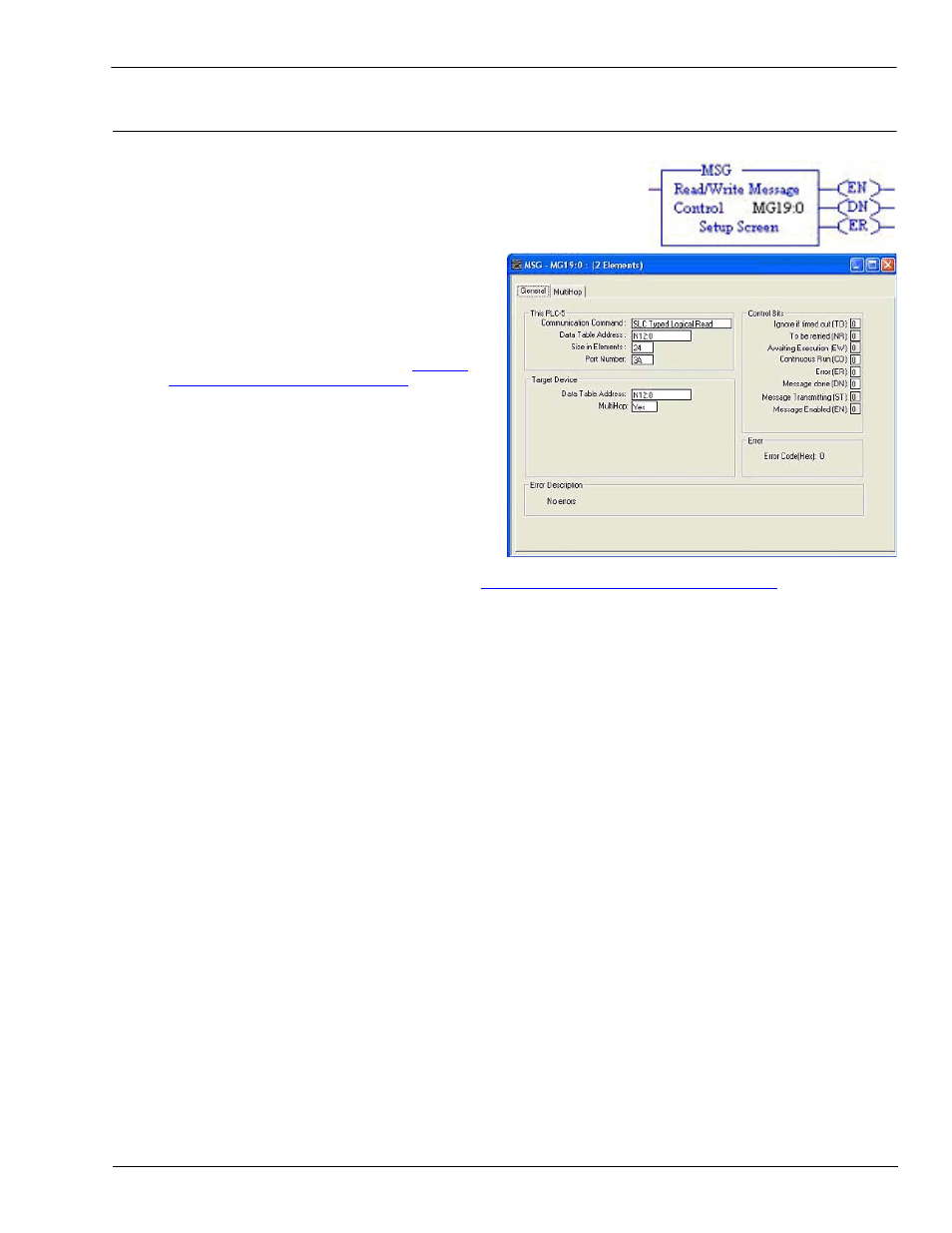

The following screen depicts an SLC Typed Read - Retrieve Statistics
message in ladder logic.
1. Assign a dedicated message file to the Control block in the ladder
logic.
2. In the ladder logic, double-click the Setup Screen
in the MSG instruction.
3. Make the following changes:
a. Specify the file address to receive statistics
data information in the Data Table Address
box on This PLC-5 panel. For more
information on file addresses, see
2.4.2.1.
DeviceMaster UP File Addressing on Page
58.
b. Type 24 (twelve 32-bit integers) in the Size of
Elements box.
c. Set the Port Number parameter to 3A to use
the Ethernet port.
The port number for the Ethernet channel
may be different on your PLC-5.
d. Specify the port-specific statistics file
address for the DeviceMaster UP in the Data
Table Address box on the Target Device panel.
For more information on file addresses, see
2.4.2.1. DeviceMaster UP File Addressing on Page 58.
e. Set the MultiHop option to Yes.
