Chapter 6: HSIM-W6 Configuration with QuickSET
82
HSIM-W6 User’s Guide

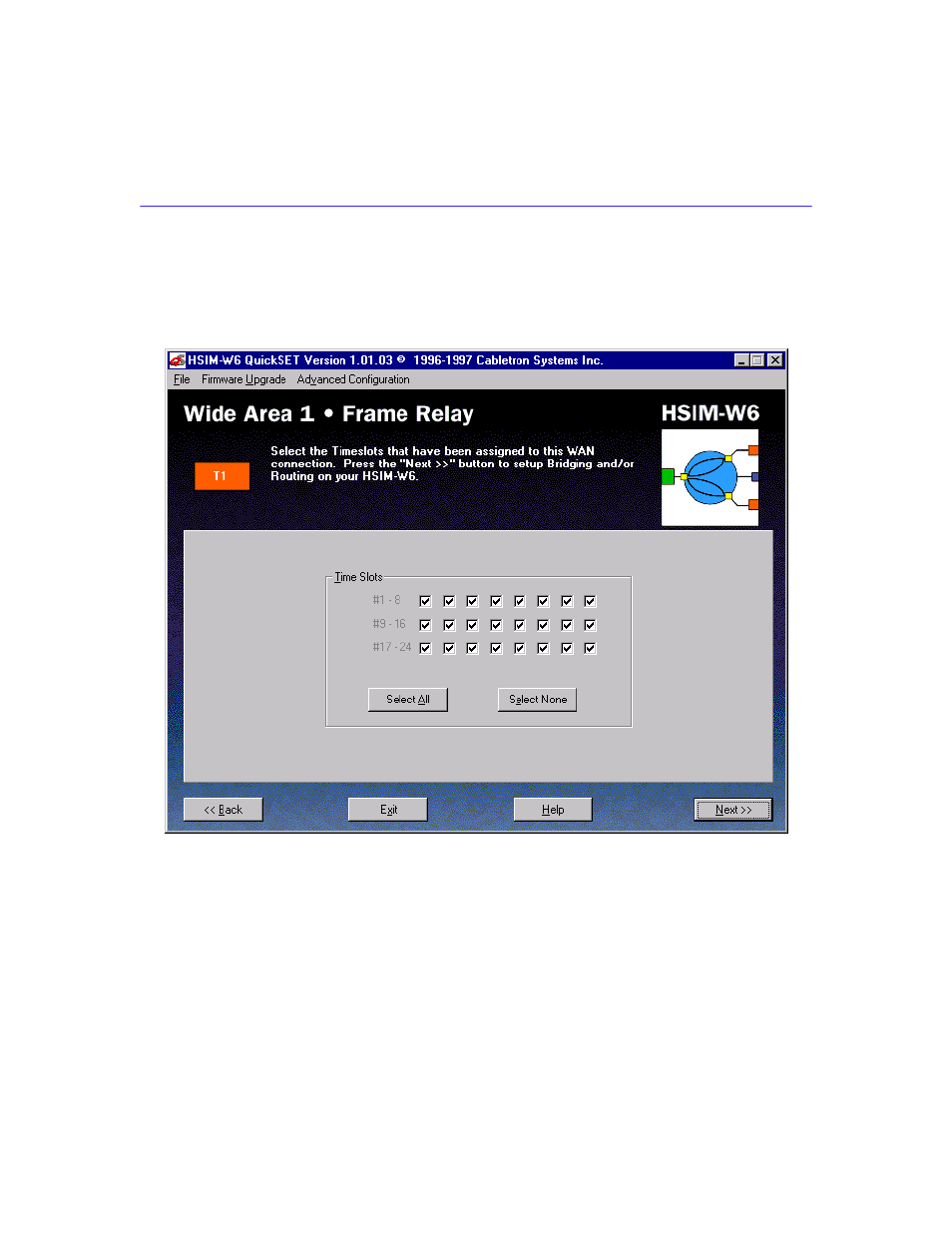

Wide Area Frame Relay Time Slot Configuration Window
The Wide Area Frame Relay Time Slot configuration window shown in
you click on the Next>> button in the (T1, E1, or DI) Wide Area configuration window and Frame
Relay is chosen as the WAN Protocol.
Figure 28
Wide Area Frame Relay Time Slot Configuration Window
The following section defines the field in the Wide Area Frame Relay Time Slot configuration
window.
Time Slots —
A full line consists of 24 Time Slots (T1, D1) or 31 Time Slots (E1), each capable
of up to 64 Kbps throughput. If you are leasing an entire line from your service provider, you may
select all of the Time Slots by clicking on each one. A “check mark” displays in the selected box.
