Chapter 4: Planning for HSIM-W6 ISDN Configuration
36 HSIM-W6 User’s Guide
NetWare IPX Routing — An Ethernet LAN IPX network number is required for the HSIM-W6
local Ethernet LAN connection. The ISDN WAN link to each remote router must have an assigned
IPX network number. IPX Routes and IPX SAPs for each remote router are also required for the
configuration process.

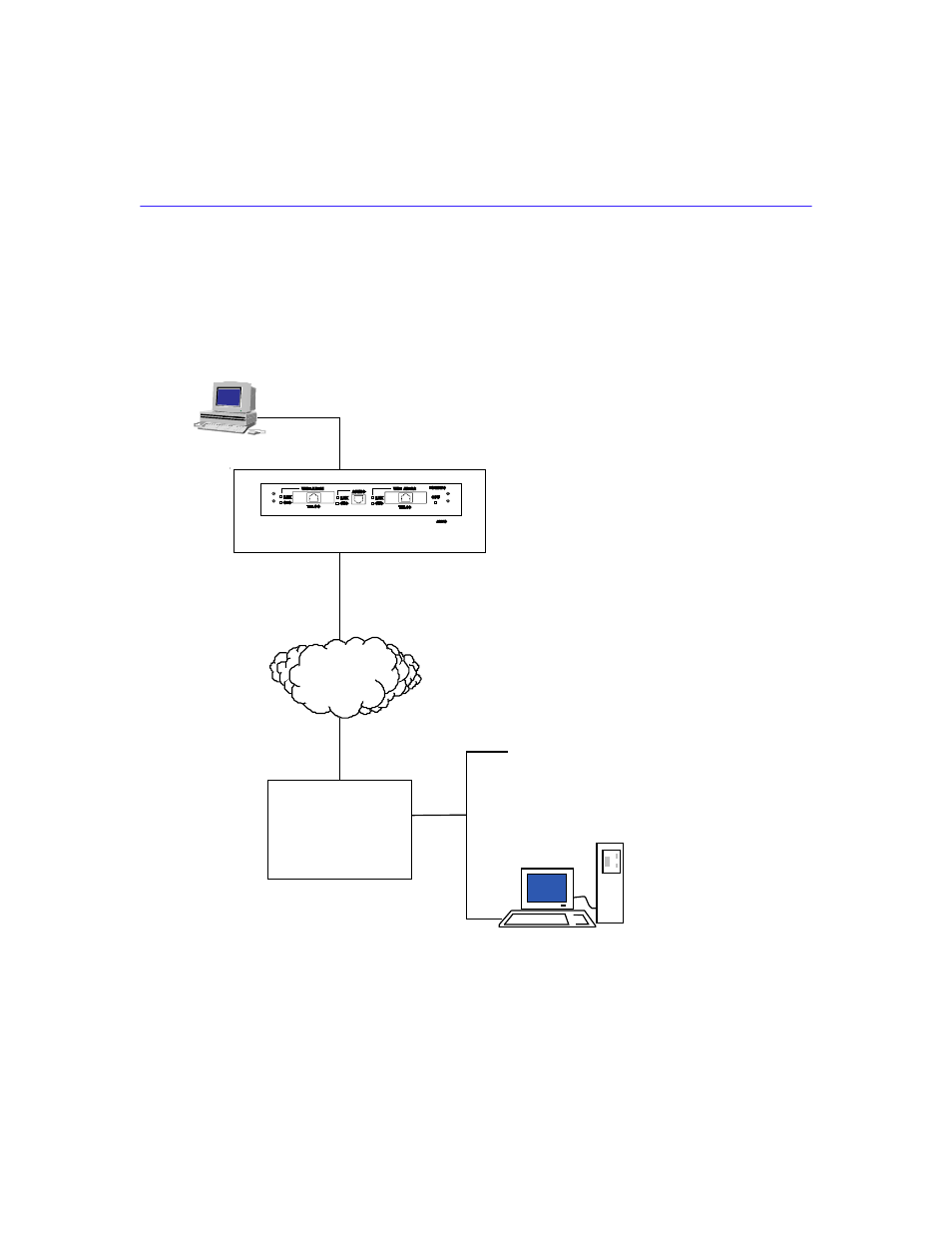

Figure 9 provides an example of the network layout for IPX routing.
Figure 9 Network Information Layout
NETWORK INFORMATION LAYOUT
ETHERNET LAN
IPX NETWORK NUMBER
SYSTEM NAME, PAP/CHAP PASSWORD
ISDN LINE
SPIDs, DNs
PHONE NUMBERS
ISDN
WAN LINK
IPX NETWORK NUMBER
REMOTE ISDN
PHONE NUMBERS
REMOTE ROUTER
ROUTER NAME
PAP/CHAP PASSWORD
IPX ROUTES:
NETWORK NUMBER
HOPS/TICKS
IPX SAPs:
SERVER NAME TYPE
NETWORK NUMBER
NETWORK NODE ADDRESS
SOCKETS
SERVERS AND NETWORK SEGMENTS BEYOND
THE REMOTE ROUTER
WAN LINK
IPX NETWORK NUMBER
100_14
PC
HSIM-W6
