Chapter 5: Installation
52 HSIM-W6 User’s Guide

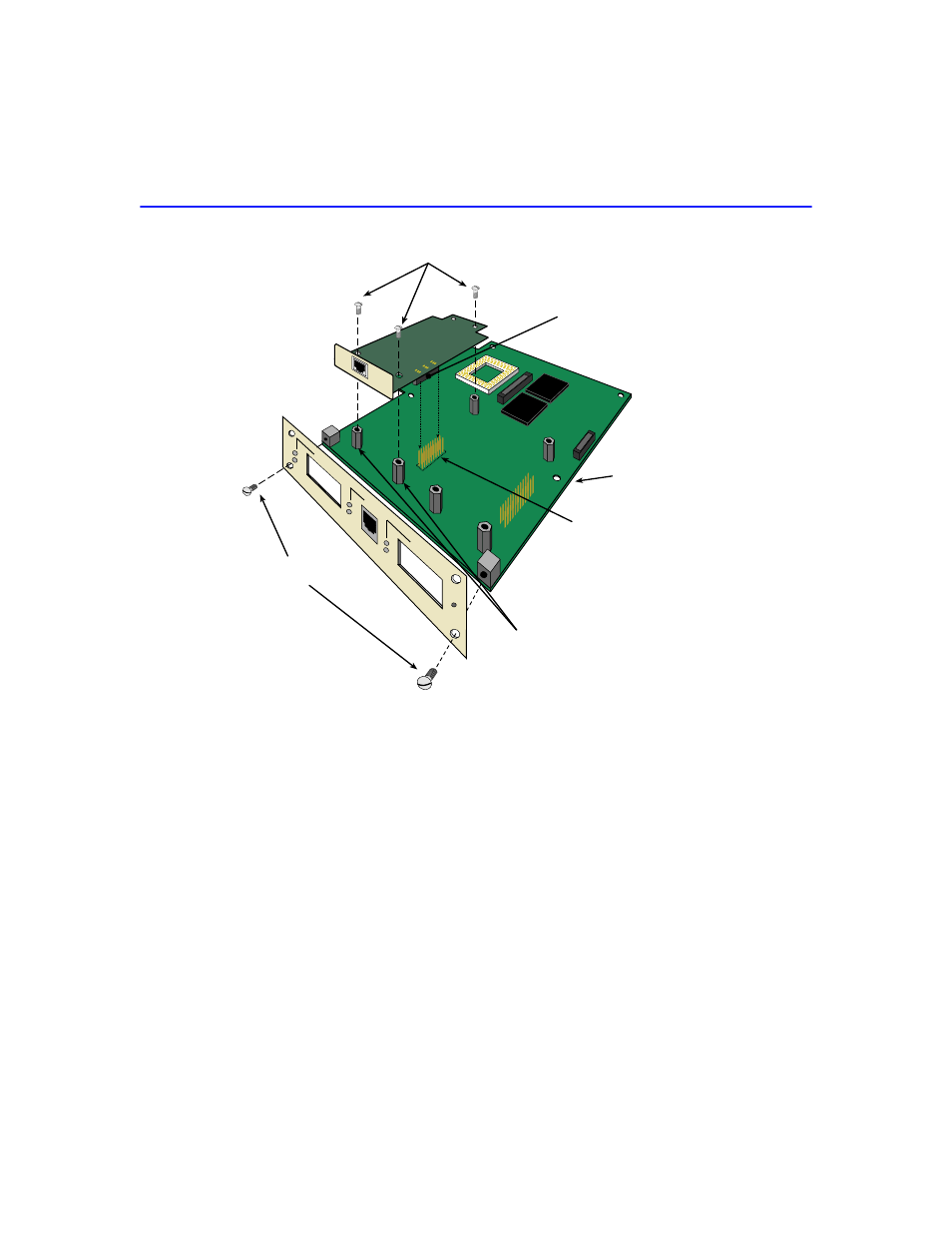

Figure 12 Installing a WPIM
CSX-COMP/ENCR Installation
This section contains instructions on how to install the CSX200-COMP/ENCR into the
HSIM-W6. To help eliminate any potential problems during or after installation, read and
understand the following steps:
1. Attach one end of the antistatic wrist strap to your wrist and the other end to an approved
electrical ground.
2. Unpack the CSX-COMP/ENCR by carefully removing it from the shipping box and then from
the protective plastic bag. Do not cut the bag as the device could be damaged. If there are any
signs of damage, contact the Cabletron Systems Global Call Center (refer to
Chapter 1 ,
Getting Help ).
WPIM Screws
Standoffs
WPIM Connector
WPIM Connector Pins
225703
WIDE AREA
1
WIDE AREA
2
ASYNC
TELCO
CPU
HSIM-W6 TELCO
LNK
STS
LNK
STS
LNK
STS
Faceplate Screws
HSIM
HSIM PCB
