Chapter 6: HSIM-W6 Configuration with QuickSET
62 HSIM-W6 User’s Guide
HSIM Configuration Window
The HSIM configuration window shown in Figure 19 displays after clicking on the Next>> button
in the Second Introductory window. The Local HSIM IP Address field and the Local HSIM Subnet
Mask field allow you to set the IP address and subnet mask for the HSIM interface.

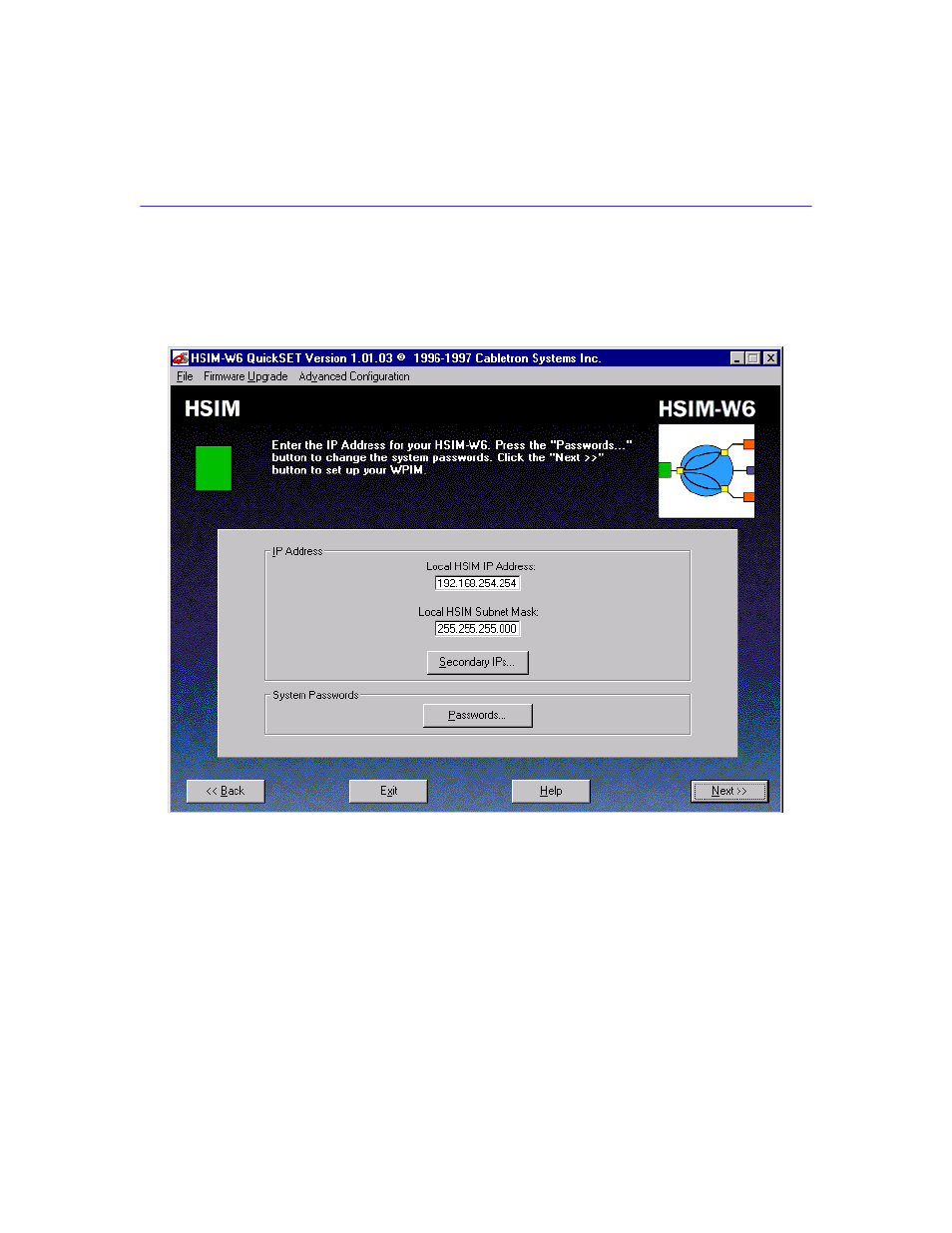

Figure 19 HSIM Configuration Window
This section describes each of the fields on the HSIM configuration window.
Local HSIM IP Address — Displays the IP address for the HSIM interface. Place the cursor in
this field and type in the preferred IP address in Dotted Decimal Notation (DDN) format. The IP
address must be entered in this field to continue.
