Chapter 6: HSIM-W6 Configuration with QuickSET
72 HSIM-W6 User’s Guide
Once the Wide Area E1 configuration is complete, click on Next>> in the Wide Area E1
configuration window and proceed to
Wide Area Frame Relay Time Slot Configuration
Window if you are using the Frame Relay Protocol or Wide Area PPP Time Slot Configuration
Window if you are using the PPP Protocol.
Wide Area DI Configuration Window
The Wide Area DI configuration window shown in Figure 24 displays after clicking on the
Next>> button in either the HSIM configuration window or the Wide Area (Frame Relay or PPP)
configuration window, depending on whether you have installed one or two WPIMs in the
HSIM-W6, and the order that you are configuring them.
This section explains how to configure the HSIM-W6 DI WAN port using QuickSET.

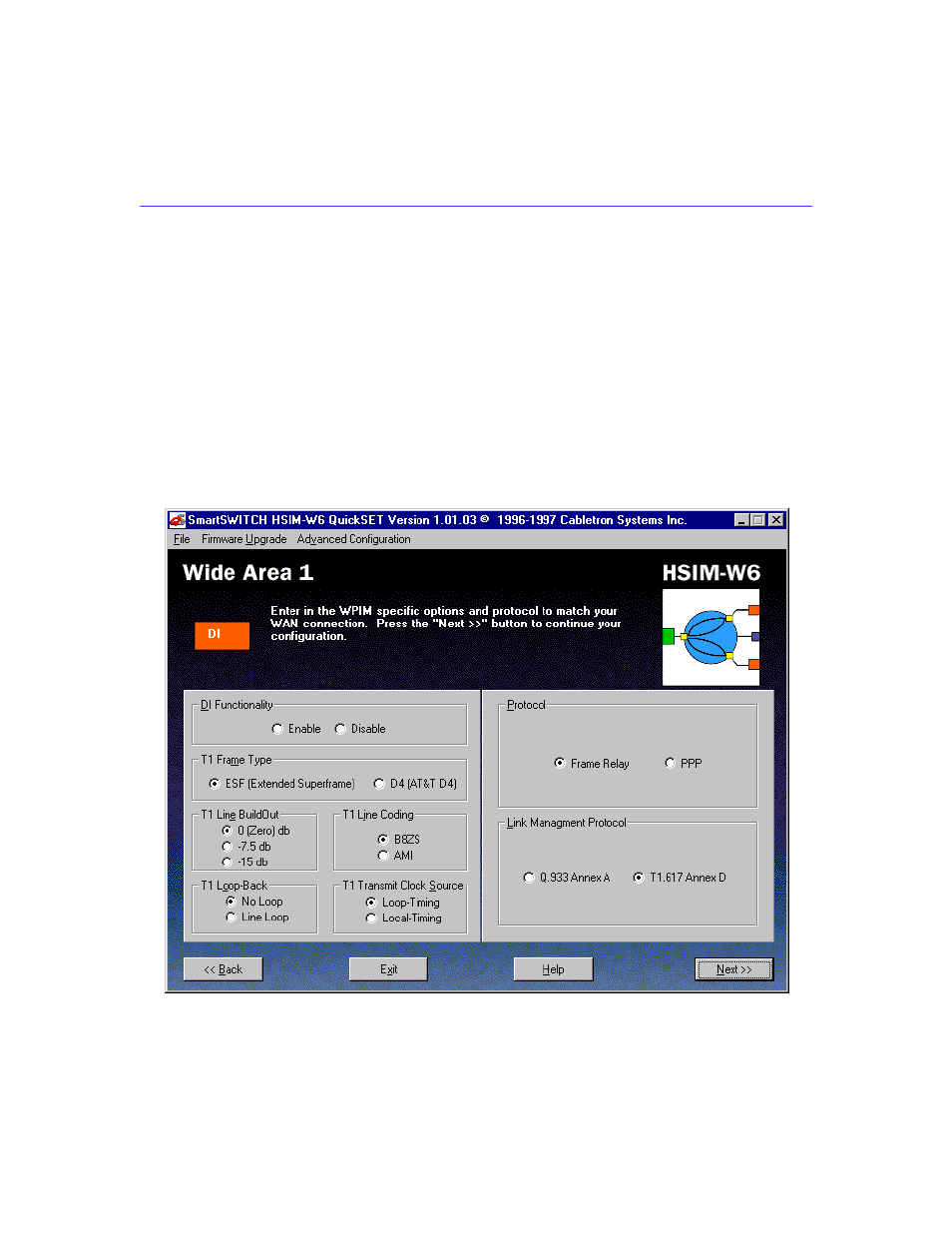

Figure 24 Wide Area DI Configuration Window
