Chapter 6: HSIM-W6 Configuration with QuickSET
102 HSIM-W6 User’s Guide
DHCP Settings Configuration Window
The DHCP Settings configuration window shown in Figure 39 displays after clicking on the
DHCP Server... button in the Advanced Routing configuration window. The DHCP Settings
configuration window is used to configure the DHCP settings for the HSIM-W6.

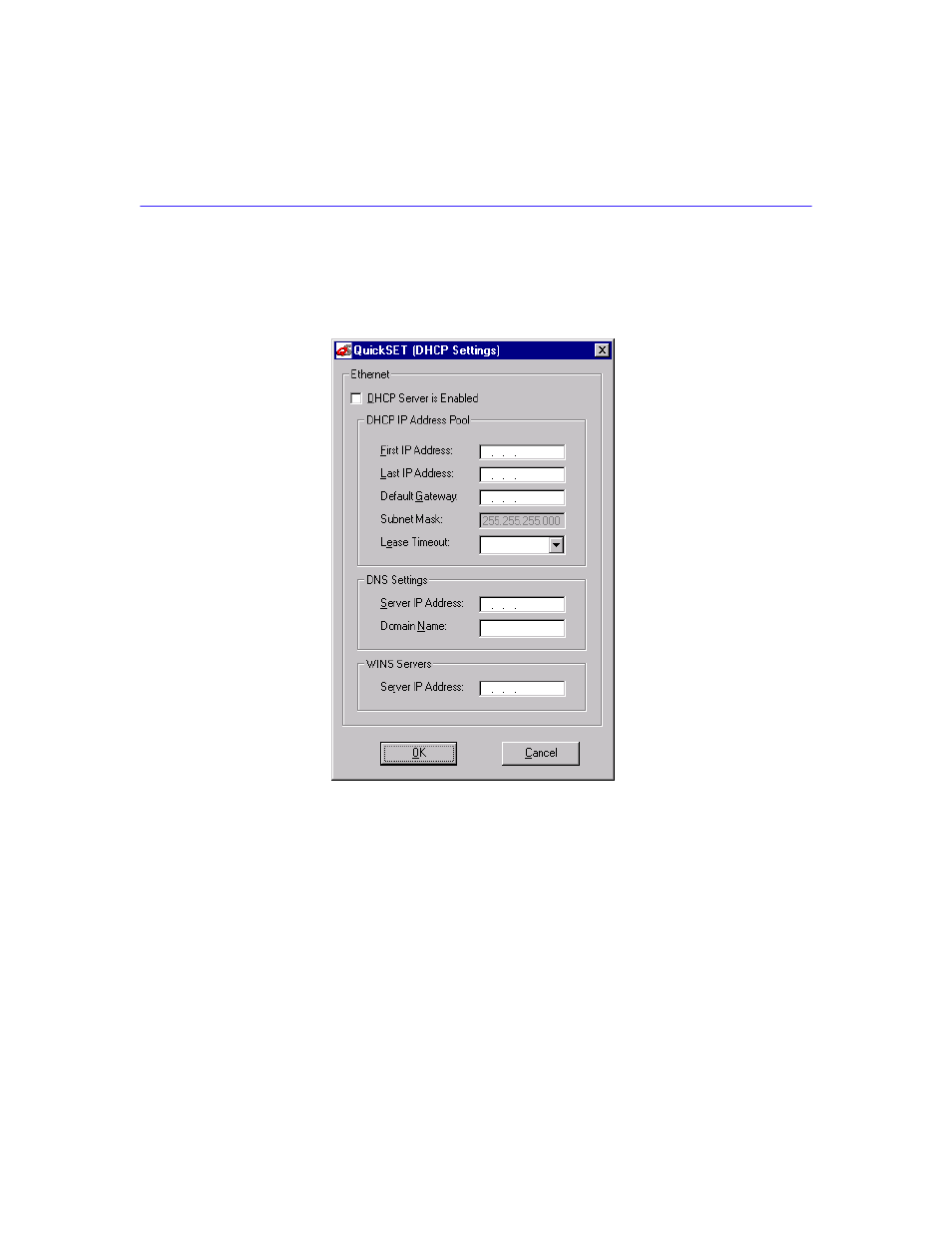

Figure 39 DHCP Settings Configuration Window
The following definitions explain the fields in the DHCP Settings configuration window:
DHCP Server is Enabled — Check this box to allow the HSIM-W6 to act as a DHCP server.
DHCP IP Address Pool — A set of contiguous IP addresses that can be assigned by the
HSIM-W6 to devices requesting an IP address.
Default Gateway — A location to send any packets that are not assigned to your subnet.
Subnet Mask — The subnet mask for the default gateway (automatically set).
