Host Map Window
The Host Map window shown in Figure 36 displays after clicking on the Host Map... button in
the (IP/IPX) Routing configuration window. Host Map entries are used for IPX routing using
Frame Relay Protocol only. The IPX Host Map is a database of remote IPX hosts, defined
(generally) by the WAN network number and MAC address, and (more specifically) by the
Interface Number and Data Link Connection Identifier (DLCI). The DLCI and Interface Number
define the switched connection to the Telco Cloud. Use this window to configure IPX routing, and
configure a DHCP server IP address. Enter the remote WAN MAC address and the remote
Router’s WAN Network number.

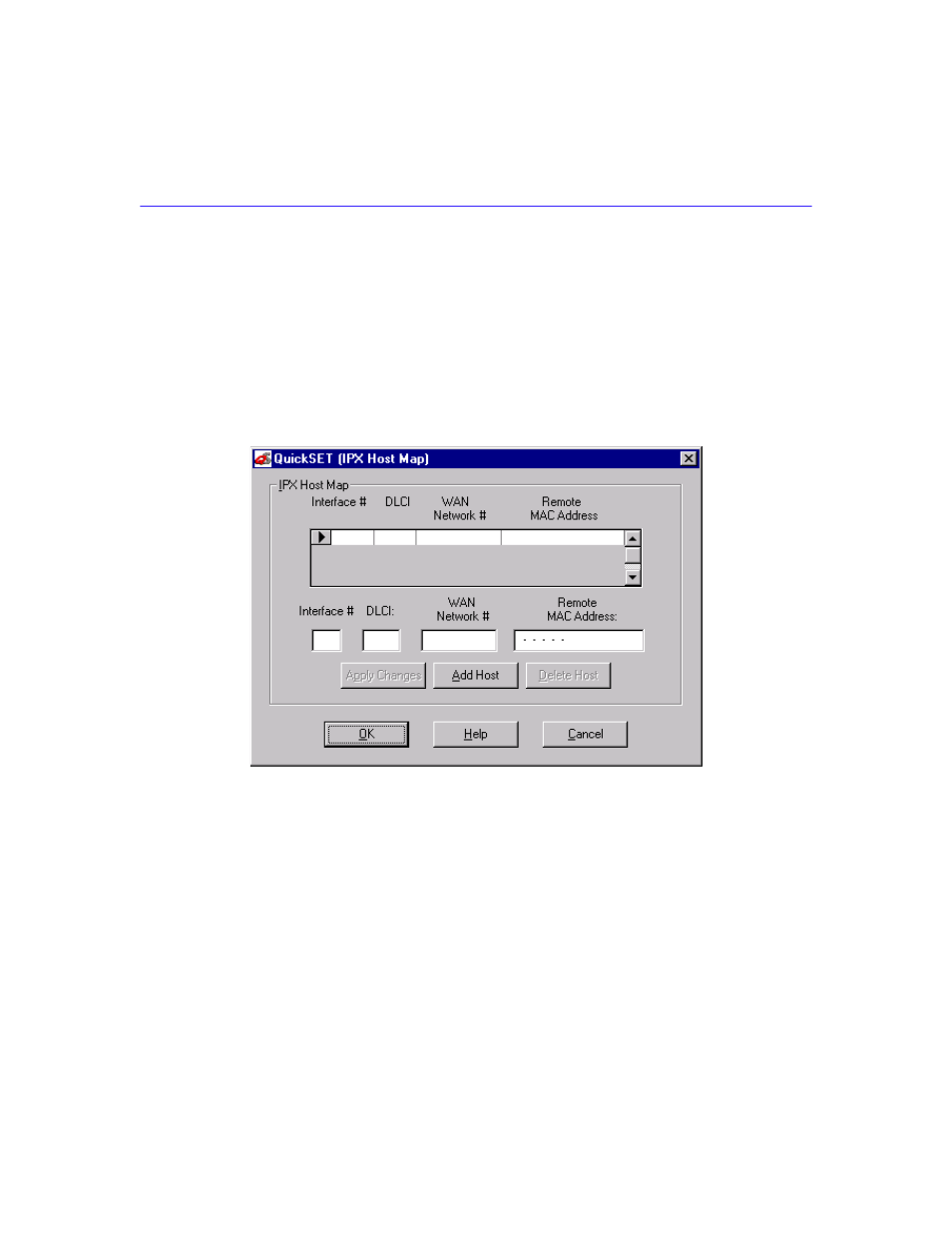

Figure 36 Host Map Window
Interface # — Displays the active interface number. The interface number is a two-digit decimal
number related to the Frame Relay time slot.
DLCI — Displays the Data Link Connection Identifier. Use this field to enter the DLCI, which is a
four-digit decimal number corresponding to the WAN virtual circuit connection to the Telco Cloud
WAN Network # — Displays the active IPX network number of the WAN connection. Use this
field to enter the WAN Network number.
