Page 114
Chapter 6: HSIM-W6 Configuration with QuickSET
100
HSIM-W6 User’s Guide
Advanced Routing Configuration Window
The Advanced Routing configuration window shown in
displays after clicking on the
Advanced button in the (IP/IPX) Routing configuration window. Use this window to enable RIP
routing, configure a Dynamic Host Configuration Protocol (DHCP) server on the HSIM-W6, set
an IP address for a remote DHCP server, or set up Network Address Translation. If you wish to run
your WAN connection in numbered mode, enter the Local WAN IP address and subnet mask for
Numbered Mode or leave these fields blank for Unnumbered Mode.

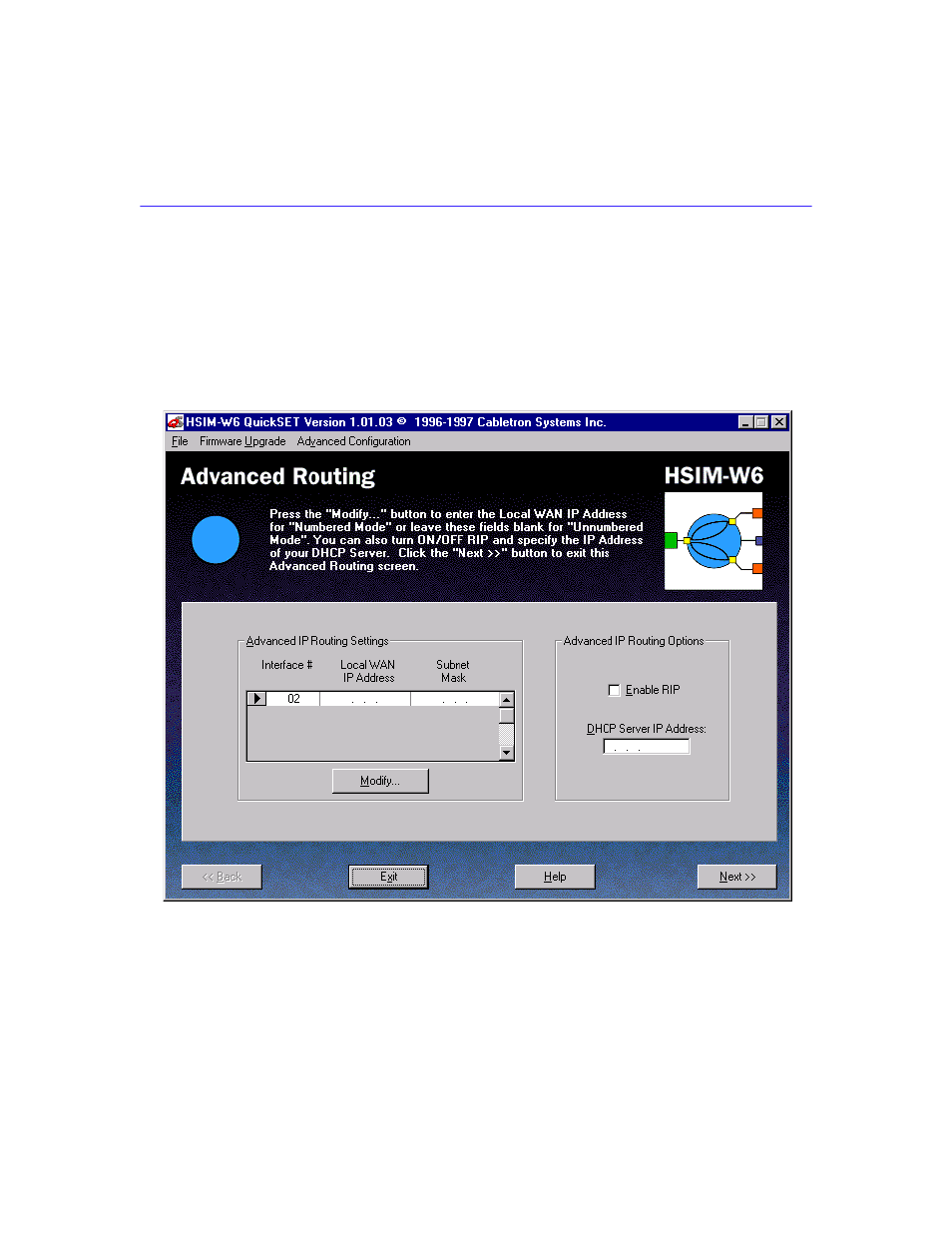

Figure 37
Advanced Routing Configuration Window
