HSIM-W6 User’s Guide 197
9
Troubleshooting
Use this chapter in conjunction with the LANVIEW status monitoring and diagnostic LEDs on the
HSIM-W6 to diagnose power failures, cable faults and link problems.
Figure 72 shows the front
panel LEDs. Table 24 through Table 33 describes the LED states.
If you are having difficulty installing and configuring the HSIM-W6, perform the following steps:
• Review the HSIM-W6 QuickSTART Guide to insure proper installation.
• Check that all cables and connectors have been attached properly.
• Verify that power has been applied to the HSIM-W6.

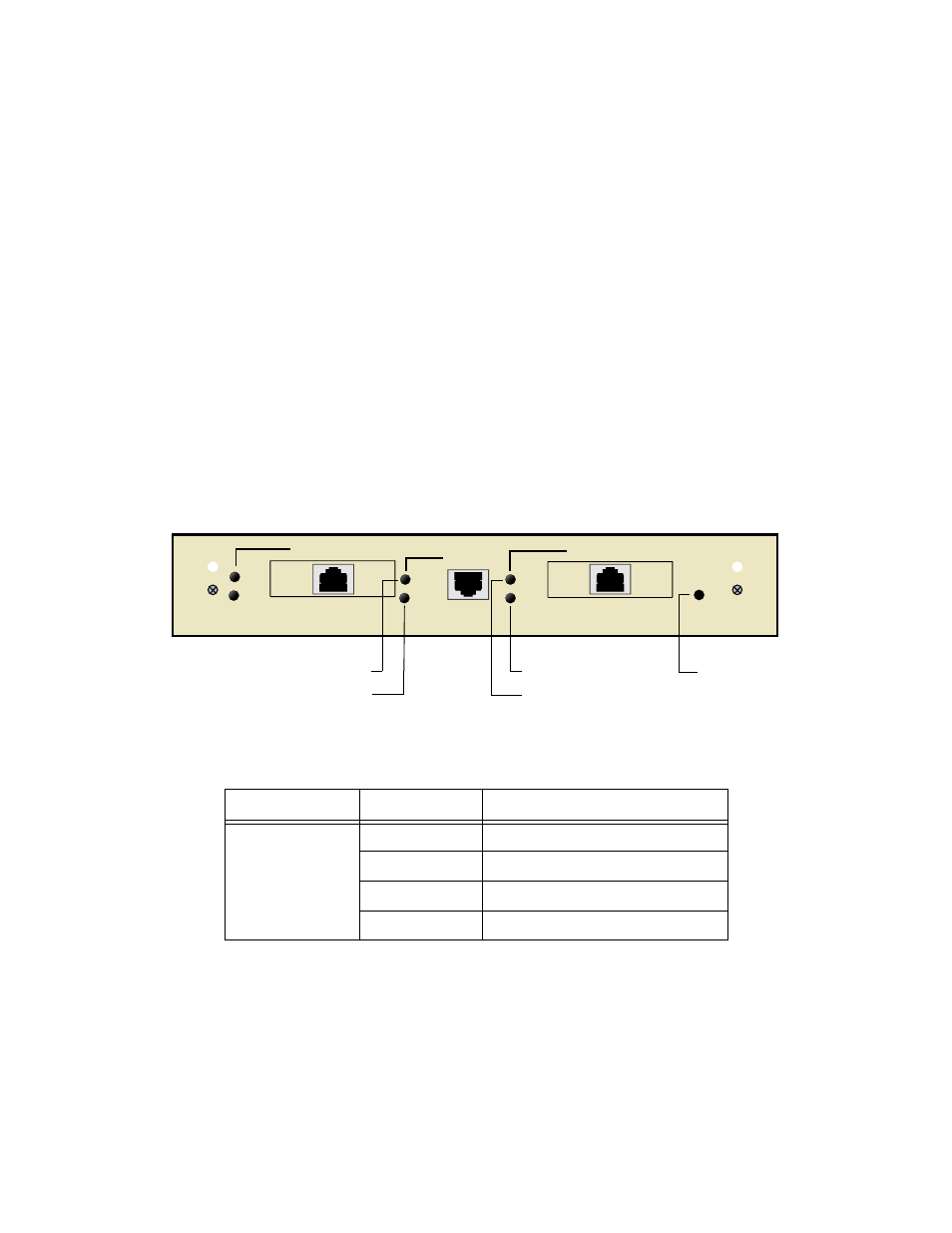

Figure 72 HSIM-W6 Front Panel LEDs
Table 24 HSIM-W6 Hardware LED States
LED Color State
Processor (CPU)
OFF Power Off
RED Fault condition detected
AMBER Testing in progress
GREEN Functional
WIDE AREA1 WIDE AREA2 HSIM-W6
225700-LEDs
TELCO TELCO
CPU LNK
STS
LNK
STS
LNK
STS
ASYNC
Link Status
Link Status CPU
