HSIM-W6 User’s Guide 29
4
Planning for HSIM-W6 ISDN Configuration
This chapter explains the HSIM-W6 ISDN-BRI configuration process and terminology. It also
describes the information that is required for configuration.
Configuration Process and Terminology
During configuration, you specify information identifying the HSIM-W6 and define the LAN and
WAN connections of the HSIM-W6. All of the remote routers to which this device may connect
are added to a database called the remote router database that resides in the HSIM-W6. Each
remote router entry in the database defines the connection parameters, security features, route
addressing and bridging function for the remote router (see the example in
Figure 2 ). Routing and
bridging are controlled by specific remote router entry information as well as general controls that
are set after all other information is configured.

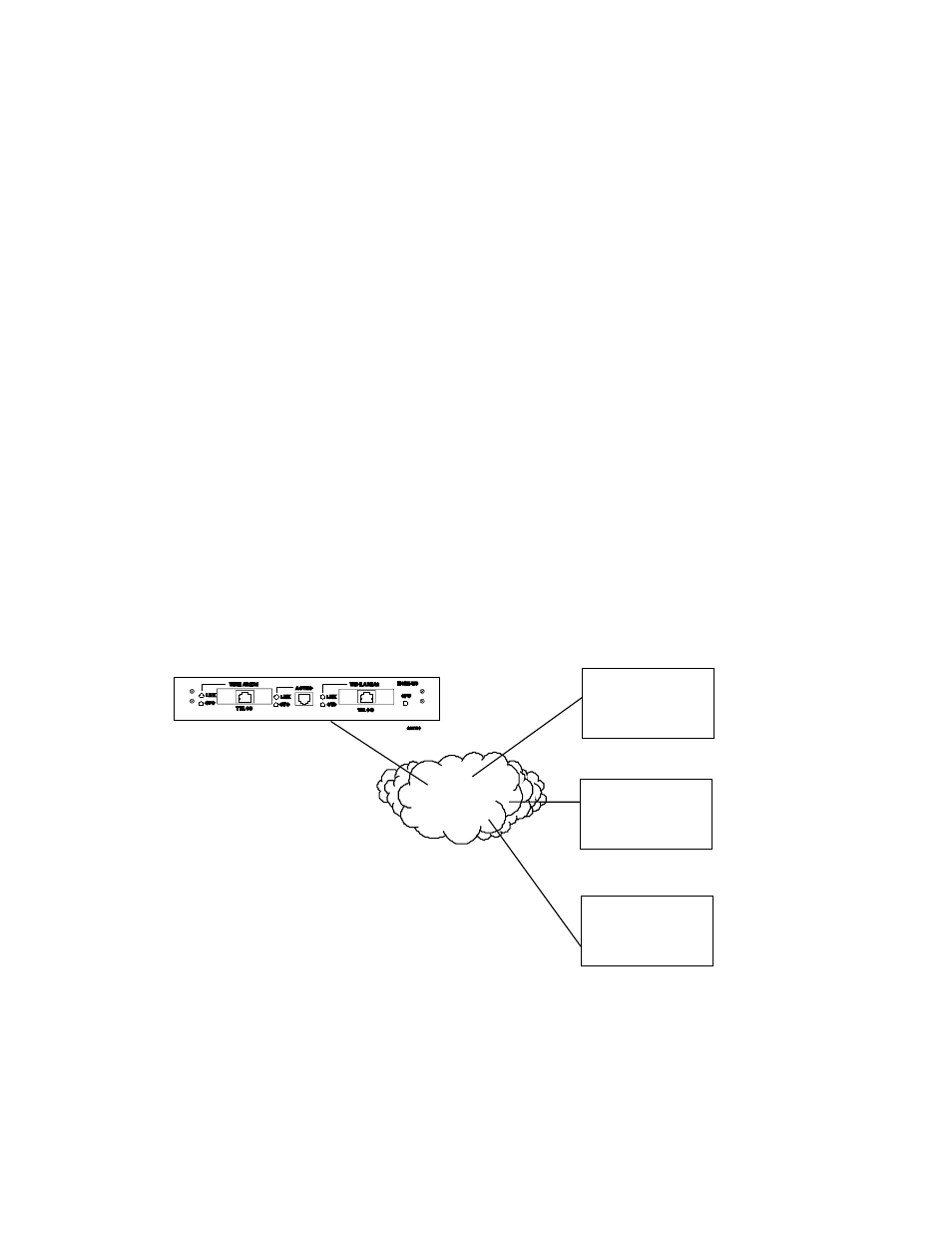

Figure 2 Router A Configuration
CONFIGURATION PROCESS FOR ROUTER A
REMOTE ROUTERS
ROUTER B
ROUTER A
ROUTER C
ROUTER D
ISDN
SYSTEM SETTINGS
ISDN SETTINGS
ETHERNET LAN SETTINGS
REMOTE ROUTER DATABASE
REMOTE ROUTER B
REMOTE ROUTER C
100_07
HSIM-W6
