Chapter 6: HSIM-W6 Configuration with QuickSET

HSIM-W6 User’s Guide

Wide Area T1 Configuration Window

The Wide Area T1 configuration window shown in

Figure 22

displays after clicking on the

Next>> button in either the HSIM configuration window or the Time Slot (Frame Relay or PPP)
configuration window, depending on whether you have installed one or two WPIMs in the
HSIM-W6, and the order that you are configuring them.

This section explains how to configure the HSIM-W6 T1 WAN port using QuickSET.

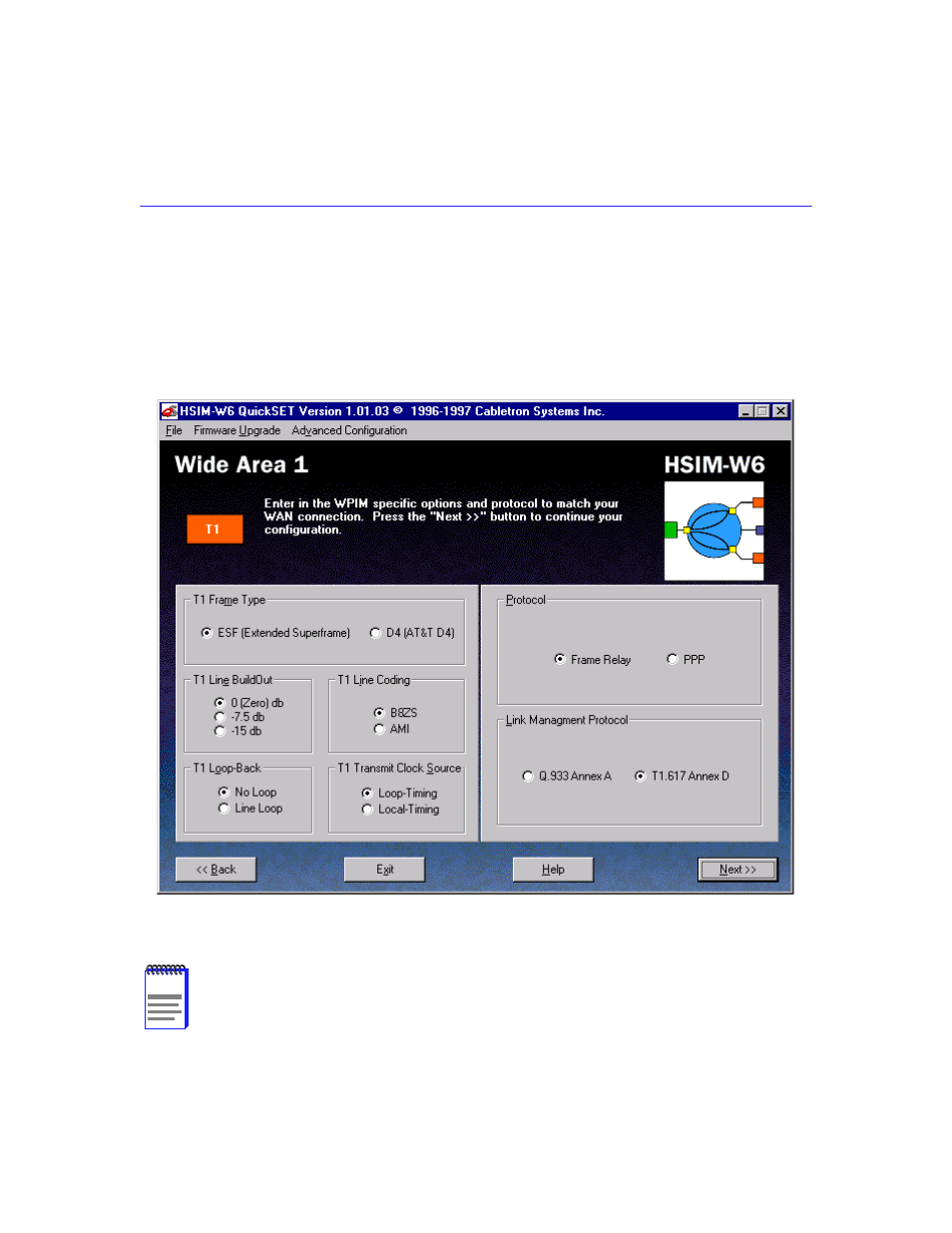

Figure 22

Wide Area T1 Configuration Window

NOTE

The service provider (i.e., AT&T, Sprint, MCI, etc.) determines the settings for the
following fields. Consult the service provider for the correct settings.
