Chapter 6: HSIM-W6 Configuration with QuickSET
104 HSIM-W6 User’s Guide
NAT Settings Configuration Window
The Network Address Translation (NAT) Settings configuration window shown in Figure 40
displays after clicking on the NAT Settings... button in the Advanced Routing configuration
window. The NAT Settings configuration window is used to set up Network Address Translation
on your Ethernet port.

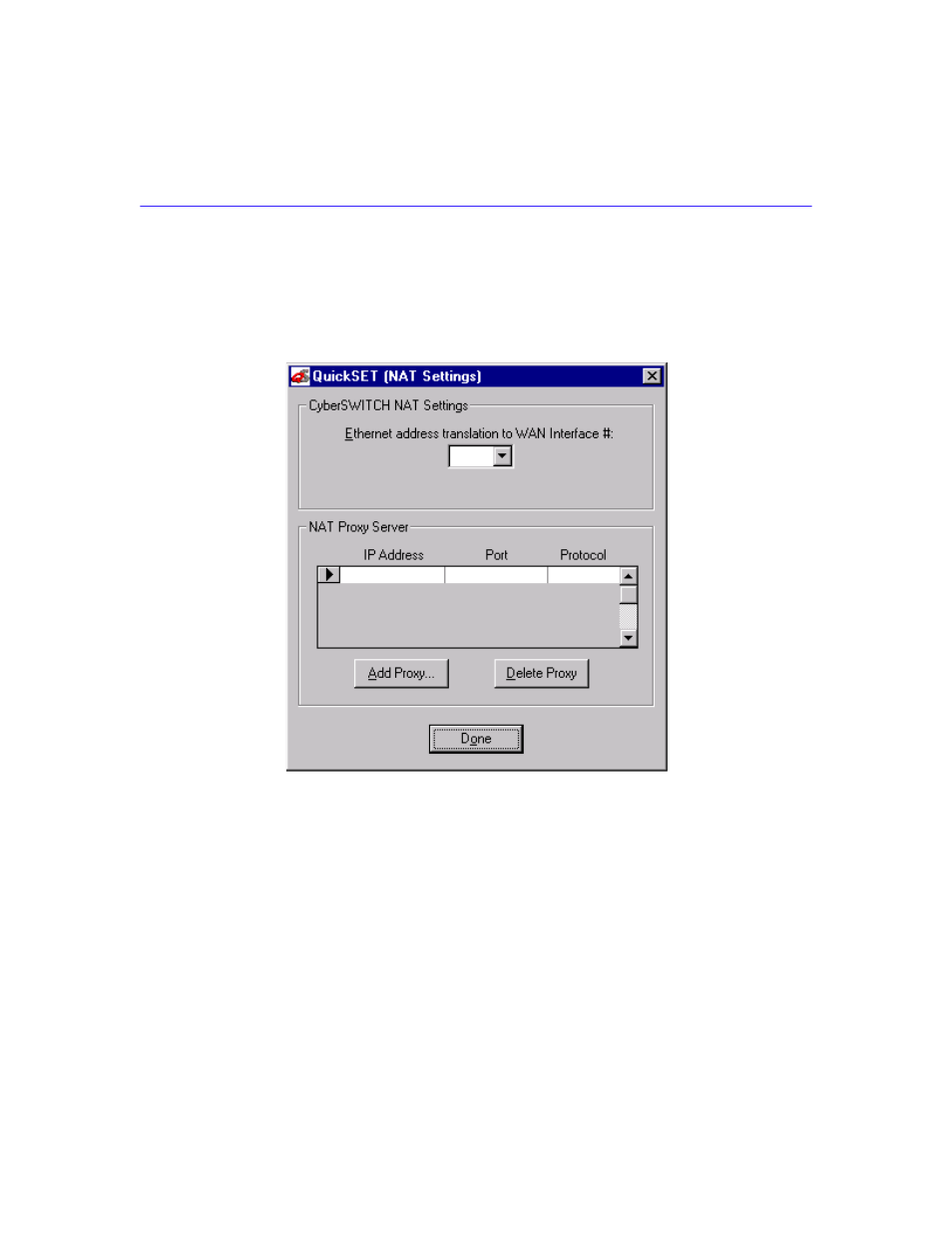

Figure 40 NAT Settings Configuration Window
The following definitions explain the fields in the NAT Settings configuration window:
Ethernet address translation to Interface # — Allows you to set up NAT on your Ethernet
port. The pull-down menu is used to disable (OFF) or enable NAT. To enable NAT, click the
pull-down menu button and enter an interface number to run NAT through.
Add Proxy... — Allows you to add NAT proxy servers. Click the Add Proxy... button and a Add
NAT Proxy Server window ( Figure 41 ) will display. Enter an IP address, and select a Port
number/type and a Protocol for each server entry.
