Chapter 6: HSIM-W6 Configuration with QuickSET
78 HSIM-W6 User’s Guide
Wide Area DDS Configuration Window
The Wide Area DDS configuration window shown in Figure 26 displays after clicking on the
Next>> button in either the HSIM configuration window or the Wide Area (Frame Relay or PPP)
configuration window, depending on whether you have installed one or two WPIMs in the
HSIM-W6, and the order that you are configuring them.
This section explains how to configure the HSIM-W6 Wide Area DDS port using QuickSET.

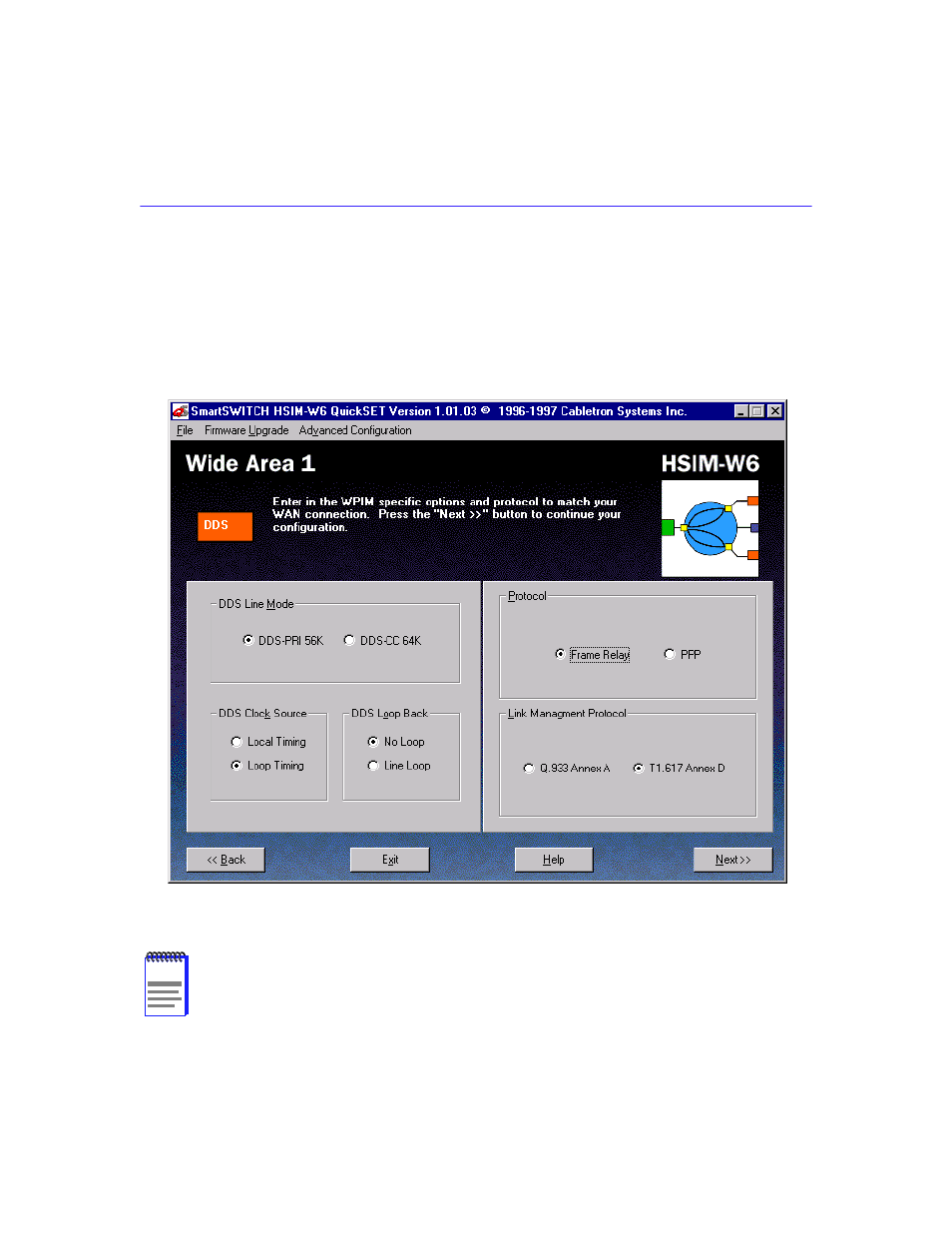

Figure 26 Wide Area DDS Configuration Window
NOTE
The service provider (i.e., AT&T, Sprint, MCI, etc.) determines the settings for the
following fields. Consult the service provider for the correct settings.
