Sensor Installation and Connection 3-15

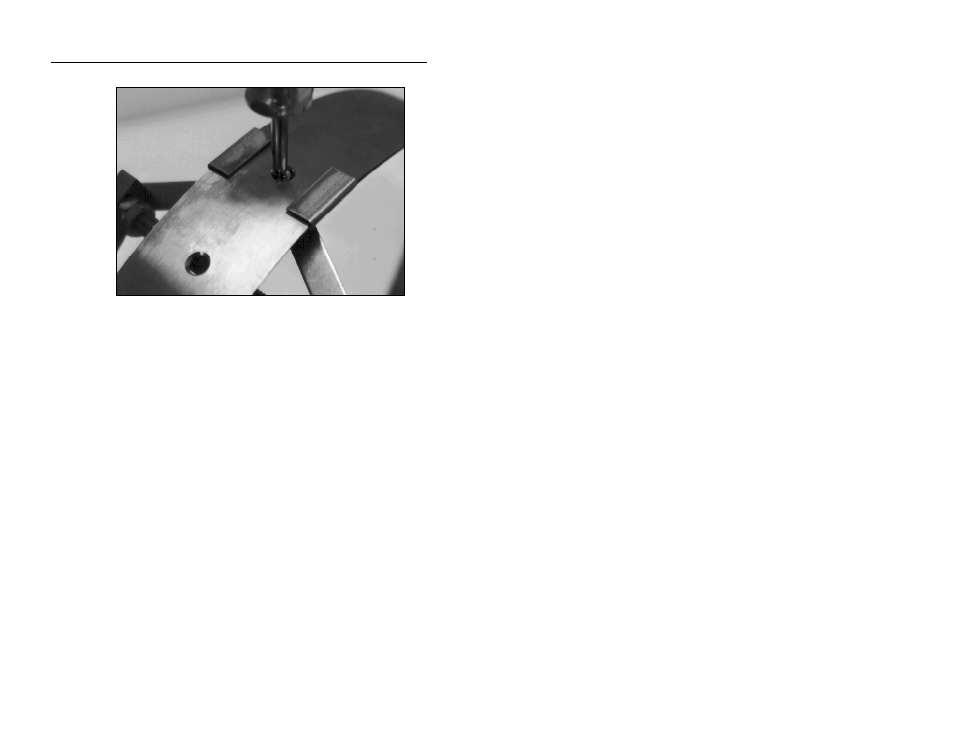

Tightening the spreader mechanism screw and hex nut
19. Insert the second spreader mechanism screw through the
following hole based on the ring type:
Overlapping
Appropriate ring size adjustment hole on
the outside of the ring
Non-overlapping
Last hole on the other free end of the
ring (inserting the screw from the outside of the ring)
20. Slip the large washer onto the screw on the inside of the ring.
