Configuration and Activation 6-29
Click on the Close button to exit the Ultrasonic 1 device
dialog and return to the Monitor Diagnostics dialog.
4. (applies only to the Velocity Device) Run diagnostics on the
velocity
device in the following way:
Select the Velocity 1 device from the Diagnose Device
drop-down list, and then click on the Diagnose button.
The Diagnostics dialog displays the current configuration
parameters stored in the LIF for the Velocity 1 device.

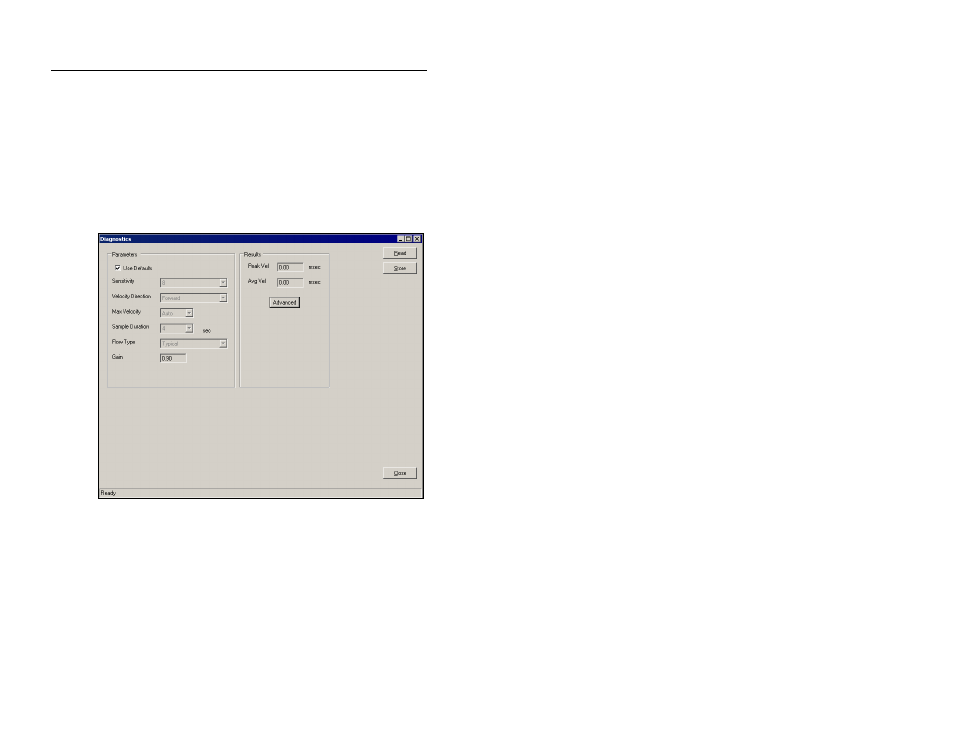

Diagnostics dialog for the Velocity 1 device
Click on the Fire button.
The Results section displays the current velocity of the flow
measured by the velocity sensor.
