ADS FlowShark IS Manual

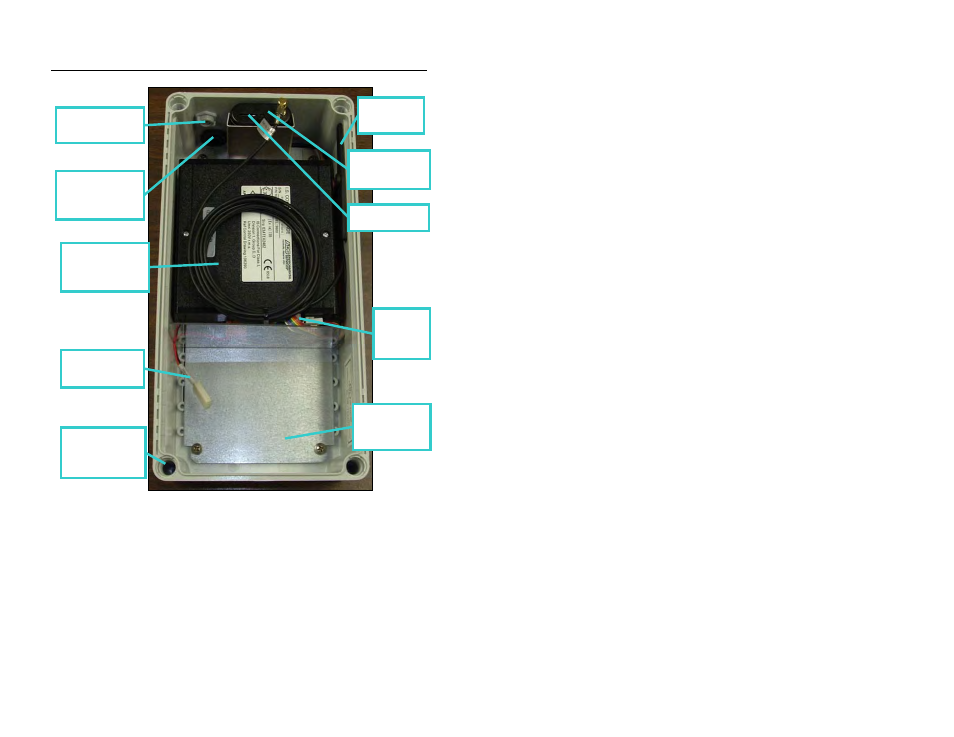

Inside component view of EMU box
1. Unscrew the 4 large plastic screws on the cover of the EMU
box by hand and remove the cover. Carefully set the cover
aside, taking care not to damage or allow dirt to contact the
cover gasket.
2. Disconnect and remove the battery pack from the EMU or
make sure that external power is disconnected, whichever is
applicable.
Quad-Band
GPRS Modem
SIM Card Slot
Communication
Cable Entry
Fitting
Communication
Interface/
Barrier Box
Modem
Reset
PCB
Battery
Compartment
Plate
EMU Power
Cable
EMU Cover
Screw Holes
(4)
Mini-Wing
Antenna
External Power
Cable Entry
