Sensor Installation and Connection 3-9
assembly process. To assemble a non-overlapping ring,
proceed directly to step 4.
1. Insert the spreader mechanism screw through the hole in the
center of the ring stabilizer. Ensure that the head of the screw
fits into the countersunk hole.

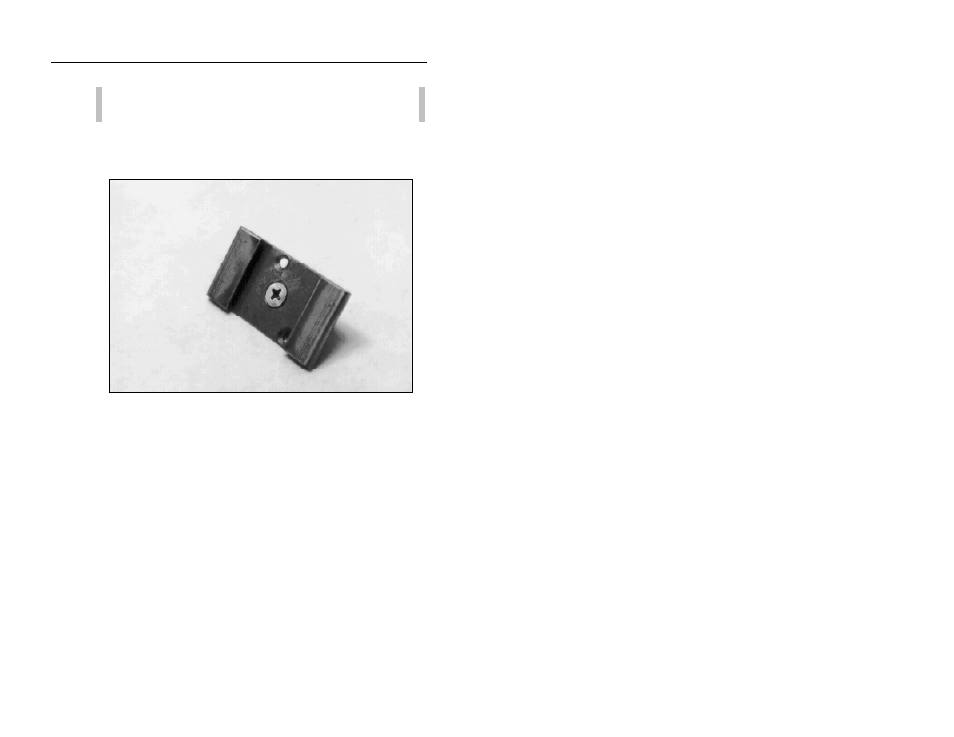

Ring stabilizer with spreader mechanism screw
2. Slide the open end of the ring (end without the welded metal
band) through the flanges in the ring stabilizer, making sure the
flanges face the outside of the ring and the spreader mechanism
screw faces the inside of the ring.
