Configuration and Activation 6-39

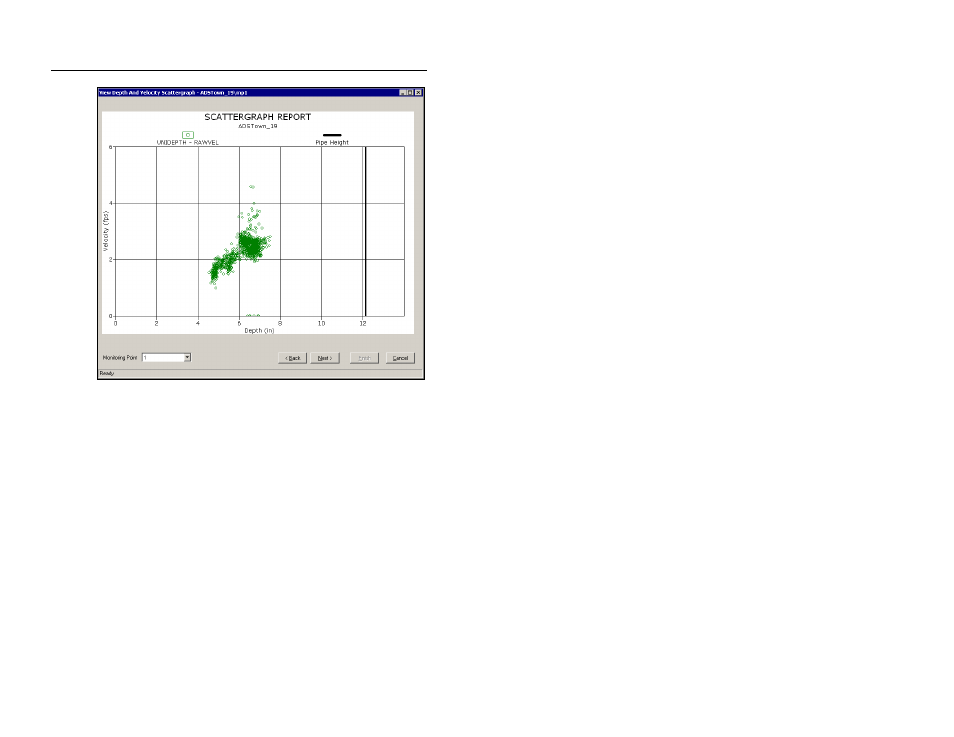

View Depth and Velocity Scattergraph – [location name] dialog
8. Review the data on the scattergraph, and then click on the Next
button. Under optimal conditions, the data on the graph should
reveal velocity increasing with depth.
The View Ultrasonic and Pressure Scattergraph – [location
name] dialog displays the collected ultrasonic and pressure
depth data in scattergraph format.
