Main Tasks to Complete Step 1

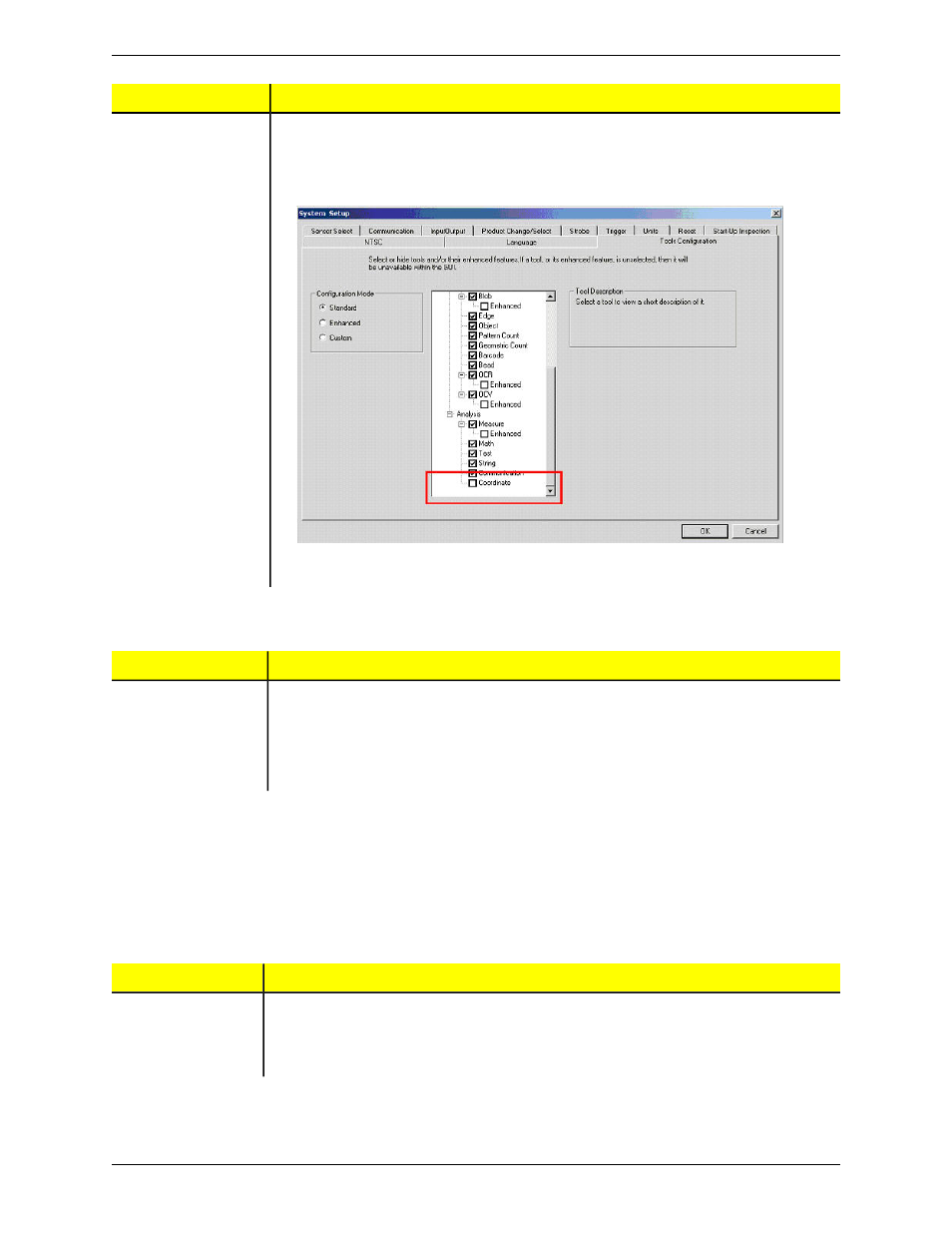

3. Scroll down to the Coordinate Tool, and then select the checkbox next to it, as shown
below.
4. Click the OK button to close the Tool Configuration dialog.
Main Tasks to Complete Step 2
Create a New
Inspection using Setup.
1. In the PresencePLUS GUI, create a new inspection by pressing the Setup button in the
upper-left corner of the GUI.
2. Capture an image of the part to locate.
3. Press the Goto Tools button in the lower-right corner of the Setup tab.
Main Tasks to Complete Step 3
Add a Geometric
Find tool to locate the
1. In the PresencePLUS GUI, click the Location Tools tab.
part within the
field-of-view.
