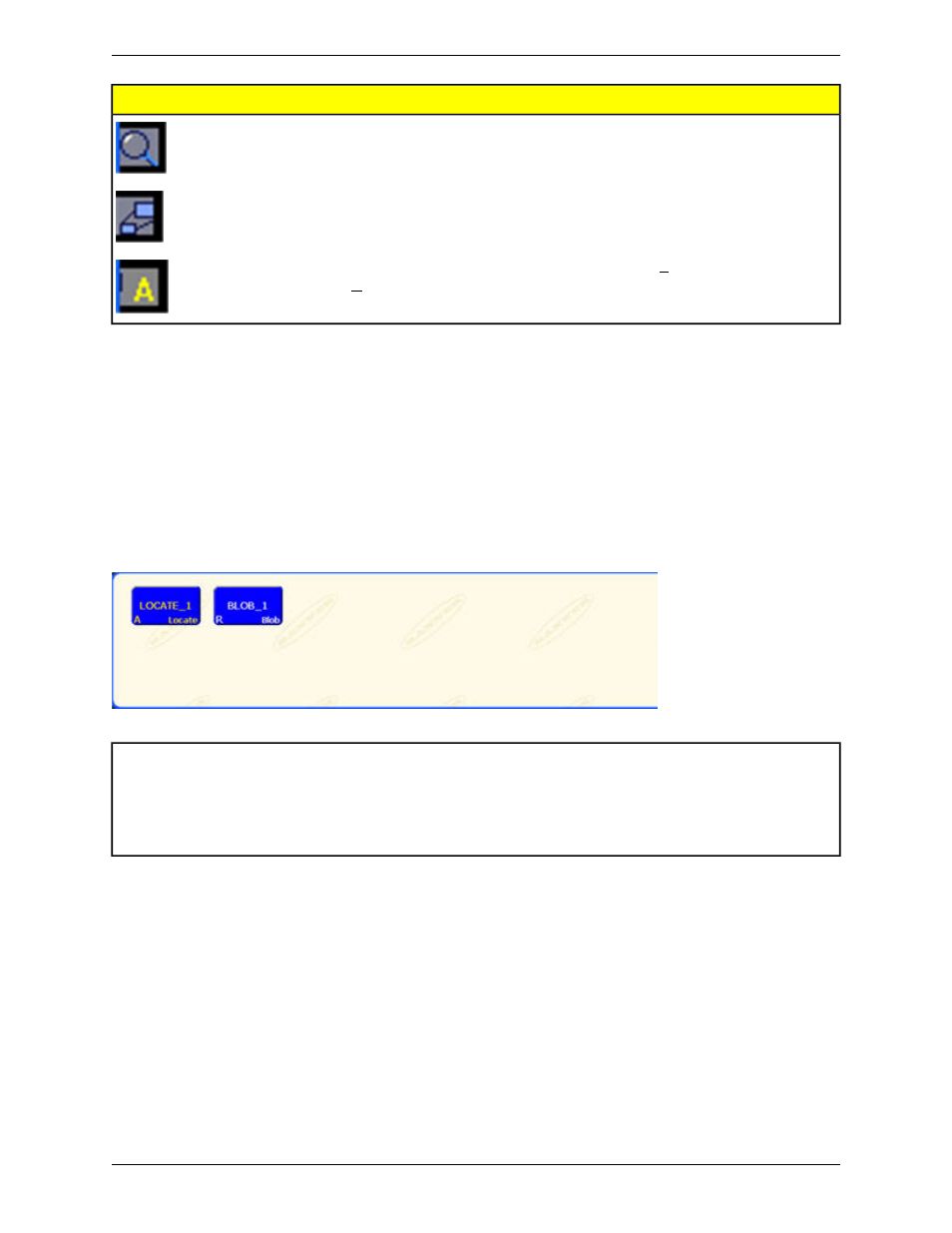

Description Icon
Zoom -- toggles zoom control. When enabled, click on the image window to zoom in and
right-click to zoom out. This button is active when an image is displayed in the Image
window.
Expand Image -- toggles the size of the Image window between maximum and minimum.
Selected ROI / ALL ROIs -- toggles between the currently S elected Region of Interest
(ROI) and A ll ROIs.
2.2.3 Navigation/Results Window
The Navigation/Results window, at the bottom of the screen, displays tool navigation buttons or inspection results
files.
Navigation Buttons
Clicking on the Tools button in the Main Menu toolbar brings up the tool navigation buttons in the Navigation/Results
window. When setting up or using tools, click on any tool navigation button to get the corresponding tab in the
Configuration window.
Tool name LOCATE_1 (or BLOB_1)
Absolute A
Relative R
Tool type Locate (or Blob)
Absolute and Relative Tools
An absolute tool’s Region of Interest (ROI) does not move in the image window. A relative tool shifts the ROI from
the previous tool, relative to the position of the part.
The Location tools (for example, Locate) track parts in the Image window, and the Vision tools that follow (for example,
Average Gray Scale and Blob Detect) are relative. A Vision tool that precedes all Location tools will be absolute. Rules
governing whether a tool is absolute or relative are as follows:
• The first Location tool is always absolute.
• All tools following a Location tool are relative to that tool unless they are made absolute themselves, in which case
the chain is broken, and a new chain is started.
• For a Vision tool to be absolute, it must be placed before any Location tools.
