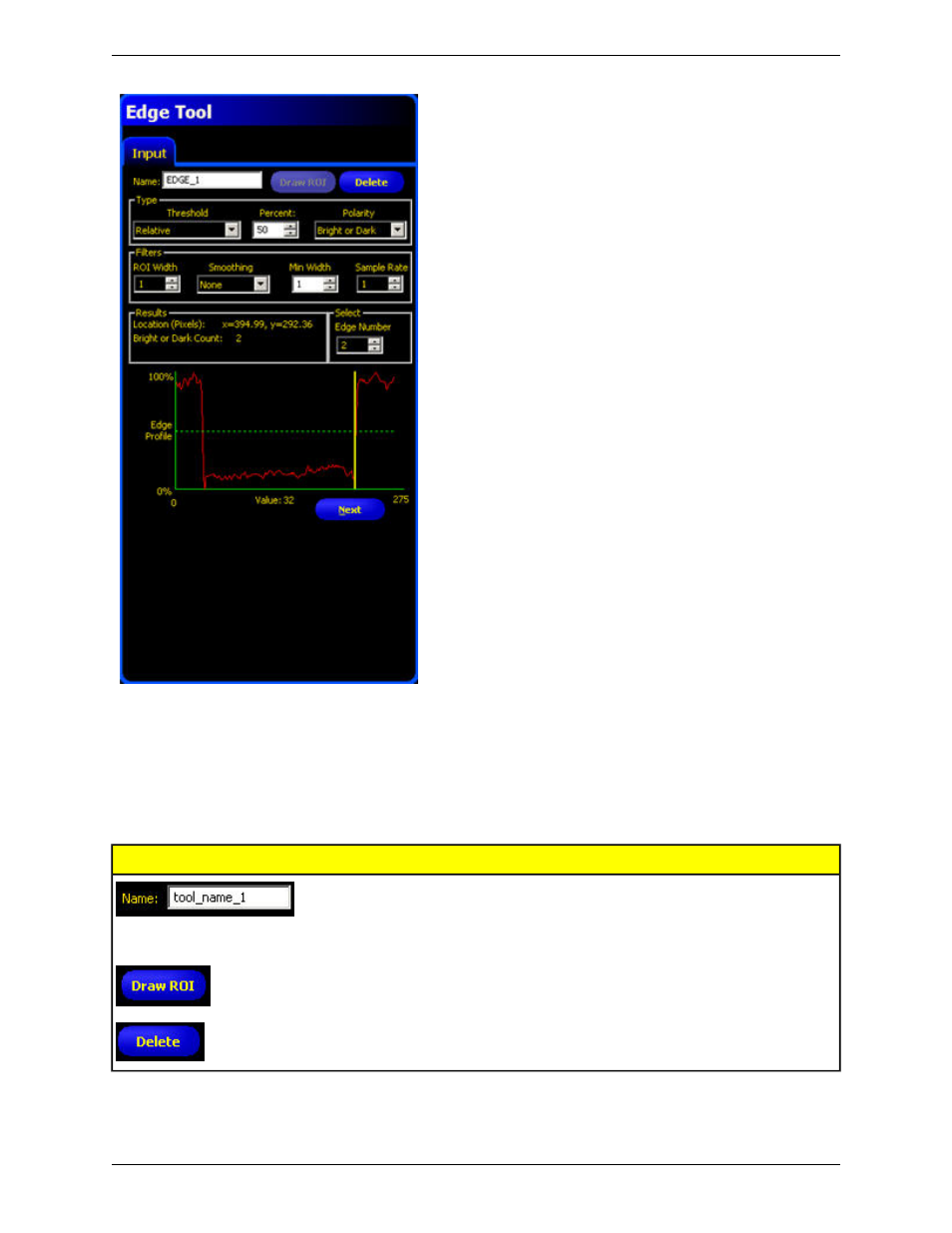

Adding an Edge Tool
1. Click the button of the tool to be added to the inspection.
2. If desired, rename the tool.
3. Draw an ROI.
Description Field/Button
Use this field to rename the tool. The default is tool_name_1, tool_name_2, and
so on, where the default tool_name depends on the tool being created (for example,
locate, edge or the like). The name can have only alphanumeric characters and
underscores with no spaces.
Click this button to add an ROI to an image.
Click this button to remove an ROI from an image.
