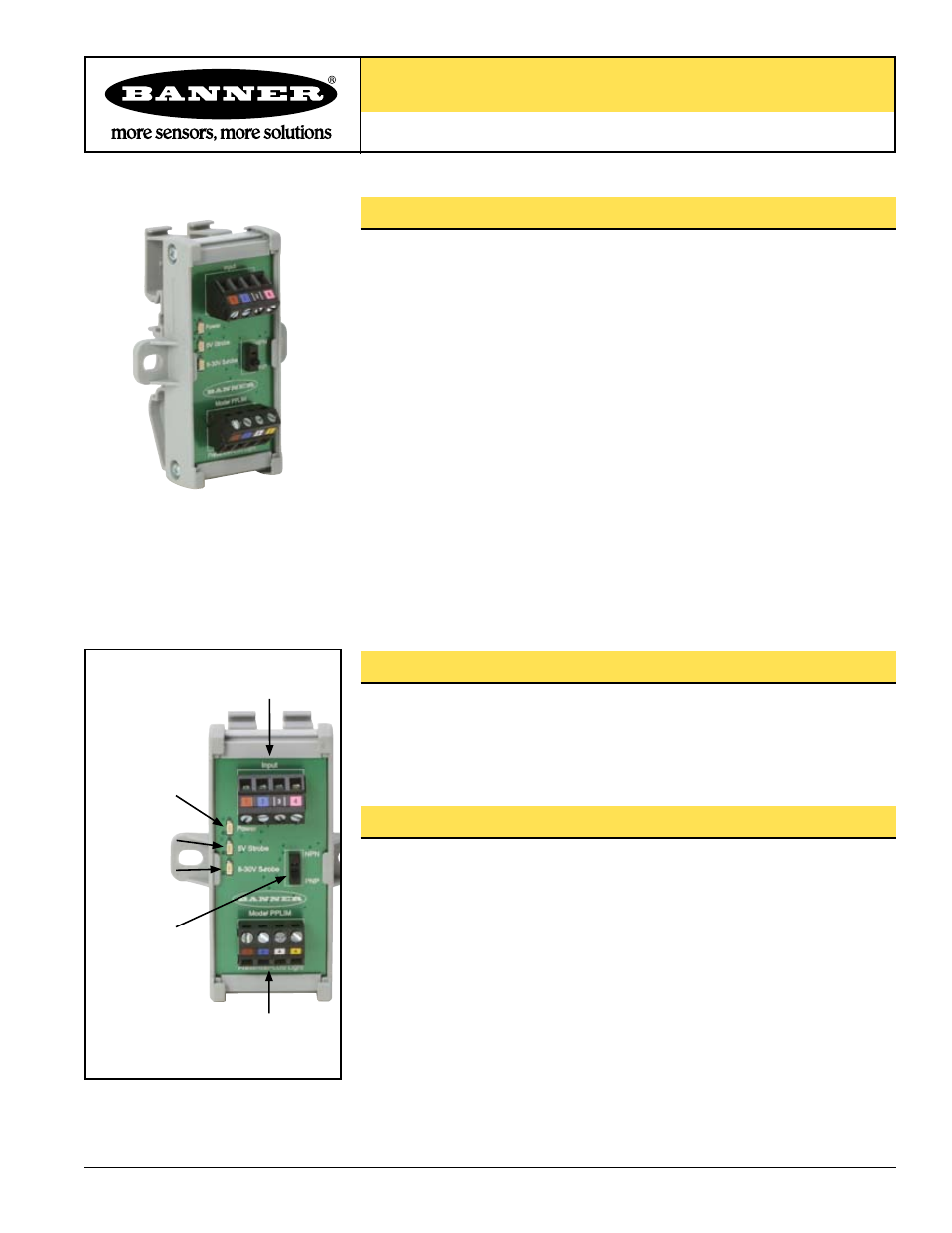

Banner PPLIM Light Interface Module User Manual
Model pplim light interface module, Features, Overview

Printed in USA
07/06
P/N 128190
Model PPLIM Light Interface Module
DC-Powered Interface for PresencePLUS
®
Lights
Features
• Low-cost strobe interface between user’s hardware and PresencePLUS lights
• Separate Strobe Signal inputs:
– 5V TTL signal
– 8–30V dc signal (switch-selectable current sinking/NPN or current sourcing/PNP)
• Two Light Strobe outputs:
– 5V “Active Low” (non-inverting)
– 5V “Active High” (inverting)
• LED indicators for Power and Strobe Signal inputs
• Easy-to-adjust 45° screw terminals for electrical wiring
• Simple 35 mm DIN-rail-mount or wall-mount configuration
Overview
The model PPLIM PresencePLUS Light Interface Module is a passive DIN-rail-mount or
wall-mount module. It enables use of Banner PresencePLUS LED lights with strobe signal
sources other than Banner machine vision sensors, for example, high-end vision systems,
PLCs, photoelectric sensors, or proximity sensors.
Installation
For mounting to a flat surface, unscrew one end cap, slide the DIN clips off of the
housing, and replace the end cap. Use the screw-holes in the end caps for mounting to a
flat surface.
Figure 1. Features
Power LED
5V Strobe
LED
8-30V Strobe
LED
Input Terminal
Block
NPN/PNP
Select Switch
PresencePLUS
Light Terminal
Block
