Banner FLTG Green Filter - Manual

Printed in USA 02/04 P/N 115634 rev. A
200
0
10
20
30
40
50
60
70
80
90
100
300 400 500 600 700 800
Wavelength (nm)
% Transmission
NOTE: Peak wavelength 525 nm
The FLTG Green Filter is designed for use with PresencePLUS. This filter improves
image quality by helping to reduce unwanted ambient light. It passes green and
infrared light while blocking other visible light (see Figure 1).
Banner Engineering Corp., 9714 Tenth Ave. No., Minneapolis, MN 55441 • Phone: 763.544.3164 • www.bannerengineering.com • Email: [email protected]

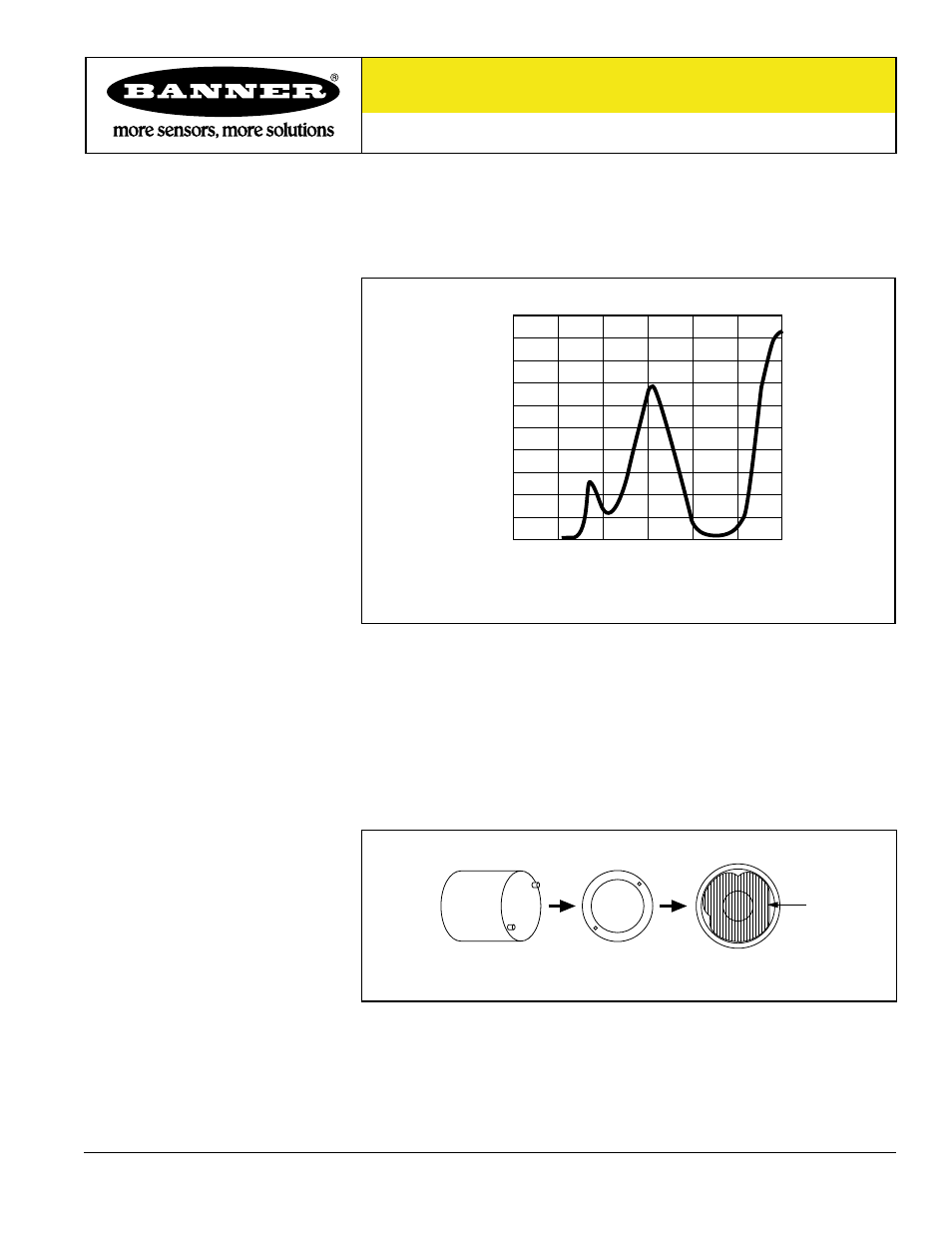

Figure 1. Percent transmission of light wavelengths through the FLTG green filter
Filter
Retainer Ring Retainer Ring Tool
Install the filter behind the camera lens as follows:
1. Remove the lens.
2. Install the filter as shown in Figure 2. Make sure it is fully seated.
3. Using the provided retainer ring tool, thread the retainer ring into the sensor until
it firmly seats the filter.
4. Replace the lens on the camera.
Figure 2. Installing the FLTG green filter on the camera
NOTE: Avoid getting fingerprints on the filter. If necessary, carefully clean the filter
with lens cleaner or window cleaner.
For use with PresencePLUS ®
FLTG Green Filter
