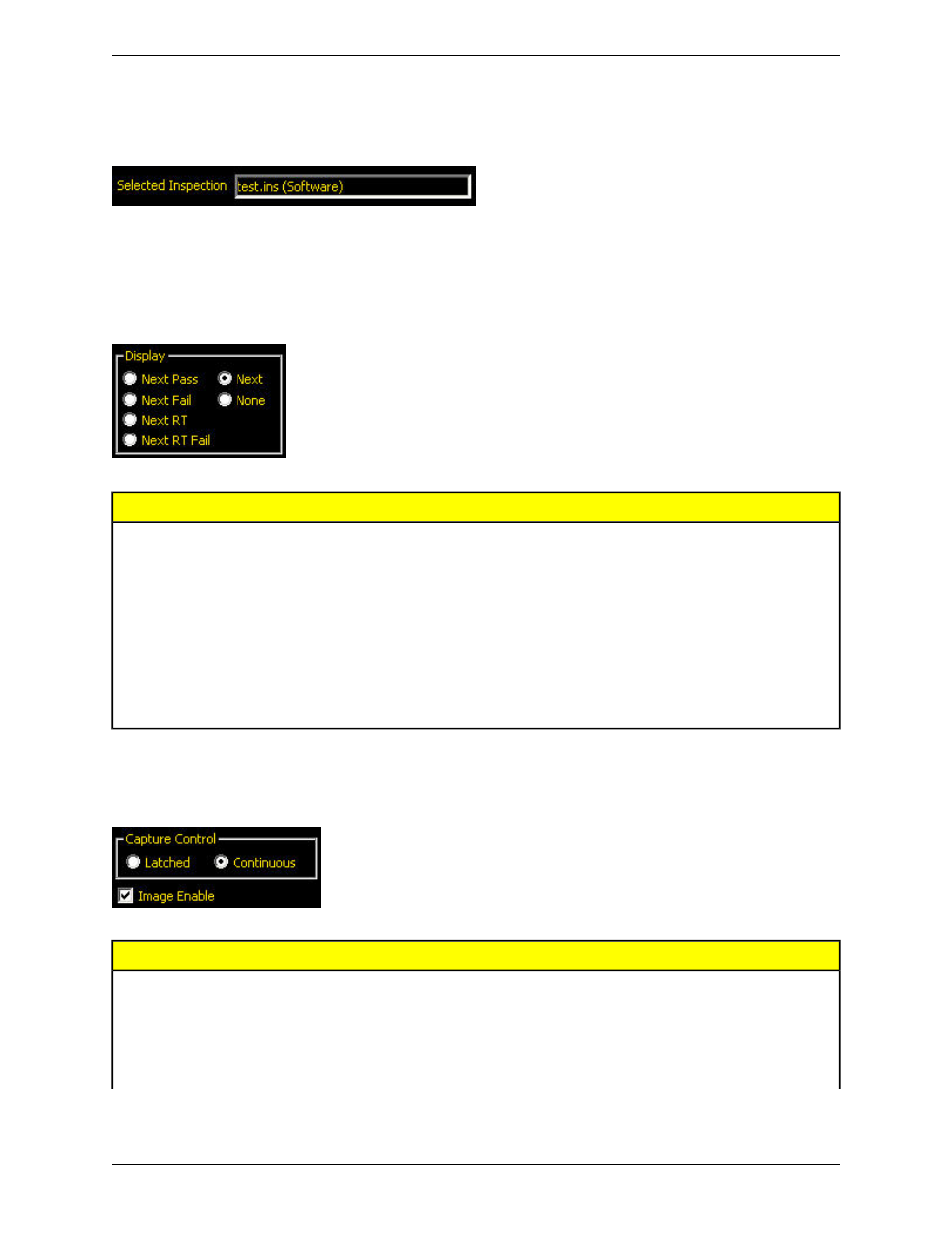

10.1 Selected Inspection
Displays the filename of the selected inspection. The default is the last saved inspection.
10.2 Display
Description Display Option
Display next passed inspection. Next Pass
Display next failed inspection. Next Fail
Display next remotely taught inspection. Next RT
Display next failed, remotely taught inspection. Next FT Fail
Display all inspections. The display is updated continuously, but because of transfer
speed limits, not every image will be displayed. For faster image speed, reduce
the resolution. Next
Display is not updated. None
10.3 Capture Control
Description Capture Control Option
The condition set in the Display field is displayed, or latched, until set. Latched
The condition set in the Display field is displayed. Continuous
Checked: The PC displays an image of the inspection.
Unchecked: The PC will collect the inspection information without an image.
Image Enable
