Description
Feature
BNC adaptor provided
0° C to +50° C (+32° F to +122° F)
Operating Temperature
-20° C to +60° C (-4° F to +140° F)
Storage Temperature
NTCS/PAL Auto Switching
Video System
Selectable on monitor or via remote control (included)
On-screen control: Bright, contrast, color, tint
Control
1.2 lb
Net Weight
15.5 Ethernet Communication Specifications
Use a crossover Ethernet cable for communicating directly with a PC. Use a straight Ethernet cable for communicating
with a network device, such as an Ethernet hub or switch.
Description
Feature
TCP/IP
Protocol
10/100 Mbps
Data Transfer Rate
120 m (393')
Max Cable Length
192.168.0.2
Recommended PC IP
Address
255.255.255.0
PC Subnet Mask
192.168.0.1
Factory Default Sensor IP
Address
RJ-45
Connector
Name
Pin

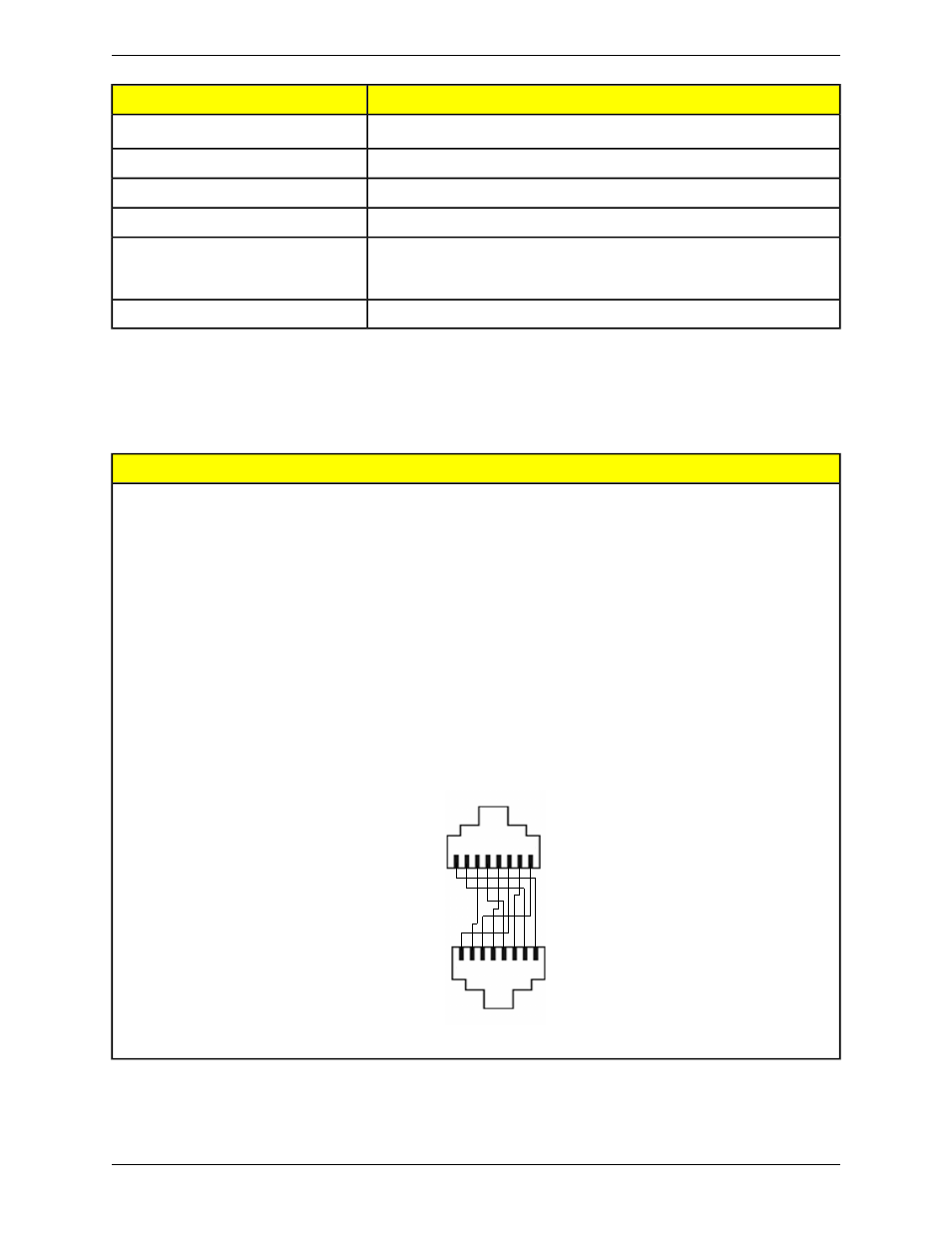

Use RJ-45 network crossover cable for direct connection to a
PC.
Connector Pinout
TXD+
Pin 1
TXD-
Pin 2
1 2 3 4 5 6 7 8
8 7 6 5 4 3 2 1
PC End of Cable
Controller End of Cable
RXD+
Pin 3
Not used
Pin 4
Not used
Pin 5
RXD-
Pin 6
Not used
Pin 7
Not used
Pin 8
