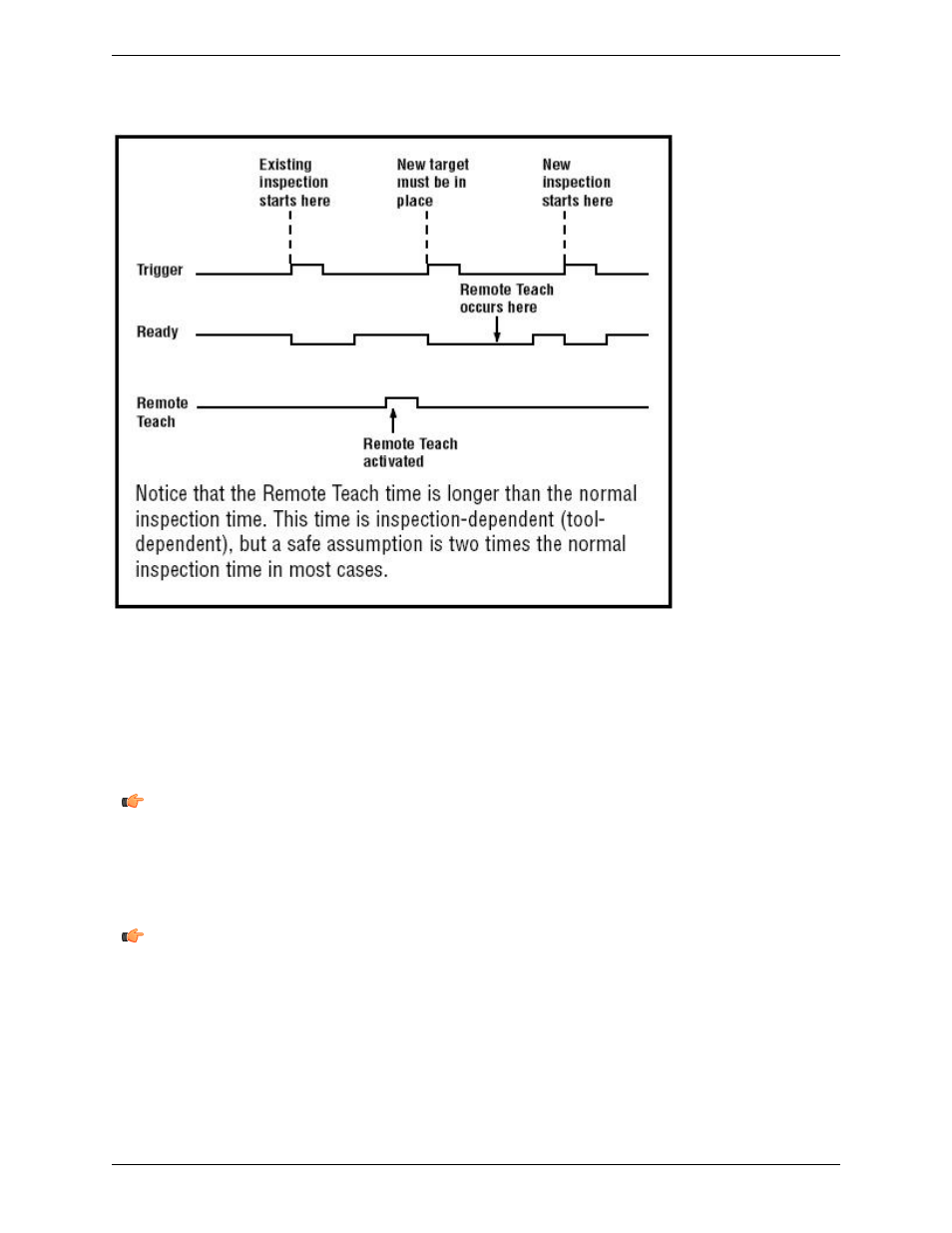

To record the remotely taught inspection, the logging function must be used.
9.4.4 Remote Teach Results
Remote Teach will indicate normal Pass/Fail results. To clarify normal results, the rules are as follows:
• If Location tools were used in the inspection, then they must perform correctly; that is, the Locate tool must find an
edge, and the Vision tool(s) must find a pattern. If they do not perform correctly, the Remote Teach will fail, andthe
inspection will indicate Fail.
Note: If the Remote Teach fails for this reason, then the new pattern will not be taught, and the previous
inspection will still be valid.
• If Location tools were used and they performed correctly or if Location tools were not used, then the Remote Teach
will attempt to update the Vision tool (if enabled). If the Vision tool fails, then the Remote Teach will fail, and the
inspection will indicate Fail.
Note: If the Remote Teach fails for this reason, then the existing inspection is not valid. The Remote Teach
inspection will continue to fail until a new inspection is taught or selected (via Product Change) or until the
Sensor is taken out of Run mode.
• If the Remote Teach is successful, the inspection will indicate Pass, and the new inspection will perform with the
new parameters.
