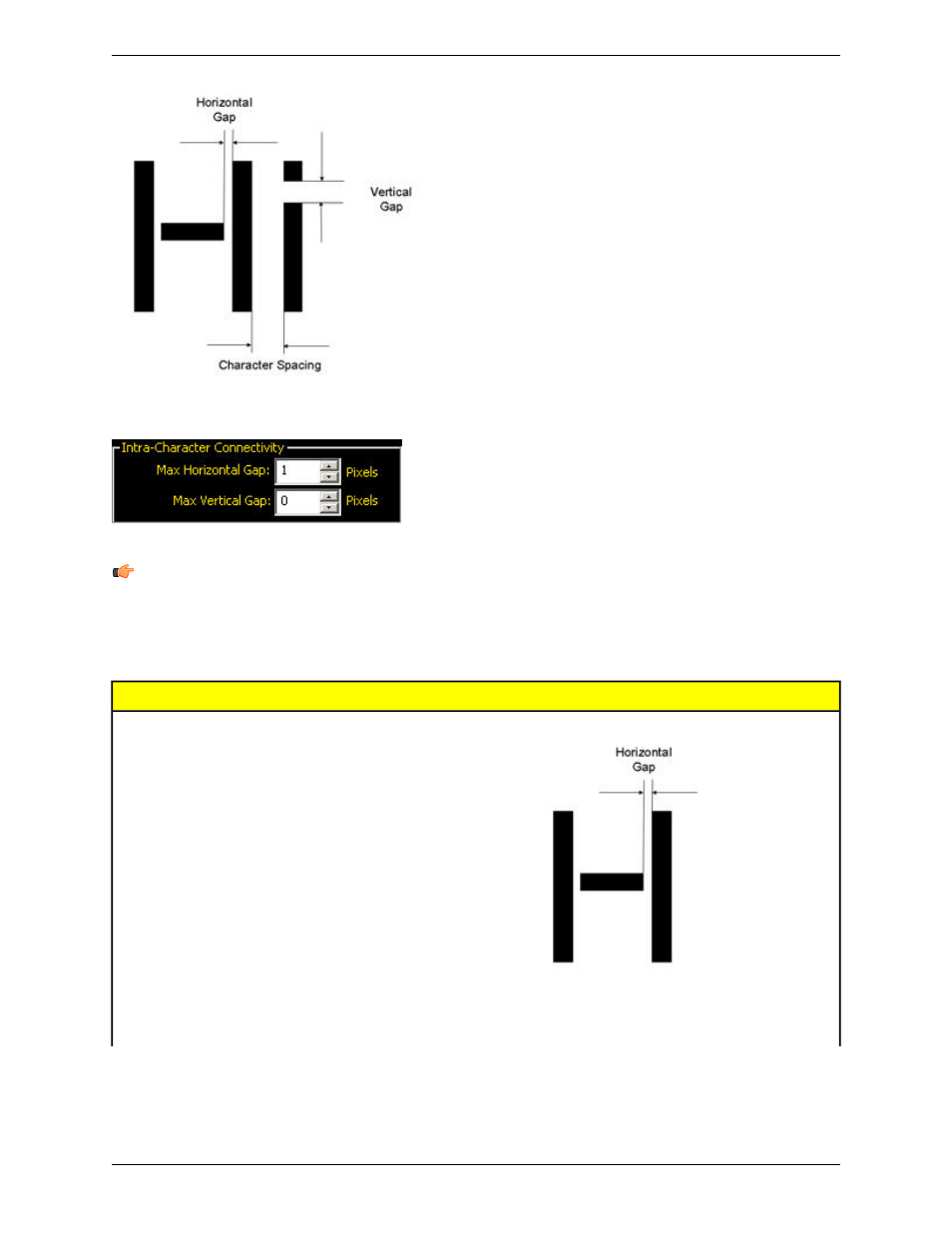

Note: Here "0" vertical gap really means "infinite" vertical gap (but bounded by the ROI); that is, all pixels in a
vertical line can be considered part of the same character.
Parameters
The following are the parameters that you adjust to set Intra-Character Connectivty.
Additional Information Description Intra-Character Connectivity
Use the up or down arrow
controls to set the maximum Max Horizontal Gap
number of pixel spaces that can
exist between two horizontal
character strokes so that the
image is boxed as a single
character image.
Use the up or down arrow
controls to set the maximum Max Vertical Gap
