Connecting the Kinetix 2000 Drive System 97
Wiring 15-pin Panel-mounted Breakout Kit
A panel-mounted breakout kit, catalog number 2090-UXBK-D15xx, is
available. This kit permits connection between a motor feedback device and
the motor feedback (MF) connector. A cable connects between a
panel-mounted terminal block and the 15-pin motor feedback (MF)
connector. Wires from an external motor feedback device interface via the
panel-mounted terminal block.

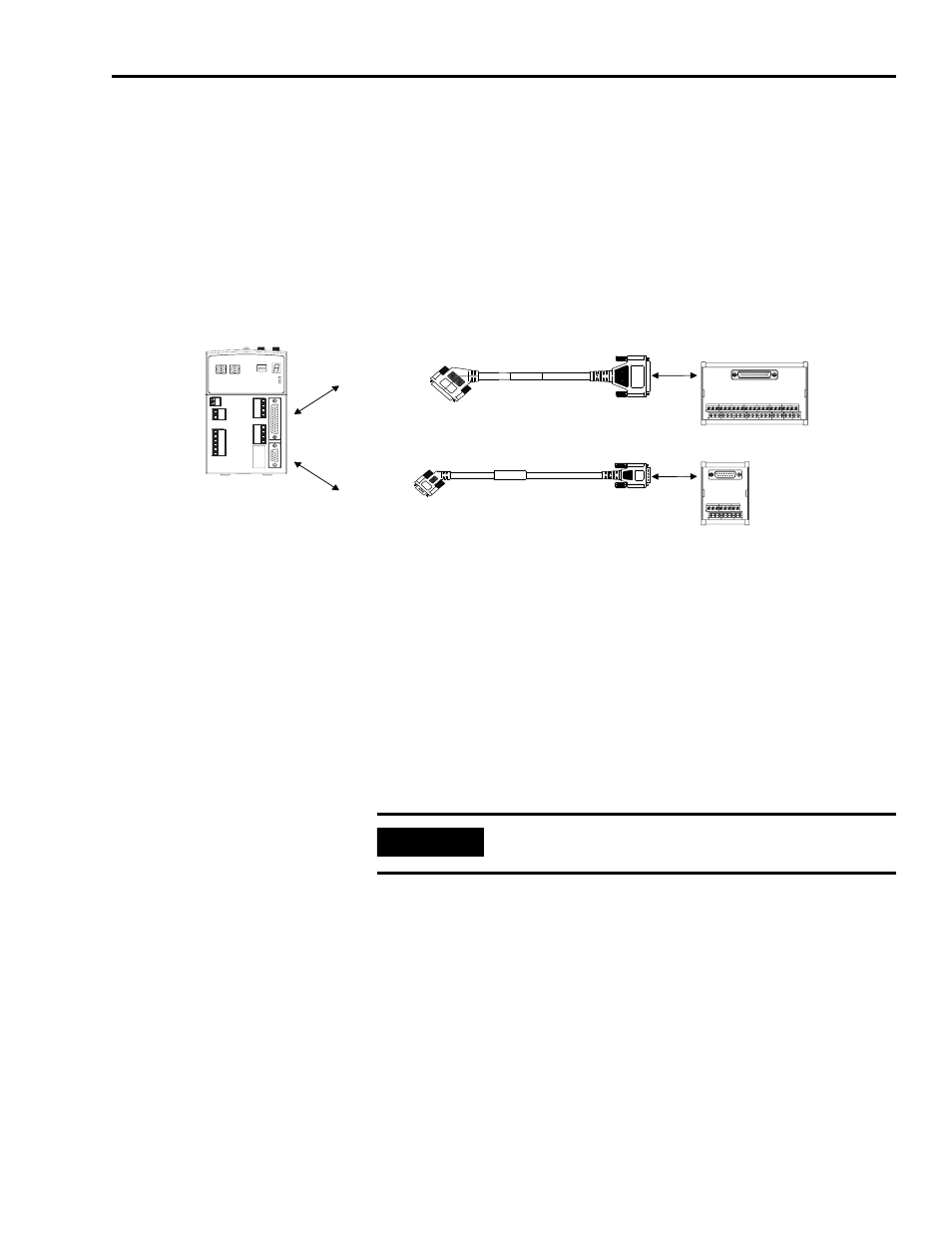

15-pin and 44-pin Breakout Kits for Use with Kinetix2000 Drives
Wiring 44-pin Panel-mounted Breakout Kit
A panel-mounted breakout kit, catalog number 2090-U3BK-D44, is available.
This kit permits connection between external devices and the input/output
and auxiliary feedback (IOD/AF) connector. A cable connects between a
panel-mounted terminal block and the 44-pin I/O and auxiliary feedback (IO/
AF) connector. Wires from external devices interface via the panel-mounted
terminal block.
Kinetix2000 Drive
(2093-AC05-MP x
is shown)
2090-U3BC-D44 xx
Breakout Cable
44 pin
I/O and Auxiliary
Feedback
Connector
2090-U3BB-D44
Panel-mounted
Terminal Block
Wire Terminations
15 pin
Motor
Feedback
Connector
2090-UXBB-D15
Panel-mounted
Terminal Block
Wire
Terminations
2090-UXBC-D15 xx
Breakout Cable
IMPORTANT
The 15-pin and 44-pin breakout blocks accept wire in the range of
4…0.14 mm
2
(12…26 AWG).
