Incremental Indexing
The ULTRA 100 Series drive can be set up as a incremental indexer
by making the hardware connections and performing the software
setup and tuning described below. A connection diagram depicts the
minimum hardware necessary. Interfacing the drive to an external
controller requires similar circuitry from the controller to J1, refer to
“J1 – Controller” on page 6-1. Instructions are provided to configure
the drive using a PC with ULTRA Master software, but the optional
TouchPad also may be used.
The following examples depict a simple incremental index move and a
batched (multiple) move using incremental indexing.
Note: This feature is available only on drives capable of indexing:
1398-DDM-005X, 1398-DDM-009X and 1398-DDM-019X.

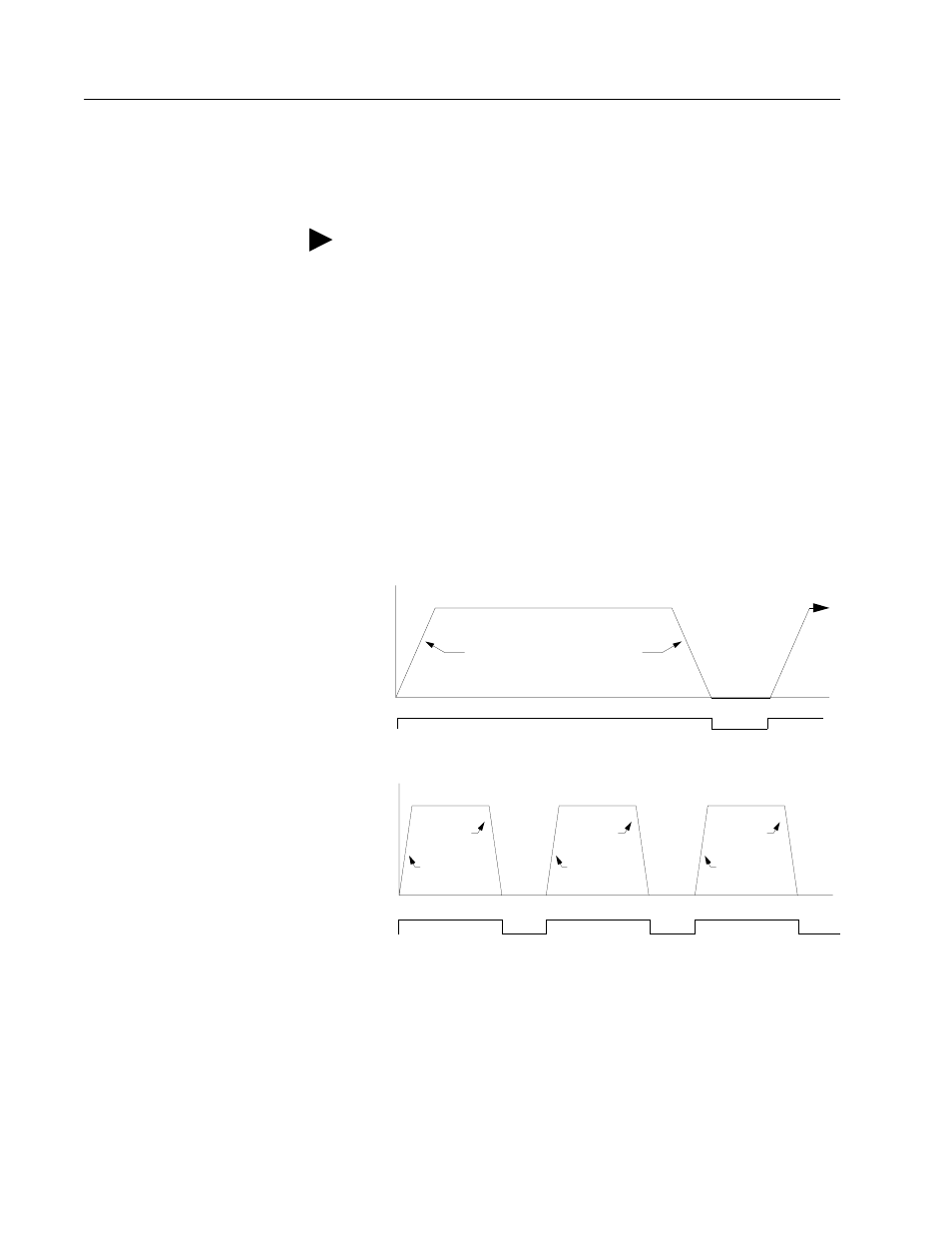

Figure 8.6
Velocity
Dwell
Defined
Deceleration
Defined
Acceleration
Defined Velocity
Outputs
INCREMENTAL INDEXING
Velocity
Dwell
Defined
Deceleration
Defined
Acceleration
Defined Velocity
INCREMENTAL INDEXING - BATCHED
Dwell
Defined
Deceleration
Defined
Acceleration
Defined Velocity
Dwell
Defined
Deceleration
Defined
Acceleration
Defined Velocity
Batch count = 3
Batch count = 1
In Motion
Outputs
In Motion
