9 Care and maintenance
S If the HSW is dirty, clean the exterior with a soft cloth.
If the HSW is defective or if the drive on the HSW−...−AP is defective:
S Send the HSW to Festo for repairs.

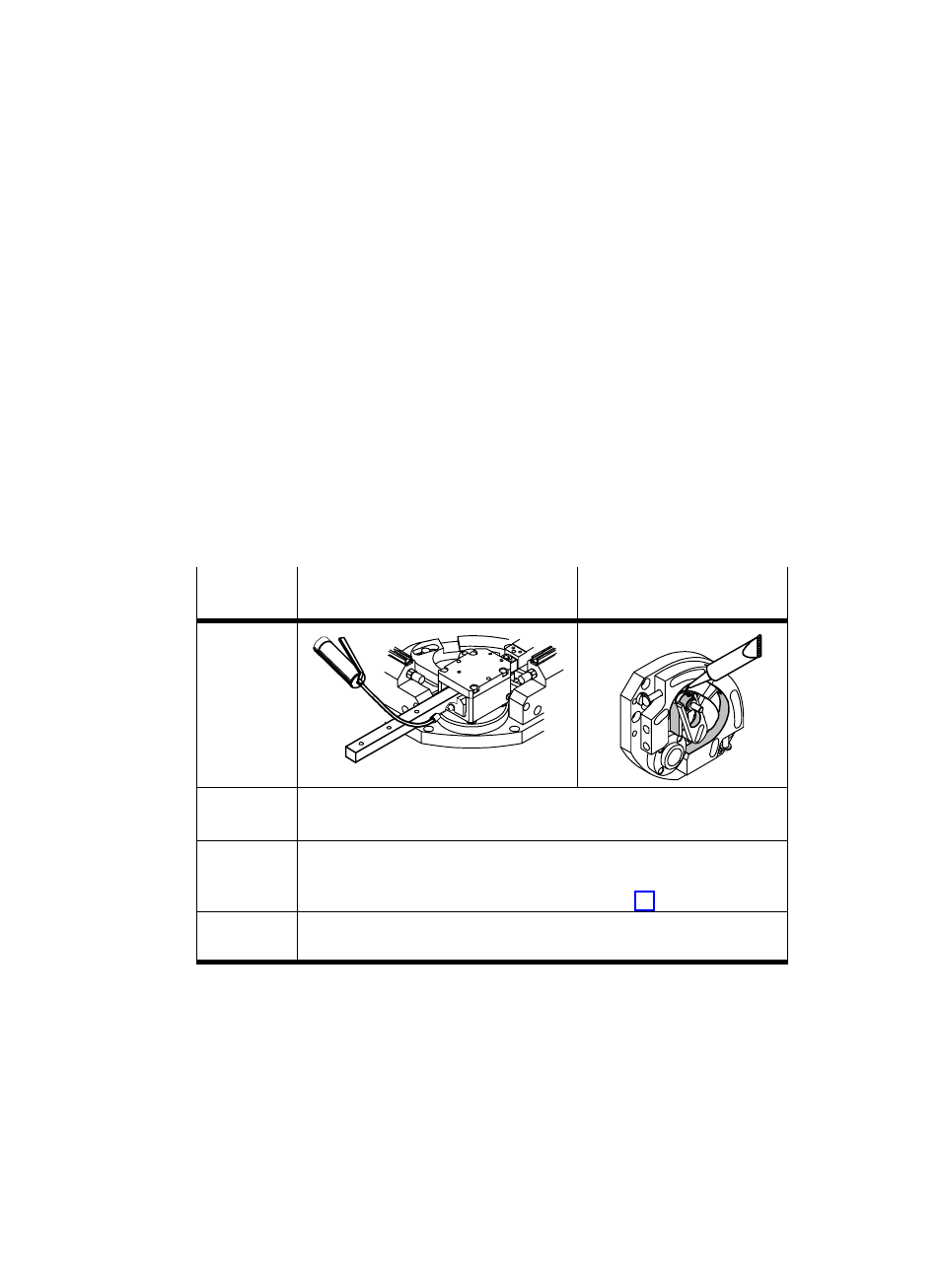

Lubrication
S Grease the surfaces of the roller bearing guide which do not have a layer of
grease (e.g. after cleaning) in accordance with the following table:
Component Guide rail (HSW−10/12)/
Nipple (HSW−16) Link track and swivel
lever
Lubrication
point
Lubrication
interval Every 10 million switching cycles
Lubrication
procedure Swing the moveable mass into the end positions
Ĉ by hand or
Ĉ with hex socket (square in HSW−10) on the drive (Fig. 17)
Lubricating
grease LUB−KC1
Fig. 28
