HSW−...−AP/A S
Festo HSW−...−AP/AS 0812b English
40
Mechanical installation
The HSW is supplied ready for fitting.
S If necessary, remove the protective cover before fitting.
S Make sure that after fastening there is sufficient space for fitting the
components.
S First fit the add−on components, and for HSW−...−AS the external drive.
S Make sure that the fastening surface can support the weight of the HSW
S Fit the HSW only onto a flat fixed surface.
S Select one of the following fastening methods:

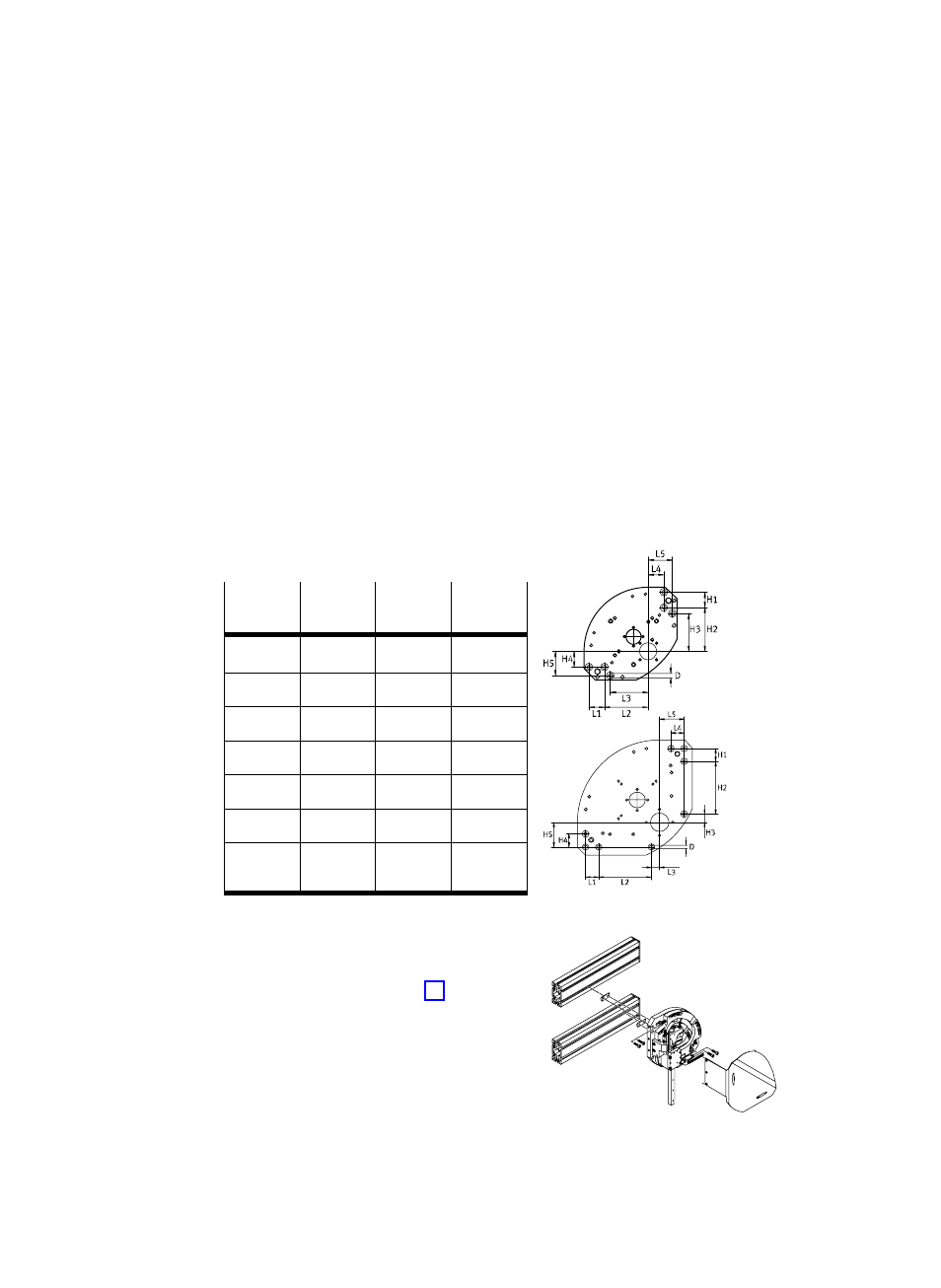

ć Direct fastening via the through holes
and centring sleeves in the sub−base.
[mm] HSW−
10−... HSW−
12−... HSW−
16−...
H1 = L1 20 20 20
H2 = L2 56.5 80 100
H3 = L3 49 12.5 12
H4 = L4 20 20 20
H5 = L5 31 37.5 50
Ø D 5.5 5.5 5.5
Number
of screws Min. 2 Min. 4 Min. 4
Fig. 7
ć Fastening to the rear of the sub−base
with slot nuts HMBN−8 to profile
columns HMBS (example: Fig. 8).
Fig. 6
Fig. 8
