HSW−...−AP/A S
Festo HSW−...−AP/AS 0812b English
35

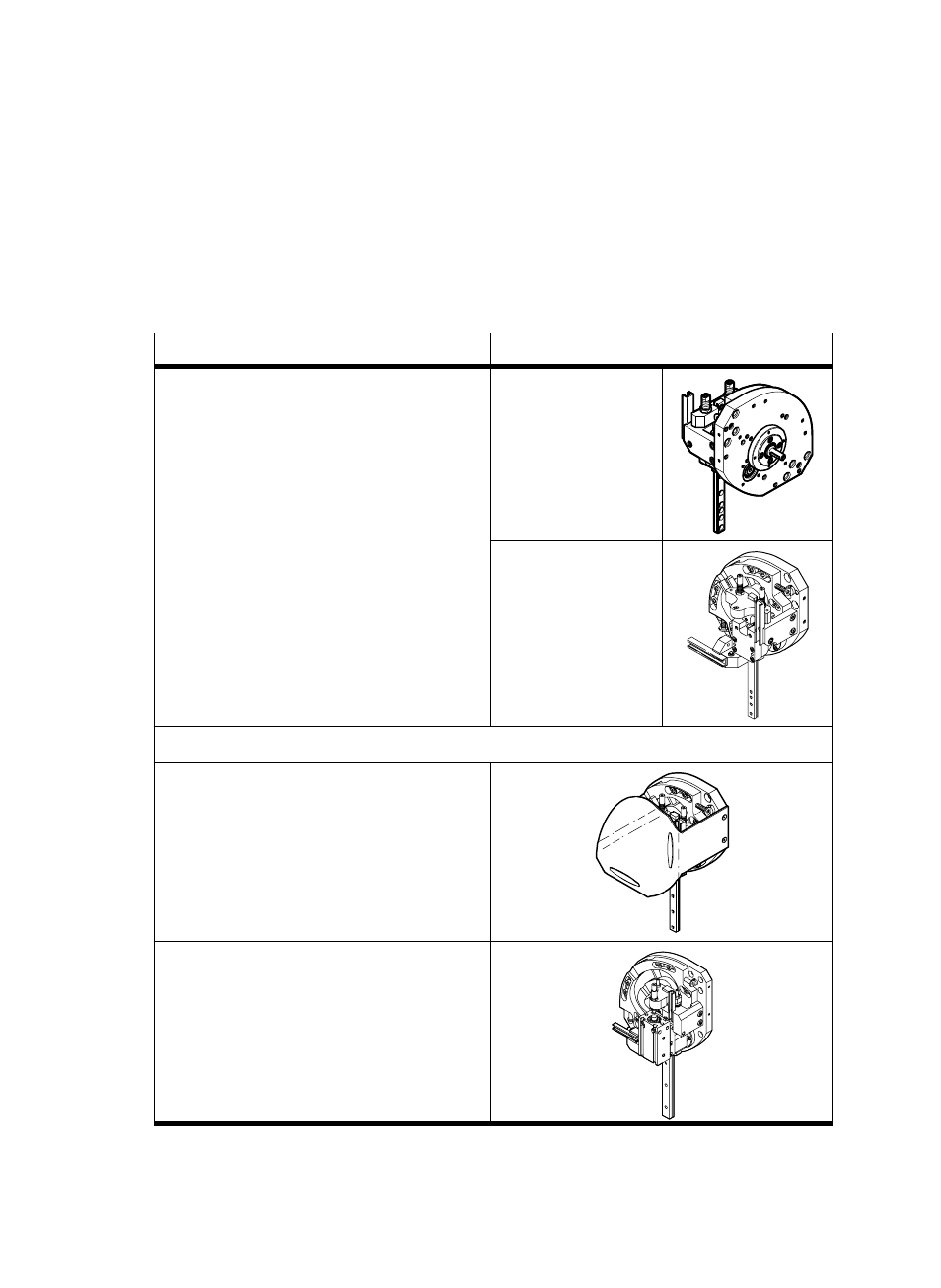

2 Product overview
Basic design Variants
HSW−10, HSW−12, HSW−16
The handling module is supplied as standard in
sizes 10, 12, 16 ready fitted with the following
function elements:
Ĉ Sub−base with variable fitting and fastening
possibilities aJ
Ĉ 2 adjustable guide links for path control via
roller bearing guide 3
Ĉ 1 linear guide 6
HSW−...−AS
Handling module
without drive
Ĉ 1 linear guide 6
Ĉ 1 pivot bearing
Ĉ 2 stops in the end positions, each with a
shock absorber (in HSW−...−AP) or rubber
buffer (in HSW−...−AS)
1āā/ā9 and a fastening
rail for proximity switch 5
HSW−...−AP
Handling module with
swivel module DSM
(double−acting,
pneumatic)
Options
HSW−...−SD
Handling module with protective cover.
The SD" design is recommended for stand−
alone mode.
HSW−...−AW
Handling module with cylinder BAW−HSW (also
see chapter Accessories") for pushing the
swivel lever back to a waiting position
Fig. 2
