HSW−...−AP/A S
Festo HSW−...−AP/AS 0812b English
41

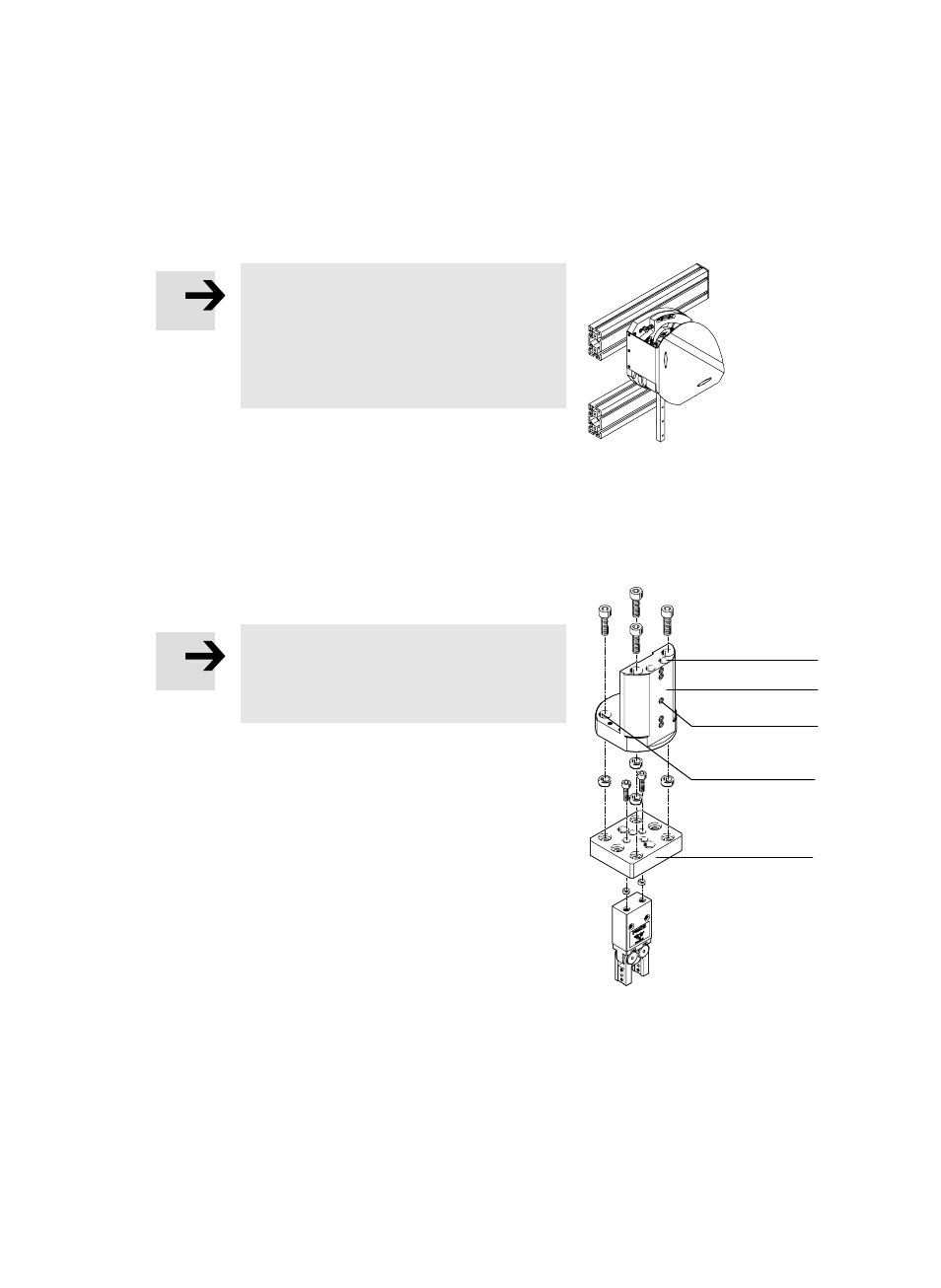

Please note
S Note that two profile columns are
necessary for stable fastening of the
HSW−16.
S Place the HSW so that you can easily
reach the operating parts.
S Please make sure of the following:
ć tension−free fitting.
ć sufficient space for connecting the
supply cables and tubing.
S Tighten the fastening screws evenly.
Fitting the work load
Please note
S Take into account that the permissible
work load is reduced by the mass of the
add−on components (e.g. adapter kits).
Fitting the add−on components:
S Use the adapter kit HAPG−69...72 with:
ć Universal adapter for the relevant size
of HSW (B).
ć Two channels for the tubing bearing
(A) and the hole for the cable binder
holder (C).
The standard hole pattern of the universal
adapter (D) forms the interface to
selected Festo products, e.g. grippers.
S Check to see if additional fastening
elements and adapter kits are necessary (E).
An overview of this can be found in the sales documentation for the HSW.
Fig. 9
Fig. 10
(A)
(B)
(C)
(D)
(E)
