Commissioning test run

1. Tighten the two upstream one−way flow

control valves:

ć at first completely
ć then loosen approximately one turn.

2. Make sure that the operating conditions

lie within the permitted ranges.

Please note
The permitted kinetic impact force at the
end stop applies for certain mass−speed
combinations. It must not be exceeded.

S Make sure that the permitted values for

the positioning time as a factor of the
work load are observed (chapter
Characteristic curves").

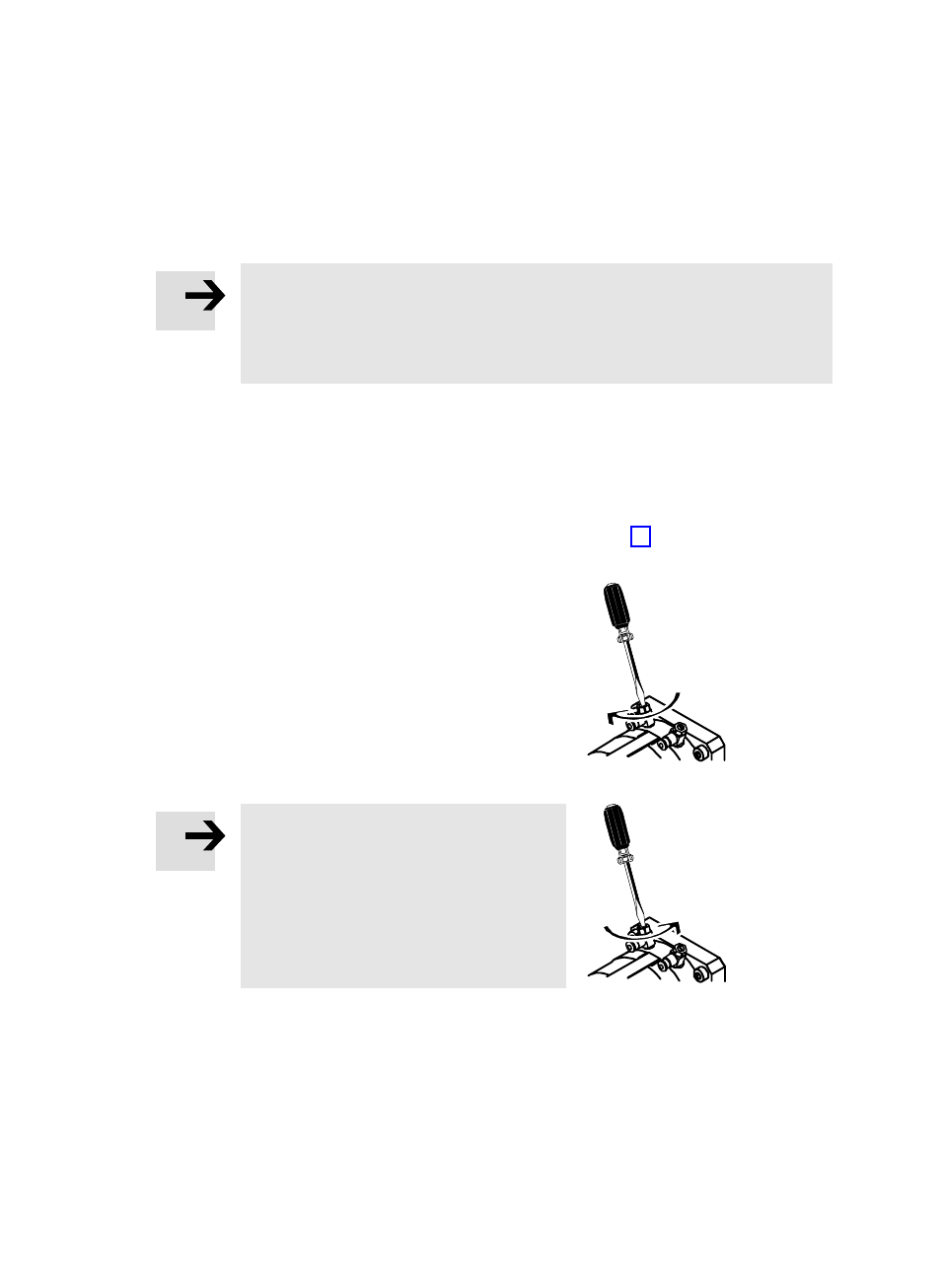

Fig. 23
